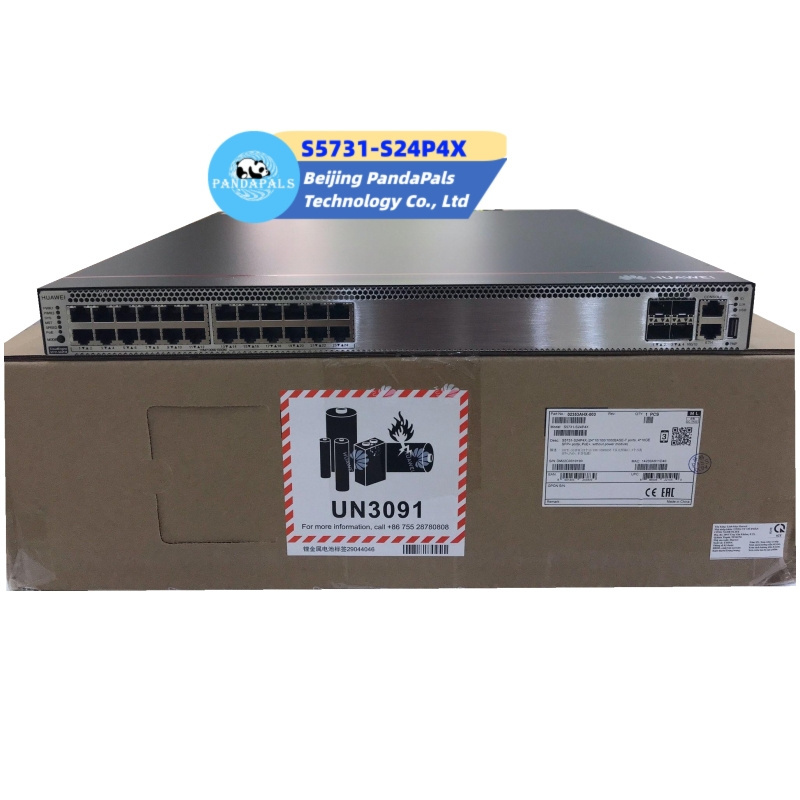

Original New Huawei S5731 S5731-S24P4X 24 port poe network switch

Original New Huawei S5731 S5731-S24P4X 24 port poe network switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1102

≥10 Pieces

US $1056

≥20 Pieces

US $976

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Huawei

Model Number:: S5731-S24P4X

Place of Origin:: Beijing, China

Product name:: network Switch

Part Number:: S5731-S24P4X

Forwarding performance:: 96 Mpps

Switching capacity:: 128 Gbps/672 Gbps

Chassis height:: 1 U

Warranty:: 1year

Quick Details

Transmission Rate:: 10/100/1000Mbps

Communication Mode:: Full-Duplex & Half-Duplex

Switch Capacity:: 128 Gbps/672 Gbps

Brand Name:: Huawei

Model Number:: S5731-S24P4X

Place of Origin:: Beijing, China

Product name:: network Switch

Part Number:: S5731-S24P4X

Forwarding performance:: 96 Mpps

Switching capacity:: 128 Gbps/672 Gbps

Chassis height:: 1 U

Warranty:: 1year

Products Description

S5731-S24P4X Overview:

The Huawei CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.

The Huawei S5731-S series switches provides these features and highlights :

* Powerful Service Processing Capability and Multiple Security Control Mechanisms
* Easy O&M
* Multiple Reliability Mechanisms
* Mature IPv6 Technologies
* Intelligent Stack (iStack)
* VXLAN Features
* PoE Power Supply
* Intelligent O&M
* Intelligent Upgrade
* Big Data Security Collaboration
* OPS

S5731-S24P4X Specification
Fixed port	24 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Chassis height	1 U
Chassis weight (including packaging)	8.6 kg
Power supply type	1000 W PoE AC (pluggable)
Rated voltage range	AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	• AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)
Maximum power consumption	• 121 W (without PD) • 977 W (with PD, PD power consumption of 720 W)
Noise	• Under normal temperature (sound power): 62.3dB (A) • Under high temperature (sound power): 71.8dB (A) • Under normal temperature (sound pressure): 52.8dB (A)
Operating temperature	• 0-1800 m altitude: -5°C to +45°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature	-40℃ to +70℃
Relative humidity	5% to 95% (non-condensing)
Surge protection specification (service port)	Common mode: ±6 kV
Surge protection specification (power port)	• Differential mode: ±6 kV • Common mode: ±6 kV
Heat dissipation	Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
Service Features
MAC address table	IEEE 802.1d standards compliance 32K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN	4094 VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping
IP routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy Up to 16K FIBv4 entries Up to 8K FIBv4 entries
VXLAN*	VXLAN L2 and L3 gateways Centralized and distributed gateway BGP-EVPN Configured through the NETCONF protocol
iPCA	Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio Collection of statistics on the number of lost packets and packet loss ratio at network and device levels
TWAMP	Two-way IP link performance measurement Measurement on two-way packet delay, one-way packet loss rate, and one-way packet jitter
Management and maintenance	iStack, with up to 9 member switches in a stack SNMP v1/v2c/v3 RMON Smart Application Control (SAC) Web-based NMS System logs and alarms of different levels GVRP MUX VLAN NetStream Intelligent O&M
