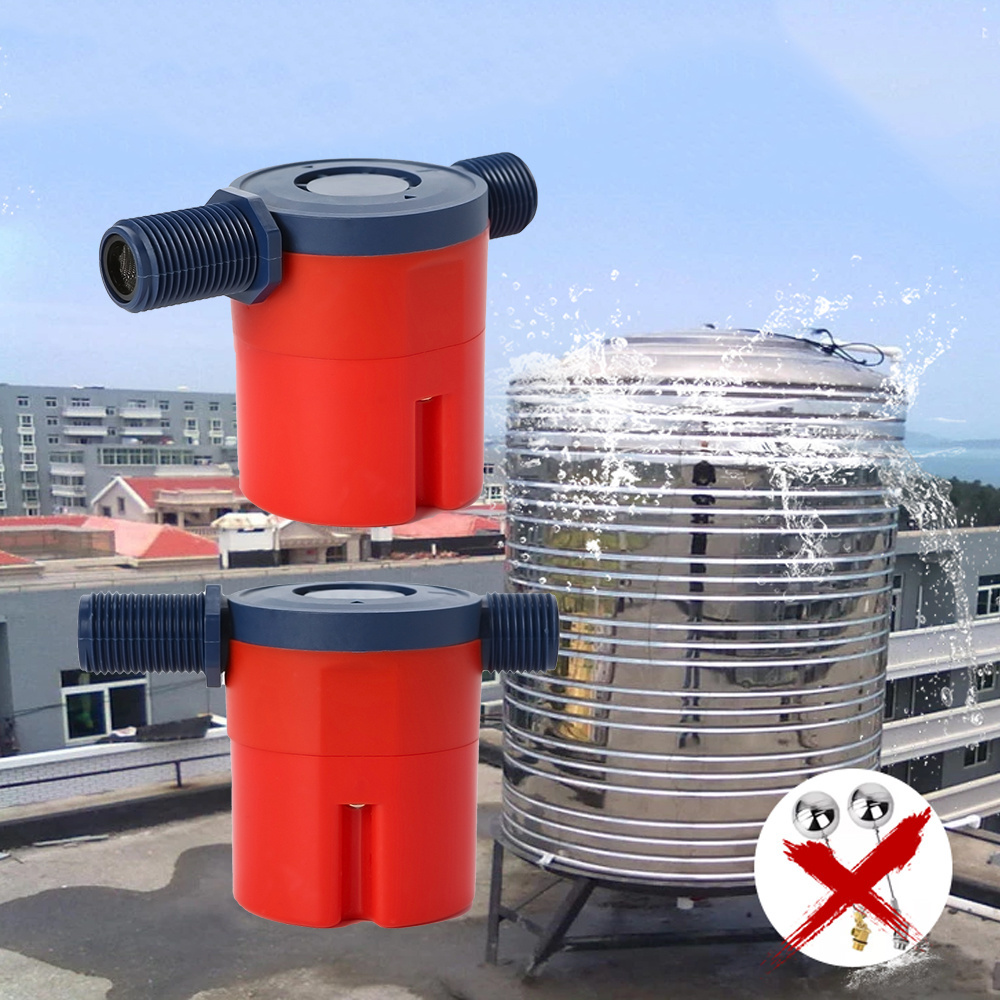

Professional water level control valve water pond float valves
Professional water level control valve water pond float valves
Professional water level control valve water pond float valves
Professional water level control valve water pond float valves
Professional water level control valve water pond float valves
Professional water level control valve water pond float valves
Professional water level control valve water pond float valves
Professional water level control valve water pond float valves

Professional water level control valve water pond float valves

FOB Reference Price: Get Latest Price
≥10 Pieces
US $1.35
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
WEIER
Item Name:
water level control valve
Materia:
Nylon
Work pressure:
0.01MPa~1.2MPa
Work Temperature:
≤85℃
Life:
5-10 Years
Colour:
Customized
Thread:
Male
Water Pressure:
1.5-174PSI
Size:
1/2 ", 3/4 ", 1 "
Packaging:
As normally or customer ideas

Quick Details

Port Size:
1/2"
Place of Origin:
Zhejiang, China
Model Number:
DF15
Brand Name:
WEIER
Item Name:
water level control valve
Materia:
Nylon
Work pressure:
0.01MPa~1.2MPa
Work Temperature:
≤85℃
Life:
5-10 Years
Colour:
Customized
Thread:
Male
Water Pressure:
1.5-174PSI
Size:
1/2 ", 3/4 ", 1 "
Packaging:
As normally or customer ideas
Banner
Why Choose This
How It Works

Working principle:

When the water level rises up to water limit line which below water level control valve, our valve will stop supplying water at once. When the water level falls down again, our valve will start to supply water automatically.
After installation, the float must be vertical. If you need to install from the top, you need an elbow to connect the float valve and the inlet line. First, fix the water inlet pipeline on a horizontal surface, and then connect the automatic water level control valve to the water inlet according to the standard. The main water inlet should be aligned with the normal diameter of the control valve. When in use, the shut-off valve should be fully opened. If two valves are installed in the same tank, they should be kept in the same level. Before installation, please clean the impurities in the pipeline to prevent blockage. If the water quality is not good, the valve needs to be properly maintained. If the user finds that the time for adding water becomes longer, he can upload the water inlet and rinse.
Products Description
Type
Water Level Control Valve
Customized Support
OEM, ODM, OBM
Brand Name
WEIER
Application
General
Temperature of Media
Normal Temperature
Power
Hydraulic
Media
Water
Certificate
CE
Material
Environmental Nylon
Work Pressure
0.01MPa~1.2MPa
Life
5-10 Years
Warranty
3 Years
Colour
Custom
Connection
Male Thread
Water Pressure
1.5-174PSI
Size
1/2'', 3/4'' , 1''
