Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Hongfa
-
Voltage:
-
Local Voltage
-
Dimension(L*W*H):
-
680*530(mm)
-
Warranty of core components:
-
1 year
-
Weight (KG):
-
2000 kg
-
Product Name:
-
automatic cement block machinery
-
Pallet size:
-
680*530(mm)
-
Weight:
-
2000KG
-
Cycle Time:
-
20 seconds
-
Motors Power:
-
14.25KW
-
Block Type:
-
Interlocks brick,color brick,hollow block
-
Applied Products:
-
paving /solid/hollow/cellular masonry products,etc.
-
Color:
-
Changable
-
Raw material:
-
crushed stone, sand, cement, dust and coal fly ash, cinder
-
other name:
-
bricks making machinery on canton fair
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, machines for bricks making
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
2500 pcs/8hours, 1920 pcs/8hours, 1500 pcs/8hours, 3000 pcs/8hours, 3200 pcs/8hours, 1000 pcs/8hours, 3500-22400 Pieces/day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Hongfa
-
Voltage:
-
Local Voltage
-
Dimension(L*W*H):
-
680*530(mm)
-
Warranty of core components:
-
1 year
-
Weight (KG):
-
2000 kg
-
Product Name:
-
automatic cement block machinery
-
Pallet size:
-
680*530(mm)
-
Weight:
-
2000KG
-
Cycle Time:
-
20 seconds
-
Motors Power:
-
14.25KW
-
Block Type:
-
Interlocks brick,color brick,hollow block
-
Applied Products:
-
paving /solid/hollow/cellular masonry products,etc.
-
Color:
-
Changable
-
Raw material:
-
crushed stone, sand, cement, dust and coal fly ash, cinder
-
other name:
-
bricks making machinery on canton fair
Product Description

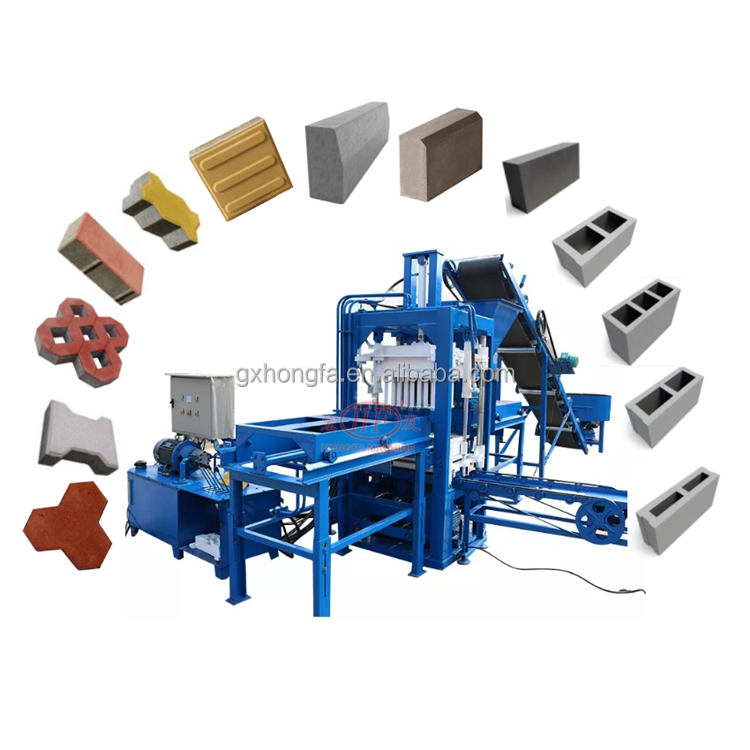

Automatic cement block brick making machinery on canton fair
1.Brief introduction
This color paver forming machine is a practical machine that simple in structure, artistic in figure. Especially suitable to the production of the paving brick,bread brick , it can produce various kinds of paving bricks,roads bricks etc.
2.Control system
Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trained one to the operator.
Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
3. Main Technical Specifications
| Main vibration form | Platform vibration | |||||
| Cycle Time | 20 seconds | |||||
| Overall weight | 2000kg | |||||
| Motors Power | 14.25KW | |||||
| Pallet Size | 680*530(mm) | |||||
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes | |||||
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. | |||||
4.Productivity of QTF3-20 Brick Making Machine
| Samples | Size mm |
Cycle
molding |
QTY
/Mould |
Per hour | Per 8hours | |
| Color brick | 197*97*80 | 25-30s | 12 | 1440-1728pcs | 11520-13824pcs | |
| Interlock brick | 227*137*60 | 20-25s | 8 | 1150~1440pcs | 9200-11520pcs | |
| Hollow Block | 400*200*200 | 20-25s | 3 | 432-540pcs | 3456-4320pcs | |
Brick Making Machine can make different kinds of hollow blocks,solid bricks,curbstone,paving bricks,interlock bricks,ect, by changing the mold accordingly:
+
Packaging & Shipping
Packing: Naked packing or stretch film packing or according to customers' requirements
Delivery time: Within 30 days after receipt of deposit and moulds confirmation from buyer
Delivery time: Within 30 days after receipt of deposit and moulds confirmation from buyer
Our Services
1.Guarantee for one year and after sale service for whole life.To offer free design,free technology support and free machine maintenance trainning.
2.We will provide you with a set of spare parts for free!
