Quick Details
-
Product Weight（kg）:
-
1.5
-
Luminous Flux(lm):
-
4500
-
Optical Attenuation(%):
-
5
-
Power Dissipation:
-
30w
-
Viewing Angle(°):
-
90
-
Color Temperature:
-
2000-7000k
-
Operating Temperature(℃):
-
-40 - 50
-
Storage Temperature(℃):
-
-30 - 80
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sunshineopto
-
Product name:
-
30w 60w Led Street light Module Lens
-
Main parts:
-
30w Lens +gasket+PCB+LED+heat sink+screws
-
Lens Material:
-
Optical grade PC
-
Lens Beam Angle:
-
120 degree
-
Lens size:
-
250x74mm
-
LED:
-
XPE/XPG/XTE leds
-
Heat sink:
-
278x74x54mm,thickness:8mm
-
Certificate:
-
ROHS
-
PCB Size:
-
228X53x1.6mm
-
Keywords:
-
led module street light 30w 60w
Quick Details
-
Color Temperature(CCT):
-
5000K (Daylight)
-
Warranty(Year):
-
2-Year
-
Luminous Efficacy(lm/w):
-
150
-
Product Weight（kg）:
-
1.5
-
Luminous Flux(lm):
-
4500
-
Optical Attenuation(%):
-
5
-
Power Dissipation:
-
30w
-
Viewing Angle(°):
-
90
-
Color Temperature:
-
2000-7000k
-
Operating Temperature(℃):
-
-40 - 50
-
Storage Temperature(℃):
-
-30 - 80
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sunshineopto
-
Product name:
-
30w 60w Led Street light Module Lens
-
Main parts:
-
30w Lens +gasket+PCB+LED+heat sink+screws
-
Lens Material:
-
Optical grade PC
-
Lens Beam Angle:
-
120 degree
-
Lens size:
-
250x74mm
-
LED:
-
XPE/XPG/XTE leds
-
Heat sink:
-
278x74x54mm,thickness:8mm
-
Certificate:
-
ROHS
-
PCB Size:
-
228X53x1.6mm
-
Keywords:
-
led module street light 30w 60w

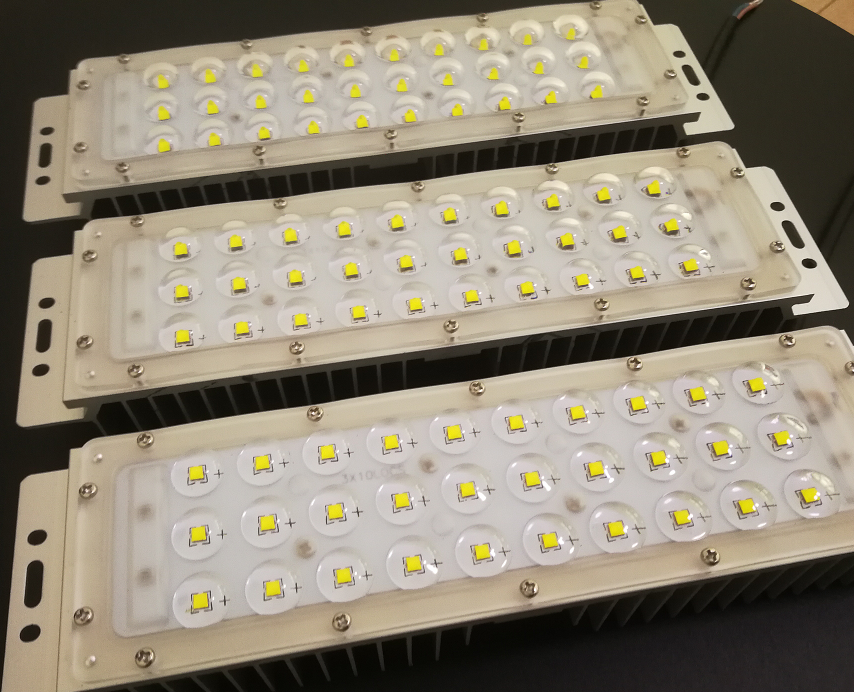

30w 60W 120 Degree Led Street Light Module Lens Led Parking Lot Lighting Retrofit
Light distribution for 120degree :
|
Place of Origin |
Shenzhen,China |
|
Brand Name |
Sunshineopto |
|
Model No |
SUN-SL3X10-CR120 |
|
Main parts |
30W Lens+ Silicone gasket + AL PCB mounting 3535 leds+Heat Sink |
|
Lens Material |
PC Optical |
|
Lens size |
250x74mm |
|
Lens Beam Angle |
120degree |
|
Match Led |
3535 XPE/XPG/XTE leds |
|
PCB Size |
228x53x1.6mm |
|
PCB Circuit |
10 series 3 parallel |
|
Heat Sink Size |
278x74x54mm thickness 8mm |
|
Certificate |
ROHS, |
|
Quality guarantee |
If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
|
Main market |
Europe, South America,North America, Asia |
About SUN-SL3X10-CR120 :
1.This SKD 30W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 60W,90W,120W and so on .
2.It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
3.Industry-leading thermal management utilizing technology
4.Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
5.The LED retrofit kits contain no any mercury or lead.
6.Does not produce UV rays that harm people’s eyes.
7.Directional light means no light pollution, dark sky compliance.
8. Optic lenses are available for projects that need smaller beam angles, like70x155degre,87x134degree,90x90degree,90degree,120degree, 78x132degree etc.
Competitive Advantage:
1).Using high quality 3535 led XTE
2).CE driver, very easy for repair/replacement
3).Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4).Higher lumen compared to similar models of others
5).Positive cooling technology
6).Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7).Industry-leading thermal management utilizing technology
8).Top quality with warranty of 2 years warranty
