Quick Details
-
Description:
-
Spoke-type Load Cell, Soke Type Load Cell
-
Model Number:
-
SOPLF-102
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
SOP
-
Theory:
-
Resistance, Resistance Sensor
-
Output:
-
analog
-
Material:
-
Alloy steel
-
Capacity:
-
50kg 100kg 200kg 300kg 500kg 800kg
-
Output sensitivity:
-
2.0 ± 0.2mV/V
-
Comprehensive Error:
-
±0.05%FS
-
Safe overload:
-
150 %
-
Zero balance:
-
1.0 %FS
-
recommended voltage:
-
5 ~ 15V
-
Insulation resistance:
-
≥5000 MΩ( 100VDC )
-
Operating temperature:
-
-20 ~ +80°C
Quick Details
-
Usage:
-
Load cell
-
Series:
-
Spoke type Load Cell
-
Mounting Type:
-
Free
-
Description:
-
Spoke-type Load Cell, Soke Type Load Cell
-
Model Number:
-
SOPLF-102
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
SOP
-
Theory:
-
Resistance, Resistance Sensor
-
Output:
-
analog
-
Material:
-
Alloy steel
-
Capacity:
-
50kg 100kg 200kg 300kg 500kg 800kg
-
Output sensitivity:
-
2.0 ± 0.2mV/V
-
Comprehensive Error:
-
±0.05%FS
-
Safe overload:
-
150 %
-
Zero balance:
-
1.0 %FS
-
recommended voltage:
-
5 ~ 15V
-
Insulation resistance:
-
≥5000 MΩ( 100VDC )
-
Operating temperature:
-
-20 ~ +80°C
Product Description

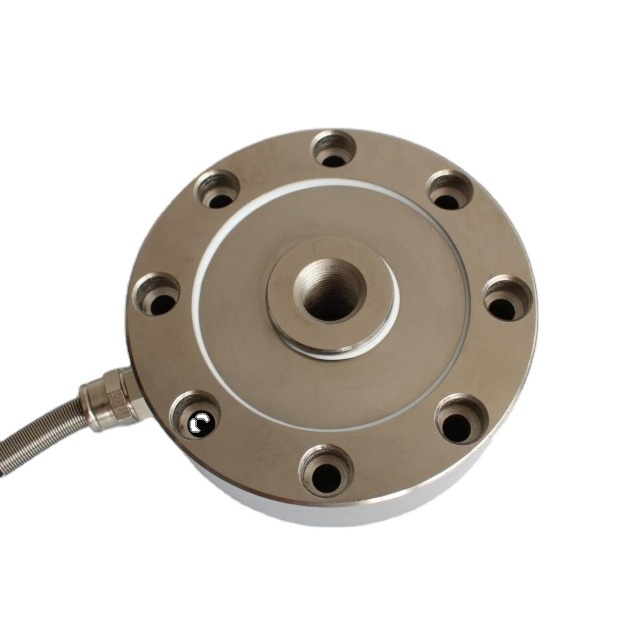

Spoke-type Load Cell Pressure Weight Sensor 50kg 100kg 200kg 300kg 500kg 800kg
This product is made of all Jindong District stainless steel, rubber sealed, nickel plated surface, with steel ball self aligning, using four-core shielded cable, specifications 5-12000mm, suitable for automotive track, hopper weighing and other electronic weighing equipment.
Product Features
Made of high quality
Alloy steel/ stainless steel
, strong resistance to mechanical fatigue, good hardenability, nickel plating on the surface to resist corrosion.
Compact structure, high comprehensive precision, long-term stability.
Features high precision, high sensitivity, high stability, and durable in use.
Used in reactors, hot and cold liquid hydraulic presses, electronic universal testing machines, various weighing instruments, etc.
Suitable for industrial force measurement direction for automated assembly and hopper scale.
Specification
|
Capacity
|
0-500T
|
|
Rated Output
|
2.0±10%mV/V
|
|
Zero Balance
|
±1% F.S.
|
|
Non-linearity
|
0.05%F.S.
|
|
Hysteresis
|
0.05%F.S.
|
|
Repeatability
|
0.03%F.S.
|
|
Creep(30min)
|
0.03%F.S.
|
|
Temp.effect on output
|
0.03% F.S. / 10ºC
|
|
Temp.effect on zero
|
0.03% F.S. / 10ºC
|
|
Material
|
Alloy steel
|
|
Operating Voltage Range
|
5-15V
|
|
Operating Temp Range
|
-20-80℃
|
|
Safe overload
|
150%
|
|
Maximum Overload
|
200%
|
|
Cable size
|
Φ5*:3m
|
|
Cable ultimate pull
|
10kg
|
Packing & Delivery
♦ Packing:
packing materials are eco-friendly and really protect your product well. Every item has their own independent packing
with carton box
♦ Delivery:
A wide range of options : Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping
