Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Model Number:
-
ST-400A
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
16450*5300*3100mm
-
Weight:
-
18000 KG
-
Product name:
-
automatic sheet feeding paper shopping bag making machine with handles
-
Max.sheet(L*W):
-
1200*600 mm
-
Min.sheet(L*W):
-
620*350mm
-
Sheet Weight:
-
120g-190g
-
Bag Width:
-
220-450mm
-
Bottom Width:
-
80-170mm
-
Bag length:
-
250-490mm
-
Top turn in width:
-
40-60mm
-
Handle patch length:
-
188.5mm
-
Handle patch width:
-
30-50mm
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Paper
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Model Number:
-
ST-400A
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
16450*5300*3100mm
-
Weight:
-
18000 KG
-
Product name:
-
automatic sheet feeding paper shopping bag making machine with handles
-
Max.sheet(L*W):
-
1200*600 mm
-
Min.sheet(L*W):
-
620*350mm
-
Sheet Weight:
-
120g-190g
-
Bag Width:
-
220-450mm
-
Bottom Width:
-
80-170mm
-
Bag length:
-
250-490mm
-
Top turn in width:
-
40-60mm
-
Handle patch length:
-
188.5mm
-
Handle patch width:
-
30-50mm

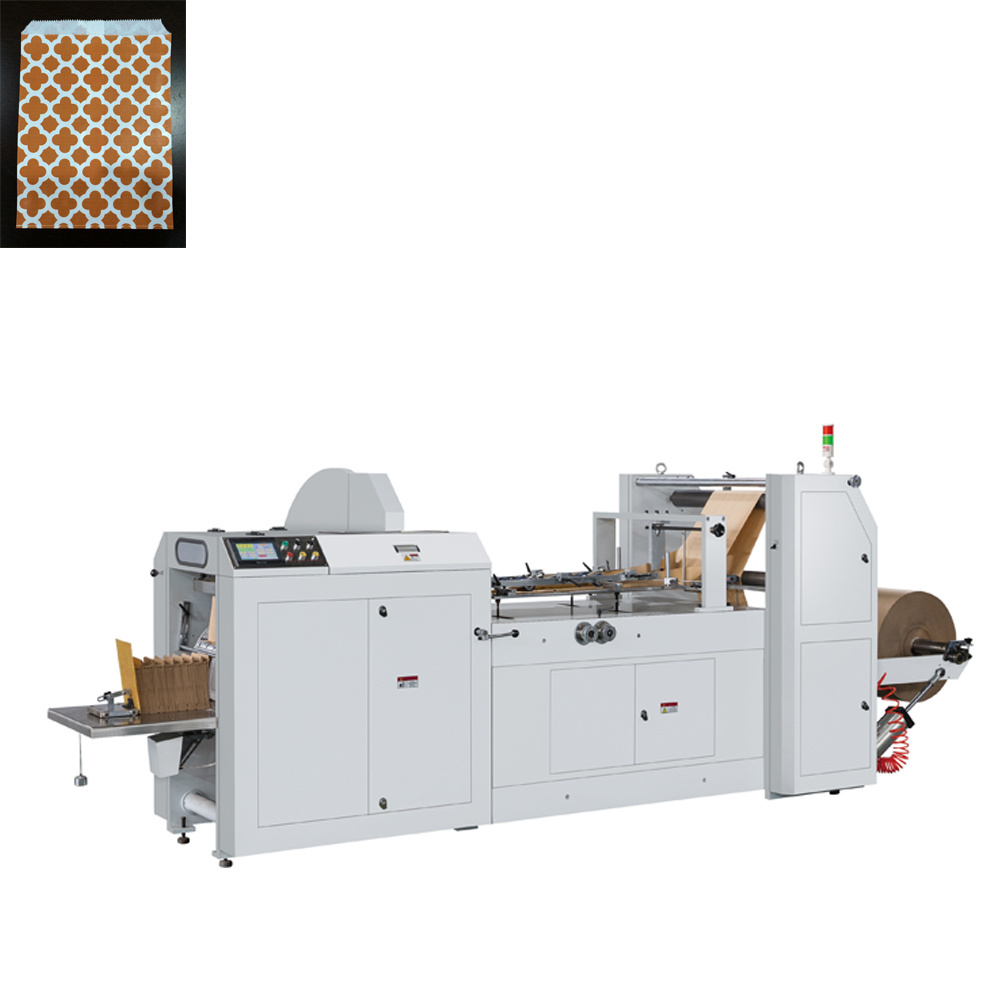

Full automatic sheet feeding paper shopping bag making machine with handles
Price introduction of Full automatic sheet feeding paper shopping bag making machine with handles
This machine forming the paper bag in one process from printed or unprinted roll paper , side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag formation at a stroke. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald
Specification of Full automatic sheet feeding paper shopping bag making machine with handles
Type : ST-400G
(C)Cutting Length : 150-460 mm
(L)Bag Length : 140-450 mm
(W)Bag Width : 70-280 mm
(H)Gusset Highly : 0-120 mm
(P)Standard flap : 12-20 mm
Max. Speed : 500 pcs/min
Max. reel weight : 400 Kg
Paper Roll Width : 220-700 mm
Max.Roll Diameter : 1100 mm
Reel inner diameter : 76 mm
Paper specification : 30-80 gsm
Web edge control system : Manual adjustment
Web tension control system : Belt friction
Air pressure : Min. 0.12cm, 0.4-1Mpa
Driven motor : Asynchronous motor
Electric : 380V, 50Hz, 3 phase
Power : 4KW
Weight : 2800Kg
Overall dimension : 4100*1700*1600mm
Detailed pictures:
Bottom/V Bottom Bag Machine
Paper Bag Machine With Flexo Printing Machine
| Packaging | Normal standard package |
| Shipping by express | About 7-10 days |
| Shipping by sea | About 25-35 days |
| Delivery time | 50 days after confirm the order |
