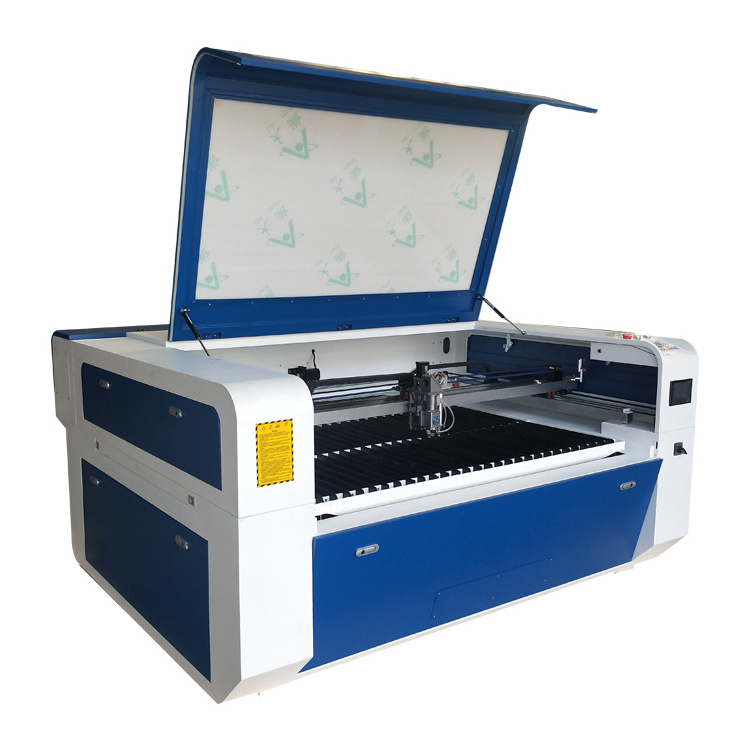

4030 mixed laser cutting machine mainly for the nonmetal materails and stainless steel .For the stone and glass only can engrave and can not cut . The machine can cut the stainless steel,can not for other metal.The stainless can up to 3mm with the 30w laser power.The specific thickness that can be cut varies depending on the material.
- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
pratt
-
Weight (KG):
-
150 KG
-
Core Components:
-
LASER TUBE
-
Laser power:
-
20w/30w/40w/50w/80w/100w
-
Control system:
-
Ruida Control System
-
Working area:
-
400mm*300mm
-
Cutting materials:
-
Acrylic Wood Mdf Plywood Plactical
-
Driving system:
-
Leadshine Stepper Driver
-
Cooling system:
-
Water Chiller Cooling System
-
tube brand:
-
reci yongli EFR
-
Power supply:
-
220v50\60HZ
Quick Details
-
Engraving Area:
-
400mm*300mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-350mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
pratt
-
Weight (KG):
-
150 KG
-
Core Components:
-
LASER TUBE
-
Laser power:
-
20w/30w/40w/50w/80w/100w
-
Control system:
-
Ruida Control System
-
Working area:
-
400mm*300mm
-
Cutting materials:
-
Acrylic Wood Mdf Plywood Plactical
-
Driving system:
-
Leadshine Stepper Driver
-
Cooling system:
-
Water Chiller Cooling System
-
tube brand:
-
reci yongli EFR
-
Power supply:
-
220v50\60HZ
Hot Selling
4030 Co2 metal and nonmetal laser cutting machine 30W 40W 50W
Product Feature
1 For cutting / engraving . ( This machine stainless steel , and can also cut and engrave max acrylic, wood,polywood , leather and MDF etc .)
2 Economic, cost-effective multi-functional laser cutting machine.
3 Non-contact metal cutting auto-following device, to cut all kinds of materials with less investment.
4 Equipped with the RECI/YONGLI laser tube, longer laser life and more stable performance.
5 Ruida or Leetro control system, PMI guide rails and high quality belt transmission.
6 The USB interface supports data transmission for quick completion.
7 Lens and mirror imported from Singapore.
8 Transmit files directly from CorelDraw, AutoCAD, USB 2.0 interace output with high speed supports offline operation.
9 Summary of operation of the power cut-off point during power-up.
10 Lift table, rotating device, dual head function for option
Product Paramenters
|
Model
|
Co2 Laser metal and nonmetal Cutting Machine
|
|
Working Area
|
300mm*400mm
|
|
Working Table
|
Blade or Honeycomb
|
|
Working speed
|
60mm/s
|
|
Laser Type
|
Sealed co2 laser tube
|
|
Laser Power
|
20W/40W/50W
|
|
Positioning Accuracy
|
±0.03mm(with red dot)
|
|
Image Format Supported
|
BMP,PLT,DST,AI,DXF,etc
|
|
Cooling System
|
Constant temperature water cooling and protecting system
|
|
Power Supply
|
AC220±10%,50-60Hz
|
|
Working Temperature
|
0-45℃
|
|
Working Humidity
|
5%-95%
|
Details Images
RECI CO2 Laser Tube
Adopt the new high-efficiency CO2 laser tube of RECI, the 100W CO2 laser tube can reach a peak of 122W. The laser beam is more stable and the life of the laser tube can exceed 10,000 hours.
Taiwan HIWIN Guide Slider
Taiwan Hiwin square guide rails are made of high-strength special steel to ensure that the laser machine does not deform continuously for a long time. Improve laser engraving and cutting accuracy and extend the working life of the machine.
Control Panel
Easy To Operate, Intuitive Control Panel.
Adjustable Laser Head
The aluminum alloy adjustable laser head is lighter than other metal laser heads, which can minimize the inertia error when the laser head moves." The structure is simple, the operation is convenient, the laser device is stable,and the maintenance cost is low.
Power Supply System
The power supply system of the whole machine is strictly in accordance with international standards. Different control power signal lines adopt separate routing design, and the whole is clean and tidy, avoiding electromagnetic interference between various types of signal lines
Motor driver
Machine photos
Blade workingtable
water Chiller
laser head control card
control panel
laser cutting head
Sample
Why Choose Us
FAQ
1.How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?
What kind of materials mainly? Cutting/engraving, Max thickness for cutting?
How big working area you need?
2.How long can delivery the machine ?
Common machine can be delivered within 7-10 days. Customizable machine need 15-45 days.
3.If there is any technical help after we receive the machine?
Yes, we have perfect after-sale service team to supply technical support to our customers. Our technical can assist you to install machine and give you free training after you receive machine.
4.If there is some problems for some parts during warranty period, will your company repair or replace for me?
Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well, we will send new one to you within warranty time for free. PS: Not including the consumable parts and Man-made damage.
5.Will the machine will send to my door?
1)Usually for large size and heavy machine, we will quote CFR price. The best shipping way for the large and heavy goods is by sea or air. We ship the goods by sea for shipping free to your base seaport in your country ( Need you find broker help you to do customs clearance ).
2)For small size machine, we can quote price with DHL express cost. Then the machine can send to your door.
6.Give me reasons to chose your company ?
1)Professional factory with competitive price;
2)High quality control and perfect service: All of our machine are adopted top quality parts → Test machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check → buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine.
3)Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.
4)Strict implementation of after-sales warranty.
5)The important is that you will receive the Corresponding goods after you do payment.
