Quick Details
-
Lock Body size:
-
70.6mmx55.6mmx13.4mm
-
Weight with hook:
-
166g
-
Lock Material:
-
SPCC,Powder Metallurgy
-
Rated Voltage:
-
DC12V
-
Current:
-
2A
-
Max power:
-
24W
-
Work temperature:
-
-40℃ to +80℃
-
Salt spray testing:
-
≥48hours
-
Blackout interval:
-
>5sec
-
Usage:
-
Supermarket self-service cabinet,parcel cabinet,vending machine etc
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Longyuan
-
Model Number:
-
LY-8821
-
Lock Body size:
-
70.6mmx55.6mmx13.4mm
-
Weight with hook:
-
166g
-
Lock Material:
-
SPCC,Powder Metallurgy
-
Rated Voltage:
-
DC12V
-
Current:
-
2A
-
Max power:
-
24W
-
Work temperature:
-
-40℃ to +80℃
-
Salt spray testing:
-
≥48hours
-
Blackout interval:
-
>5sec
-
Usage:
-
Supermarket self-service cabinet,parcel cabinet,vending machine etc
Product Description
|
Product Name
|

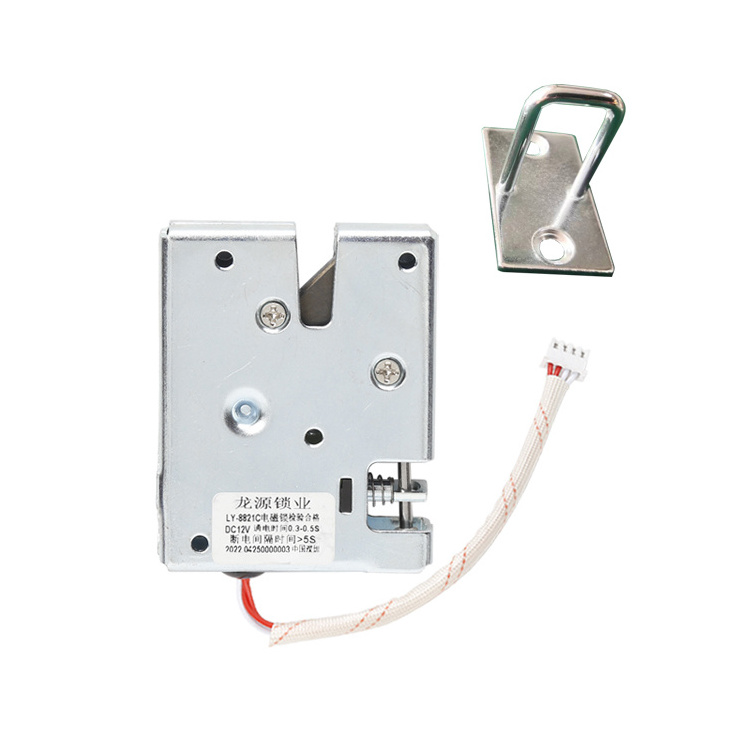

Electronic magnetic vending machine lock
|
|
|
Model
|
LY-8821C
|
|
|
Brand
|
Longyuan Lock
|
|
|
Size
|
70.6mmx55.6mmx13.4mm
|
|
|
Weight with lock hook
|
165g
|
|
|
Material of lock body
|
SPCC
|
|
|
Material of lock tongue
|
Powder Metallurgy
|
|
|
Surface treatment
|
Galvanized
|
|
|
Cable outer leakage length
|
170mm(accept customized)
|
|
|
Working voltage
|
DC12V (Voltage customized)
|
|
|
DC12V (Voltage customized)
|
2A
|
|
|
Min Unlock Voltage
|
9.5V
|
|
|
Maximum power
|
24W
|
|
|
Manner of working
|
Open after power on
|
|
|
Reaction time
|
0.3sec
|
|
|
Blackout interval
|
>5sec
|
|
|
Working temperature
|
-40℃ to +80℃
|
|
|
Working humidity
|
95%
|
|
|
Working life
|
more than 100,000 times
|
|
|
Sample
|
Available
|
|
|
OEM
|
Accepted
|
|
|
Signal detection/switch(open/close)
|
Open/ Close Feedback for option
|
|
|
Certification
|
CE,ISO9001, RoHS
|
|
|
Warranty
|
1year
|
|
|
TEST: Power on/off of power supply;Neutral salt spray;Insulation;DC resistance;Ejector rod elasticity;Door
force;VoltageTolerance;Overall lock Life;High temperature and humidity; Anti-vibration;Anti-shoke etc. |
|
|
|
Usage: Storage Cabinet,Letter News Paper Box, Smart Locker,File and Filing Cabinet,Drawer,Distribution Box, Wardrobe, Vending Machine,Bookcase, Tools Box,Deep-freeze Fresh Cabinet,Employee Locker,Checkout Counter, Safe Deposit Cabinet etc.
|
|
|
Service and strength
We are electromagnetic cabinet lock leader in Shenzhen China, we have our own design and research team, we can customized product upon your actual demands. We have supplied products for many famous company home and abroad, such as FUIOU, HIVEBOX,CHINA TOWER,CLOUD BOX,EASIVEND,UBOX,FUJI BINGSHAN, TCN,COMPTON, TOPBAND, ZKH,DIYI BOX,DPC,MEITUAN,ELE ME etc. We believe our products will also meet or exceed your demands.
Packing & Delivery
Standard package: Carton box package, 50pcs/layer, 100pcs/carton.
Carton size:350mmx200mmx140mm.
Customized package also available.
Customized package also available.
