Quick Details
-
Brand Name:
-
XFOYO
-
Model Number:
-
FY20ES060A
-
Current / Phase:
-
0.6A
-
Product name:
-
Nema 8 Stepper Motor
-
Radial Maximum Load:
-
20N
-
Axial Maximum Load:
-
2N
-
Length:
-
28mm
-
Current:
-
0.6A
-
Resistance:
-
3.2ohms
-
Inductance:
-
0.9mH
-
Rotor Inertia:
-
2.5g*cm^2
-
Weight:
-
0.025KG
-
OEM service:
-
accept
Quick Details
-
Phase:
-
2
-
Type:
-
Hybrid
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XFOYO
-
Model Number:
-
FY20ES060A
-
Current / Phase:
-
0.6A
-
Product name:
-
Nema 8 Stepper Motor
-
Radial Maximum Load:
-
20N
-
Axial Maximum Load:
-
2N
-
Length:
-
28mm
-
Current:
-
0.6A
-
Resistance:
-
3.2ohms
-
Inductance:
-
0.9mH
-
Rotor Inertia:
-
2.5g*cm^2
-
Weight:
-
0.025KG
-
OEM service:
-
accept

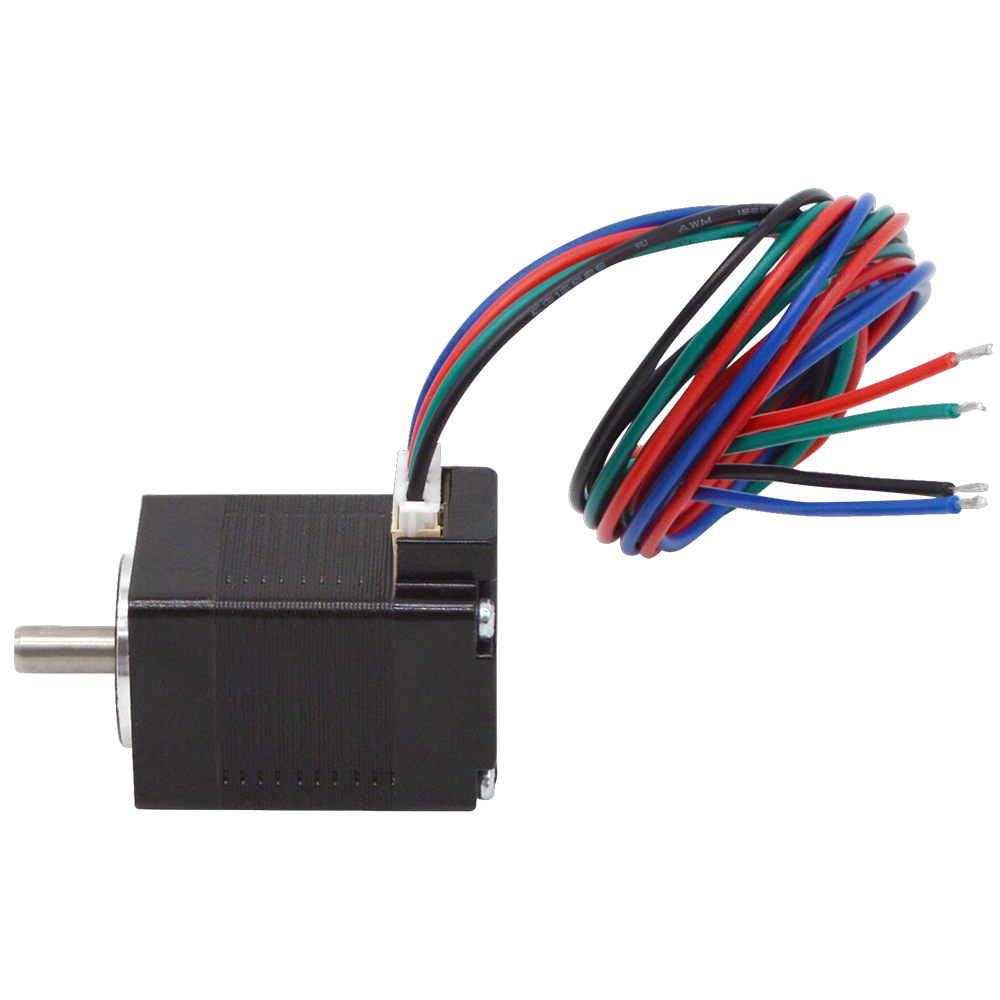

2 Phase Nema 8 Hybrid Stepper Motor
1.Fast heat dissipation、Fast response
2.High torque、High smoothness、High consistency
3.Widely used in electronic equipment, textile equipment, medical equipment, advertising equipment, robotics and other fields
3.Widely used in electronic equipment, textile equipment, medical equipment, advertising equipment, robotics and other fields
|
Model Name
|
FY20ES060A
|
|
Step Angle
|
1.8deg
|
|
Step Angle Accuracy
|
±5%(Full step,no load)
|
|
Resistance Accuracy
|
±10%(20°C)
|
|
Inductance Accuracy
|
±20%(1KHZ)
|
|
Temperature Rise
|
80°C Max(Rated current,2 phase on )
|
|
Ambient Temperature
|
-20°C~+50°C
|
|
Insulation Resistance
|
100MΩ Min., 500VDC
|
|
Dielectric Strength
|
500VAC for one minute
|
|
Shaft Radial Play
|
0.02Max (450g-load)
|
|
Shaft Axial Play
|
0.08Max (450g-load)
|
|
Length
|
30mm
|
|
Holding Torque
|
0.02N.m
|
|
Current / Phase
|
0.6A
|
|
Resistance / Phase
|
6.5ohms
|
|
Inductance / Phase
|
2.2mH
|
|
Rotor Inertia
|
1.6g.cm2
|
|
Weight
|
0.04Kg
|
|
Wires
|
4
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
