Quick Details
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
2200*1000*1900mm
-
Weight:
-
1500 kg
-
Marketing Type:
-
New Product 2022
-
Core Components:
-
spindle box, press roller, motor, gear box, discharge hole/outlet, voltmeter, upper box, active coupling, millstone
-
Name:
-
PTO Pellet Machine
-
Key word1:
-
Sawdust Pellet Machine
-
Key word2:
-
Wood Pellet Machine
-
Raw material:
-
Sawdust,Rice Husk,Wood Chips,Straw
-
Advantage:
-
Easy Operation High Efficiency
-
Certification:
-
ISO9001
-
Pellet size:
-
0.9-12 Mm
-
Power:
-
20-100kw
-
Function:
-
Wood Hammer Crusher
-
Color:
-
Clients' Requirement
Quick Details
-
Max. Capacity:
-
200KG/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhongdebao
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
2200*1000*1900mm
-
Weight:
-
1500 kg
-
Marketing Type:
-
New Product 2022
-
Core Components:
-
spindle box, press roller, motor, gear box, discharge hole/outlet, voltmeter, upper box, active coupling, millstone
-
Name:
-
PTO Pellet Machine
-
Key word1:
-
Sawdust Pellet Machine
-
Key word2:
-
Wood Pellet Machine
-
Raw material:
-
Sawdust,Rice Husk,Wood Chips,Straw
-
Advantage:
-
Easy Operation High Efficiency
-
Certification:
-
ISO9001
-
Pellet size:
-
0.9-12 Mm
-
Power:
-
20-100kw
-
Function:
-
Wood Hammer Crusher
-
Color:
-
Clients' Requirement
Product Description

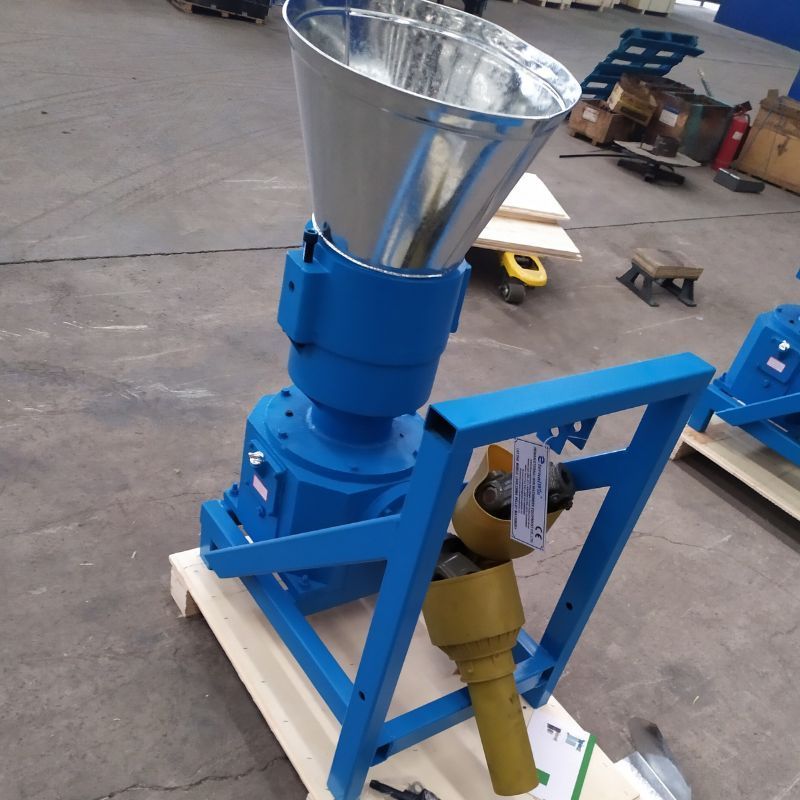

Brief introduction of PTO pellet machine
Advantages of PTO Pellet Machines
1).Simple structure, wide adaptability, covers a small area, low noise. High efficient and low consumption
2).Powder feed, grass meal doesn’t need or with a little liquid, then can be making for granulation.So basic to the moisture content of grain feed granulating before the moisture of the materials, more conducive to storage.
3).Chicken, duck, fish, cattle.pig, birds, dog, etc, than the mixed powder feed can obtain higher economic benefits.
4).Dry processing, the production of feed particle high hardness, smooth surface, internal curing, can improve the digestion and absorption of nutrients.
1).Simple structure, wide adaptability, covers a small area, low noise. High efficient and low consumption
2).Powder feed, grass meal doesn’t need or with a little liquid, then can be making for granulation.So basic to the moisture content of grain feed granulating before the moisture of the materials, more conducive to storage.
3).Chicken, duck, fish, cattle.pig, birds, dog, etc, than the mixed powder feed can obtain higher economic benefits.
4).Dry processing, the production of feed particle high hardness, smooth surface, internal curing, can improve the digestion and absorption of nutrients.
Product Aplication
Raw materials
The raw materials of this machine can be crushed wastes such as peanut shells, sawdust, grass, straw, wood chips, etc., which can be pressed into various biomass fuels. It is often called wood pellet mill、wood pellet machine machine to make pellets homemade.
Kinds of Raw Materials
Pellets as Animal Feed
Raw Materials: soybean meal, corn, straw, green fodder, meat and bone meal, whey powder, fish meal, alfalfa, straw, grass, leaves,etc.
Pellets as Stove Fuel
Raw Materials: straw, alfalfa, wood waste, cornstalks, cardboard, grass, leaves, clippings,rice husks, branches, wood shavings, sawdust,etc.
Specification
Technical Parameter of Wood Pellets Machine
|
Model
|
Power
|
Die Diameter
|
Die Hole Specification
|
Feed Capacity
|
Saw Dust Capacity
|
|
KL120P
|
6-10HP
|
120mm
|
2.5-10mm
|
60-100kg/h
|
40-60kg/h
|
|
KL150P
|
6-12HP
|
150mm
|
2.5-10mm
|
90-120kg/h
|
50-90kg/h
|
|
KL200P
|
10-18HP
|
200mm
|
2.5-10mm
|
200-300kg/h
|
110-140kg/h
|
|
KL230P
|
18-28HP
|
230mm
|
2.5-10mm
|
300-400kg/h
|
150-190kg/h
|
|
KL260P
|
28-45HP
|
260mm
|
2.5-10mm
|
400-600kg/h
|
220-280kg/h
|
|
KL300P
|
45-55HP
|
300mm
|
2.5-10mm
|
600-800kg/h
|
300-360kg/h
|
|
KL360P
|
50-60HP
|
360mm
|
2.5-10mm
|
700-900kg/h
|
300-380kg/h
|
|
KL400P
|
50-70HP
|
400mm
|
2.5-10mm
|
900-1200kg/h
|
400-550kg/h
|
Detailed pictures
Packing & Delivery
Packing standards:
These machines are processed to be rustproof and moisture proof before
delivery. Large mainframes are in nude, while small spare parts and motors are in wooden boxes.
