Quick Details
-
Size:
-
1100*1200*1350mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Gamesail
-
Power:
-
0.37
-
Description:
-
Steam press machine
-
Cloth type:
-
Sleeve,neckline,shirt,pants and etc.
-
Ironing type:
-
Wet pressing or dry pressing
-
Operation:
-
Automatic or Manual for universal laundry press machine
-
Certification:
-
UK Approved CE Certification&ISO 9001
-
WxLxH(mm):
-
1350x1100x1400mm
-
Rated Voltage:
-
110V,220V,240V,380V,400V,415V,440V
-
Rated Power:
-
1.1 kW of universal laundry press machine
-
Material:
-
Stainless Steel made universal laundry press machine
-
Usage:
-
Laundry,hotel,dry clean shop,factory.etc
Quick Details
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Video technical support, Online support
-
Weight:
-
350
-
Size:
-
1100*1200*1350mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Gamesail
-
Power:
-
0.37
-
Description:
-
Steam press machine
-
Cloth type:
-
Sleeve,neckline,shirt,pants and etc.
-
Ironing type:
-
Wet pressing or dry pressing
-
Operation:
-
Automatic or Manual for universal laundry press machine
-
Certification:
-
UK Approved CE Certification&ISO 9001
-
WxLxH(mm):
-
1350x1100x1400mm
-
Rated Voltage:
-
110V,220V,240V,380V,400V,415V,440V
-
Rated Power:
-
1.1 kW of universal laundry press machine
-
Material:
-
Stainless Steel made universal laundry press machine
-
Usage:
-
Laundry,hotel,dry clean shop,factory.etc

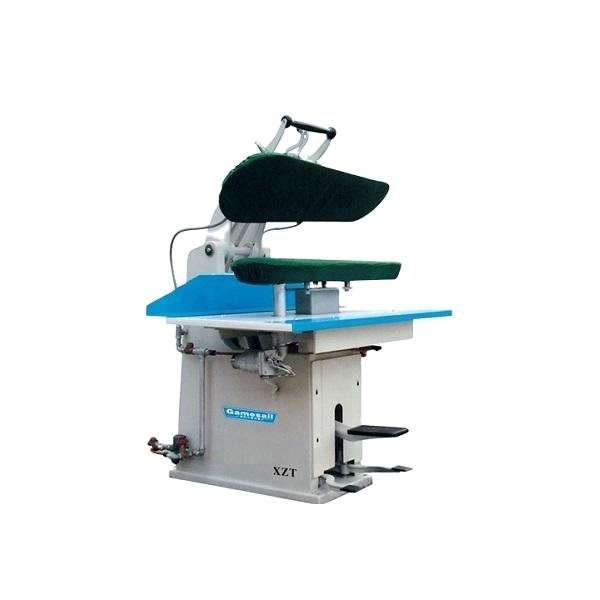

Description: Automatic universal laundry press machine with high performance
ADVANTAGE
Laundry & Dry Cleaning Press Machine
Dry Cleaning Press Machine XZT-H
This type of dry cleaning clamping machine can be used in ironing seams of trousers’ legs and be matched with woolen ironing table.
Washing Clamping Machine XZT-F
This type of clamping machine aims at the clothes like uniforms and shirts that require high quality of style-maintenance.
Collar and Sleeve Clamping Machine XZT-L
This collar and sleeve clamping machine is easy to operate. In a single piece of operation, the collar and one sleeve can be ironed and the next time the shoulder part and rest sleeves can be finished. Thus, this type of machine is quite efficient.
Mushroom-shaped Press XZT-Q
This type of machine is suitable for some corner parts of the clothe like the trousers’ head, short sleeve, etc.
Automatic universal laundry press machine with high performance is widely used by hotel,hospital,laundry, campus,dry clean shop,factory,gerocomium,army and etc..
PRODUCT PICTURES
PRODUCT FEATURES
|
Type/Parameter |
XZT-H |
XZT-F |
XZT-L |
XZT-Q |
|
Rated Power(kW) |
1.1 |
1.1 |
/ |
1.1 |
|
Steam Pressure(Mpa) |
0.4-0.5 |
0.4-0.5 |
0.4-0.6 |
0.4-0.5 |
|
Steam Consumption(Kg/H) |
25 |
15-20 |
15 |
13-15 |
|
Diameter of Steam Pipe (Inch) |
G1/2” |
G1/2” |
G1/2” |
G1/2” |
|
Air Pressure(Mpa) |
0.35-0.4 |
0.35-0.4 |
0.4-0.5 |
0.35-0.4 |
|
Compressed Air Joint Dimensions (mm) |
Φ 6 |
Φ 6 |
Φ 6 |
Φ 6 |
|
Boundary Dimension |
||||
|
Width (mm) |
1350 |
1400 |
1400 |
1400 |
|
Length (mm) |
1100 |
1280 |
1280 |
1000 |
|
Height (mm) |
1400 |
1240 |
1240 |
1240 |
|
Weight (Kg) |
300 |
250 |
250 |
300 |
