Quick Details
-
Voltage:
-
380V/220V
-
Power:
-
2*5.6kw or 2*3kw
-
Dimension(L*W*H):
-
1260X730X940MM
-
Weight (KG):
-
360
-
Product name:
-

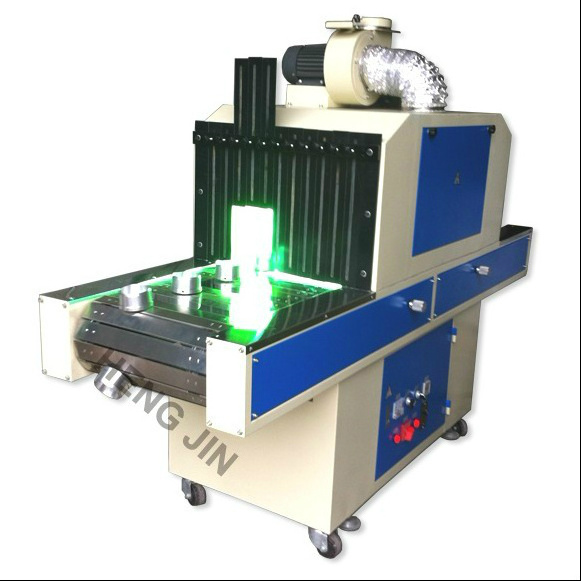

UV Curing tunnel drying Machine
-
Width of belt:
-
300mm to 1200mm
-
voltage:
-
380VAC
-
belt material:
-
Teflon
-
business style:
-
manufacture
-
luminous power:
-
2*w.6kw or 2*3kw
-
Weight:
-
160KGS
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE
Quick Details
-
Type:
-
uv drying machine
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hengjin
-
Voltage:
-
380V/220V
-
Power:
-
2*5.6kw or 2*3kw
-
Dimension(L*W*H):
-
1260X730X940MM
-
Weight (KG):
-
360
-
Product name:
-
UV Curing tunnel drying Machine
-
Width of belt:
-
300mm to 1200mm
-
voltage:
-
380VAC
-
belt material:
-
Teflon
-
business style:
-
manufacture
-
luminous power:
-
2*w.6kw or 2*3kw
-
Weight:
-
160KGS
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE
desktop uv coating machine, Good Performance uv curing machine, uv curing system, uv curing oven
uv varnish machine Applicable range
Used to screen printing ink of UV ultraviolet (UV) light curing. Can be used to UV light oil, grinding, wrinkles, snowflake, foaming, crystal convex oil, marble, refractive index, various UV color, etc.
uv coating machine parameter:
|
Transmission bandwidth ( MM) |
Effecti v e range ( MM ) |
Max thickness of cured ( MM ) |
Conveyor speed ( MM ) |
Light source ( P/VHz ) |
|
300mm to 1200 mm |
45 0 |
8 0 |
2-20 |
1 / 220 /50 |
|
UV light 2 ( KW) |
Transmission Power |
Total power ( KW ) |
Package Dimension L*W*H |
Weight (KGS) |
|
2 KW / pcs |
120W |
4.18KW |
1260 X 730 X 940MM |
16 0KGS |
uv coating machine Main performance
1 2 sets of UV light source system configuration, according to the number of open lamp production needs;
2 Import teflon conveyor belt, seiko produced, smooth operation noise;
3 In Taiwan, the belt speed motor and speed stepless speed conveyor speed visual production situation;
4 Convergent design, high light-gathering reflective chimney, instant drying speed, when the express.
5 UV light height of chimney can be adjusted
6 UV lamp working current can be shown by the master, UV anlaogue display system working condition;
7 Equipped with exquisite cooling system, prevent the working chamber at high temperature, the effective protection of production work;
8 UV light height of chimney can be adjusted;
9 UV lamp working current can be shown by the master, UV anlaogue display system working condition;
uv coating machine Configuration:
1.import UV light ,high gather reflective chimney
2.import teflon or stainless steel mesh belt
3.stepless motor import from Taiwa
4.Manda brand cooling fan with hight quality
