Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZY
-
Voltage:
-
380v 50Hz or at buyer's request
-
Dimension(L*W*H):
-
L*W*H)
-
Weight:
-
4000 kg
-
Warranty:
-
2 Years
-
After-sales Service Provided:
-
Overseas service center available
-
Processing Material:
-
PPGI,GI
-
Processing Thickness(mm):
-
0.3-0.6mm
-
Material of Rollers:
-
45# steel, with hard chrome coated
-
Diameter of Shaft:
-
70mm
-
Production Speed:
-
0-14m/min
-
Cutting Model:
-
Decelerating Motor+Chain Transmission
-
Length Measurement:
-
Encoder
-
Testing Material:
-
Q195
Quick Details
-
Type:
-
roll forming machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
0-15m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZY
-
Voltage:
-
380v 50Hz or at buyer's request
-
Dimension(L*W*H):
-
L*W*H)
-
Weight:
-
4000 kg
-
Warranty:
-
2 Years
-
After-sales Service Provided:
-
Overseas service center available
-
Processing Material:
-
PPGI,GI
-
Processing Thickness(mm):
-
0.3-0.6mm
-
Material of Rollers:
-
45# steel, with hard chrome coated
-
Diameter of Shaft:
-
70mm
-
Production Speed:
-
0-14m/min
-
Cutting Model:
-
Decelerating Motor+Chain Transmission
-
Length Measurement:
-
Encoder
-
Testing Material:
-
Q195

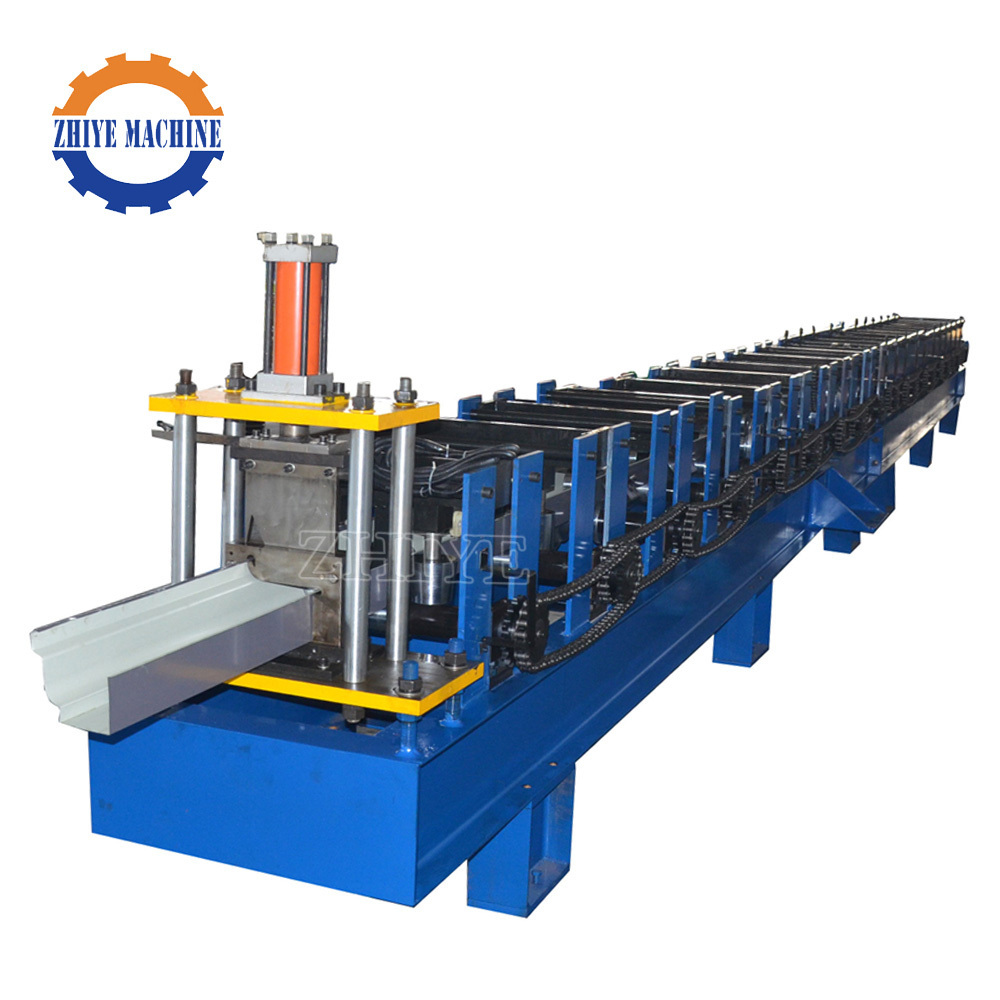

Steel Rain Water Downspouts Pipe Roll Forming Machines Rain Gutter Pipe Elbow Cold Forming Machine
Main Parameter of Roll Forming Machine
|
No. |
Item |
|
|
1. |
Processing Material |
PPGI,GI |
|
2. |
Processing Thickness(mm) |
0.95 mm |
|
3. |
Material of Rollers |
45# steel, with hard chrome coated |
|
4. |
Roller station |
18-19 |
|
5. |
Diameter of Shaft |
70mm |
|
6. |
Production Speed |
0-14m/min |
|
7. |
Roller Driven |
Decelerating Motor+Chain Transmission |
|
8. |
Cutting Model |
Hydraulic Profile Cutting |
|
9. |
Length Measurement |
Encoder |
|
10. |
Control Style |
PLC |
|
11. |
Operation Model |
Button + Touch Screen |
|
12. |
Total Power |
8kw |
|
13. |
Voltage |
380V 50HZ or at buyer's request |
|
14. |
Testing Material |
Q195 |
Steel Rain Water Downspouts Pipe Roll Forming Machines Rain Gutter Pipe Elbow Cold Forming Machine
General package : Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
Shipping : We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
We will offer technical support for all the roll forming machines the whole life. 2 years free spare parts replacement and maintaince. Our international technicians can be reach your workshop at the first time if your machines has problem.
