Used for sand blasting, shot blasting, powder spraying, mine crushing, wood processing filtration
♦ Imported long fiber polyester filter material, fiber interleaved, uniform distribution
♦ Good wear resistance, it can withstand the pulse back blowing airflow better than the traditional filter material
♦ Filter material stiffness is good, denier can be cleaned repeatedly
♦ End cover, center frame are electric galvanized parts, no rust
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Erhuan
-
Dimension(L*W*H):
-
324*324*660mm
-
Weight:
-
4 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Polyester Air Filter Cartridge
-
Application:
-
Air Filtration System
-
Color:
-
Customizable
-
Certification:
-
ISO9001:2008
-
Temperature:
-
90°C-130°C
-
Material:
-
polyester/spunpond/spunpond anti-static with PTFE
-
OEM:
-
Available
-
Performance:
-
Efficient filtration
Quick Details
-
Efficiency:
-
99.98%
-
Porosity:
-
0.5μm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Erhuan
-
Dimension(L*W*H):
-
324*324*660mm
-
Weight:
-
4 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Polyester Air Filter Cartridge
-
Application:
-
Air Filtration System
-
Color:
-
Customizable
-
Certification:
-
ISO9001:2008
-
Temperature:
-
90°C-130°C
-
Material:
-
polyester/spunpond/spunpond anti-static with PTFE
-
OEM:
-
Available
-
Performance:
-
Efficient filtration
Video Description
Products Description

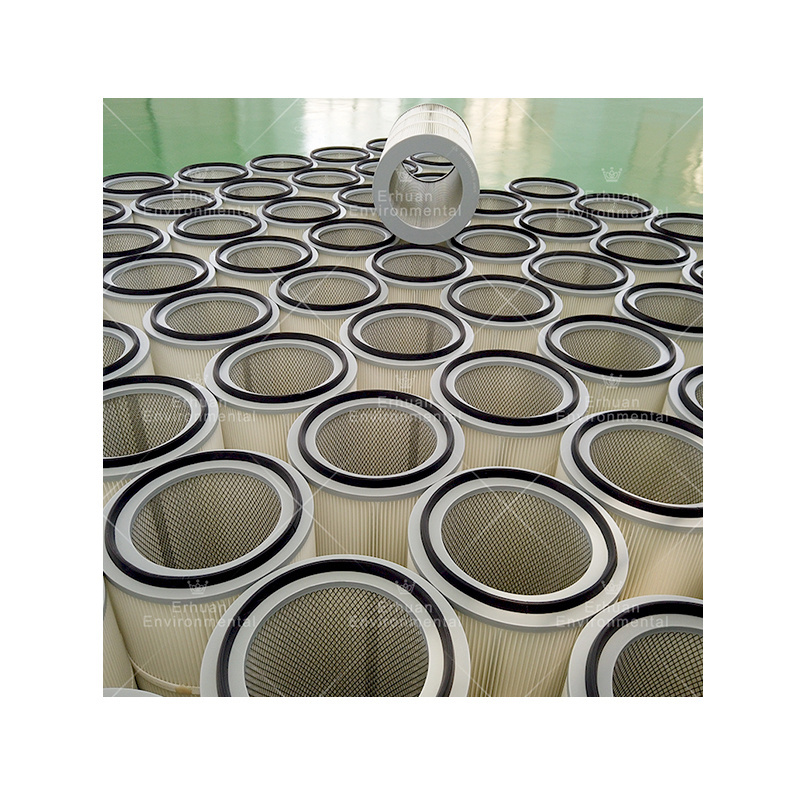

Polyester Air Filter Cartridge
Features
1.1. Polyester material wrinkled non-woven fabric is a commonly used air filtration material in the industrial field.
1.2.Generally, polyester fiber is used as the main material and is made through special processing techniques.
1.3.The fibers of the polyester filter cartridge are tightly arranged and have a high porosity, which can effectively filter out small particles and impurities,ensuring the purity of the filtered air quality. The maximum temperature resistance is 120 degrees Celsius.
1.4.The usual weight is 240 grams per square meter, 260 grams per square meter, and 300 grams per square meter.
1.5.In fact, the length of the filter cartridge can be customized non-standard within 0-3 meters, and the shape of the filter cartridge cover can also be customized non-standard according to your
1.5.In fact, the length of the filter cartridge can be customized non-standard within 0-3 meters, and the shape of the filter cartridge cover can also be customized non-standard according to your
Product Paramenters
|
Base Media
|
polyester/spunpond
|
polyester/spunpond with PTFE
|
polyester/spunpond anti-static with PTFE
|
polyester/spunpond with flame retardant
|
polyster/spunpond with PTFE & flame retardant
|
|
Base Media
|
|
|
|
|
|
|
Efficiency Rating
|
F9
|
F9
|
F9
|
F9
|
F9
|
|
Maximum Operating Temperature
|
90°C-130°C
|
90°C-130°C
|
90°C-130°C
|
90°C-130°C
|
90°C-130°C
|
|
|
|
|
|
|
|
|
Abrasion Resistance
|
Excellent
|
Excellent
|
Excellent
|
Excellent
|
Excellent
|
|
Special Characteristics
|
Wide pleat spacing, abrasion
resistive, moisture tolerant. |
Imported spun bonded polyester with PTFE membrane, microporou Offers 99.99+% filter efficiency.
|
Wide pleat spacing, great filter surface.Imported spun bonded polyester with PTFE membrane Flame Retardant material.
|
Wide pleat spacing, great filter surface. Flame Retardant material.
|
Wide pleat spacing, great filter surface. Flame Retardant material.
|
|
|
Special suitable for treat Ceramics, Cotton, Fiberglass,
Tobacco,Metal grinding, Powder coating, Shot blast, Gypsum,Lime, Cement etc dirty dust. |
Excellent resistance to chemical erosion.
|
High dust loading capacity,Optimized flow conditions, Can be acted replacements for manybrands to clean your air perfectly;
|
Perforated zinc galvanized metal inner core, allows good airflow.
|
Perforated zinc galvanized metal inner core, allows good airflow.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Applications
|
Chemical processing, General
industrial, Surface blasting,Grinding, Polishing, Powder coating,Pharmaceutical,Food,Grinding, Polishing,Powder coating |
Pharmaceutical, Food processing, Grain handing, Lead-acid storage battery
|
Particular suitbale for Grinding, Laser/Plasma cuting, Polishing, Powder coating, metal buffing, woodworking etc.
|
Particular suitbale for Grinding,Laser/Plasma cuting, Polishing, Powdercoating, metal buffing, woodworking etc.
|
Particular suitbale for Grinding, Laser/Plasma cuting, Polishing, Powder coating, metal buffing, woodworking etc.
|
|
Available Dust Collectors
|
EH-DFT,EH-DWS-EH-PT,EH-DB2000
|
EH-DFT,EH-DWS-EH-PT,EH-DB2000
|
EH-DFT,EH-DWS-EH-PT,EH-DB2000,EHI, EHVT
|
EH-DFT,EH-DWS-EH-PT,EH-DB2000,EHI, EHVT
|
EH-DFT,EH-DWS-EH-PT,EH-DB2000,EHI, EHVT
|
Current available Models
|
Model
|
O.D
|
I.D
|
Length
|
Filtration surface
|
|
EH/P3266
|
φ324mm
|
φ213mm
|
660mm
|
9.4m2
|
|
EH/P3566
|
φ352mm
|
φ241mm
|
660mm
|
9.4m2
|
|
EH/P3275
|
φ324mm
|
φ213mm
|
750mm
|
10.7m2
|
|
EH/P3288
|
φ324mm
|
φ213mm
|
880mm
|
12.5m2
|
|
EH/P3290
|
φ324mm
|
φ213mm
|
915mm
|
13.0m2
|
Details Images
Air Clean Equipment System
Shot/Sand Blasting Dust Collector
Paper Powder Plant Dust Collector
Electronic Plant Dust Collector
Welding Fumes Dust Collector
Milk Powder Dust Collector
Product packaging
