Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
PEIDA
-
Model Number:
-
Mineral Fiber Ceiling
-
Type:
-
Ceiling Tiles
-
Raw material:
-
Wet-Formed Mineral Fiber
-
Surface Finish:
-
Vinyl Latex Paint
-
Density:
-
280-320kg/m3
-
Edge:
-
Square/Tegular/Concealed/Overlap
-
Noise Reduction Coefficient:
-
NRC 0.48-0.66
-
Moisture Deflection:
-
2.8~0.8mm(12~18mm thickness)
-
Flexural Strength:
-
196N
-
Light Reflectance:
-
Minimum LR0.80
-
Water Content:
-
1%
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
PEIDA
-
Model Number:
-
Mineral Fiber Ceiling
-
Type:
-
Ceiling Tiles
-
Raw material:
-
Wet-Formed Mineral Fiber
-
Surface Finish:
-
Vinyl Latex Paint
-
Density:
-
280-320kg/m3
-
Edge:
-
Square/Tegular/Concealed/Overlap
-
Noise Reduction Coefficient:
-
NRC 0.48-0.66
-
Moisture Deflection:
-
2.8~0.8mm(12~18mm thickness)
-
Flexural Strength:
-
196N
-
Light Reflectance:
-
Minimum LR0.80
-
Water Content:
-
1%
Cheap Classic Charcoal Mineral Fiber Ceiling Tiles Ceiling 2 x 4
Pattern:
Free of regular pores (Fine Fissured), Micropores(Random Holes), Sand Blasted,and Perforation .
Features of PANDA Mineral Fiber Ceiling
The high-quality mineral wool and composite fiber as the main raw materials and adding other additives, comes out under high pressure steaming and cutting.
It has good fire and sound absorption performance, and has superior performances such as non-combustibility, heat insulation, sag resistant, mold-proof, environmental protection.

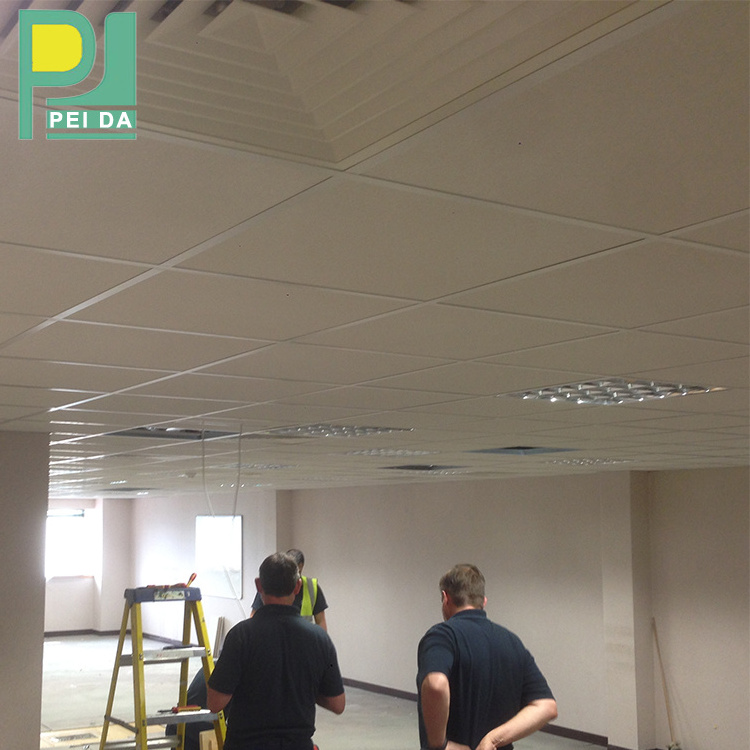

Extensively used for indoor ceilings in office, airport, restaurant, petrol pump and hotel.
Specification
|
Edge |
Square |
Tegular |
Concealed |
Overlap |
|
Size(mm) |
300*600/600*600/600*1200 Metric/Imperial Sizes Available |
|||
|
Thickness(mm) |
6.5~20 |
12~20 |
12~20 |
12~20 |
|
Application |
All Series |
Fine Fissured/Random Holes/ Sand Blasted/Excellence |
||
ISO Certificate
Technical Data
|
Item |
Unit |
Standard Value |
Test Value |
|
Material |
/ |
/ |
Wet-Formed Mineral Fiber |
|
Surface Finish |
/ |
/ |
Factory-Applied Vinyl Latex Paint |
|
Density |
Kg/m3 |
≤ 500 |
280-320 |
|
Water Content |
% |
≤ 3 |
1 |
|
Moisture Deflection |
Mm |
≤ 3.5 |
2.8~0.8(thickness 12-18mm) |
|
Thermal Conductivity |
W/m·k |
≤ 0.065 |
0.0475 |
|
Noise Reduction Coefficient (NRC) |
/ |
/ |
0.48-0.66 |
|
Flexural Strength |
N |
≥ 50 |
196 |
|
Ceiling Articulation Class (CAC) |
dB |
/ |
Minimum30 |
|
Light Reflectance |
/ |
/ |
Minimum LR0.80 |
|
Incombustibility |
Class |
GB6566-2001 Class A |
GB6566-2001 Class A |
|
RH Performance |
Relative Humidity up to 80%-90% |
||
ONE STOP Solution for Ceiling
T Grid System
