Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*900
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
Ruida
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
voiern
-
Weight (KG):
-
400 KG
-
Color:
-
Gray-yellow
-
Product name:
-

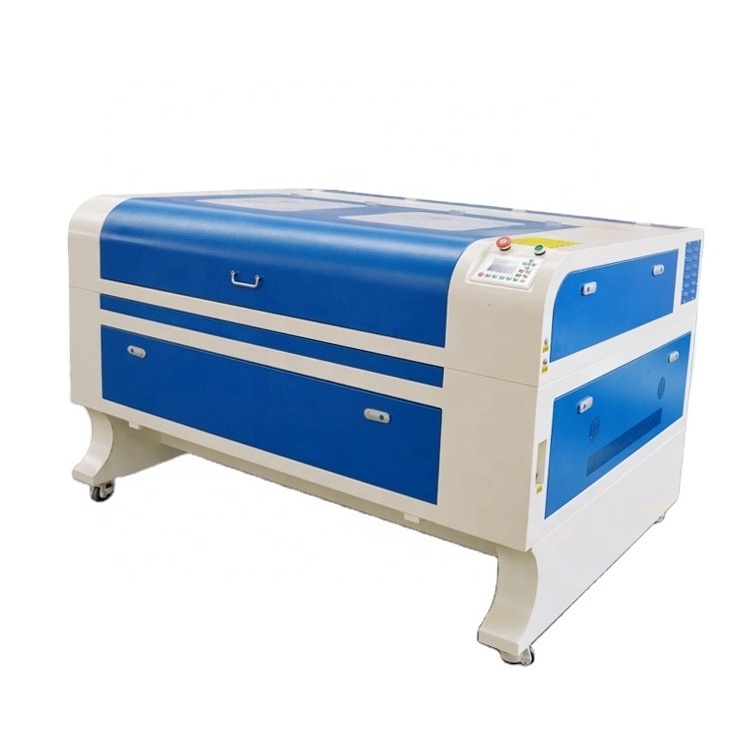

C02 Laser Engraving Cutting Machine
-
Laser tube:
-
CO2 Laser Tube
-
Laser source:
-
CO2 Laser Glass Tube
-
Working area:
-
1300mm*900mm
-
Control system:
-
Ruida Control System
-
Working table:
-
Honeycomb
-
Engraving Speed:
-
0-1000mm
-
Guide rail:
-
Taiwan Hiwin Linear Square Rails
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
200mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*900
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
Ruida
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
voiern
-
Weight (KG):
-
400 KG
-
Color:
-
Gray-yellow
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Laser tube:
-
CO2 Laser Tube
-
Laser source:
-
CO2 Laser Glass Tube
-
Working area:
-
1300mm*900mm
-
Control system:
-
Ruida Control System
-
Working table:
-
Honeycomb
-
Engraving Speed:
-
0-1000mm
-
Guide rail:
-
Taiwan Hiwin Linear Square Rails
|
controller: RUIDA control system |
|
Laser power 80w/100w/130W/150W |
|
Laser tube sealed carbon dioxide glass laser tube. |
|
Working area 1300 x 900 mm. |
|
Engraving speed maximum 1500mm/s. |
|
Minimum Character: 1mm |
|
Guideway :Linear Guideway |
|
Drive Mode :57 Digital Subdivision Stepper Drive |
|
Positioning Mode:Red Light |
|
Cooling Mode:Water Cooling |
|
Lift table space 500 mm up and down adjustable. |
|
The software supports indirect output :ArtCut, Photoshop. |
|
Direct output :CorelDraw, AutoCAD, Photoshop, Laser CAD, etc |
|
Graphic Format Supported :AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc |
|
Power supply 220V 10%50HZ/110V 10%50HZ. |
|
Standard parts blower and exhaust pipe, water chiller, air pump, electric lift table, DSP offline control, software, etc. |
|
Optional part rotary jig: used for carving on curved surface. |
