Quick Details
-
Model Number:
-
RS1703A0A-HA1
-
Max. Current:
-
0.3A
-
Mechanical Life:
-
15000cycles
-
Reputation:
-
TOP brand in China
-
Certification:
-
ISO9001;ISO14001;ISO/TS16949
-
RoHS Part:
-
100%
-
Rotational Life:
-
15000cycles
Quick Details
-
Max. Voltage:
-
DC 16V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SOUNDWELL
-
Model Number:
-
RS1703A0A-HA1
-
Max. Current:
-
0.3A
-
Mechanical Life:
-
15000cycles
-
Reputation:
-
TOP brand in China
-
Certification:
-
ISO9001;ISO14001;ISO/TS16949
-
RoHS Part:
-
100%
-
Rotational Life:
-
15000cycles
|
Rotary Switch Model
|
RS1703 series
|
|
Step angle
|
30°±3°
|
|
Rotational life
|
10,000 cycles Min
|
|
Working temperature
|
-10℃～70℃
|
|
Number of positions
|
2~8
|
|
|
|

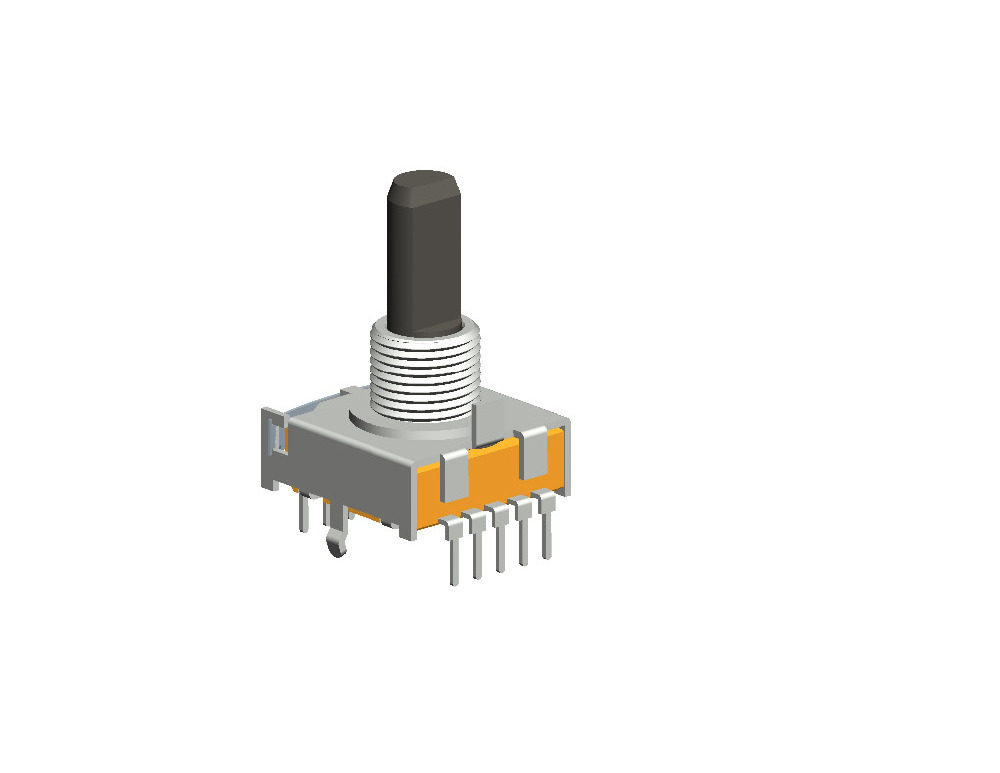

RS1703
Rotary Switch
Main Specifications
|
Dimensions
|
17mm
|
|
|
|
|||
|
Rated power
|
DC 16V 0.3A
|
|
|
|
|||
|
Contact resistance
|
100mΩ Max
|
|
|
|
|||
|
Number of positions
|
2~8
|
|
|
|
|||
|
Operating temperature
|
-10℃～70℃
|
|
|
|
|||
|
Rotational life
|
10,000 cycles Min
|
|
|
|
|||
|
Applications
|
Home appliances such as micro-wave ovens, washing machines, audio devices, health care systems or other electronic products;
|
|
|
|
|||
|
Product features
|
2~8 positions available with clear sense of clicks;
Available in various shaft options; |
|
|
|
|||
|
Functions
|
The main functions are function switching, speed adjustment, temperature adjustment and so on.
|
|
|
|
|||
RS1703
Rotary Switch
Specifications
1. Rotational Torque: 100~400gf.cm 2. Step Angle: 30°±3°
Two、ELECTRICAL CHARACTERISTIC
Three、ENDURANCE CHARACTERISTIC
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
