DC 12V 24V led stirp MINI cabunet wardrobe pir motion sensor switch for lighting

DC 12V 24V led stirp MINI cabunet wardrobe pir motion sensor switch for lighting

FOB Reference Price: Get Latest Price

≥1 Pieces

US $6

≥10 Pieces

US $5.5

≥100 Pieces

US $5

≥1000 Pieces

US $4.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: BS010

Type:: MOTION SENSOR

Power:: /

Sensing Range:: 5-7M

size:: 48*25*14 mm

Output:: DC 12V 24V

Description:: Passive Infrared Sensor

Load current:: <3A

Static power loss:: ≤ 50 uA

Delay time:: Default setting 15sec(2~360 Seconds is adjustable)

light sensor:: YES

Detecting range:: ≤ 110 degrees cone angle, ≤5M-7M (0~5M is adjustable)

Trigger way:: continuous triggering

Certificate:: CE ROHS

Quick Details

Voltage:: DC12V-24V

Place of Origin:: Guangdong, China

Brand Name:: BESTER

Model Number:: BS010

Type:: MOTION SENSOR

Power:: /

Sensing Range:: 5-7M

size:: 48*25*14 mm

Output:: DC 12V 24V

Description:: Passive Infrared Sensor

Load current:: <3A

Static power loss:: ≤ 50 uA

Delay time:: Default setting 15sec(2~360 Seconds is adjustable)

light sensor:: YES

Detecting range:: ≤ 110 degrees cone angle, ≤5M-7M (0~5M is adjustable)

Trigger way:: continuous triggering

Certificate:: CE ROHS

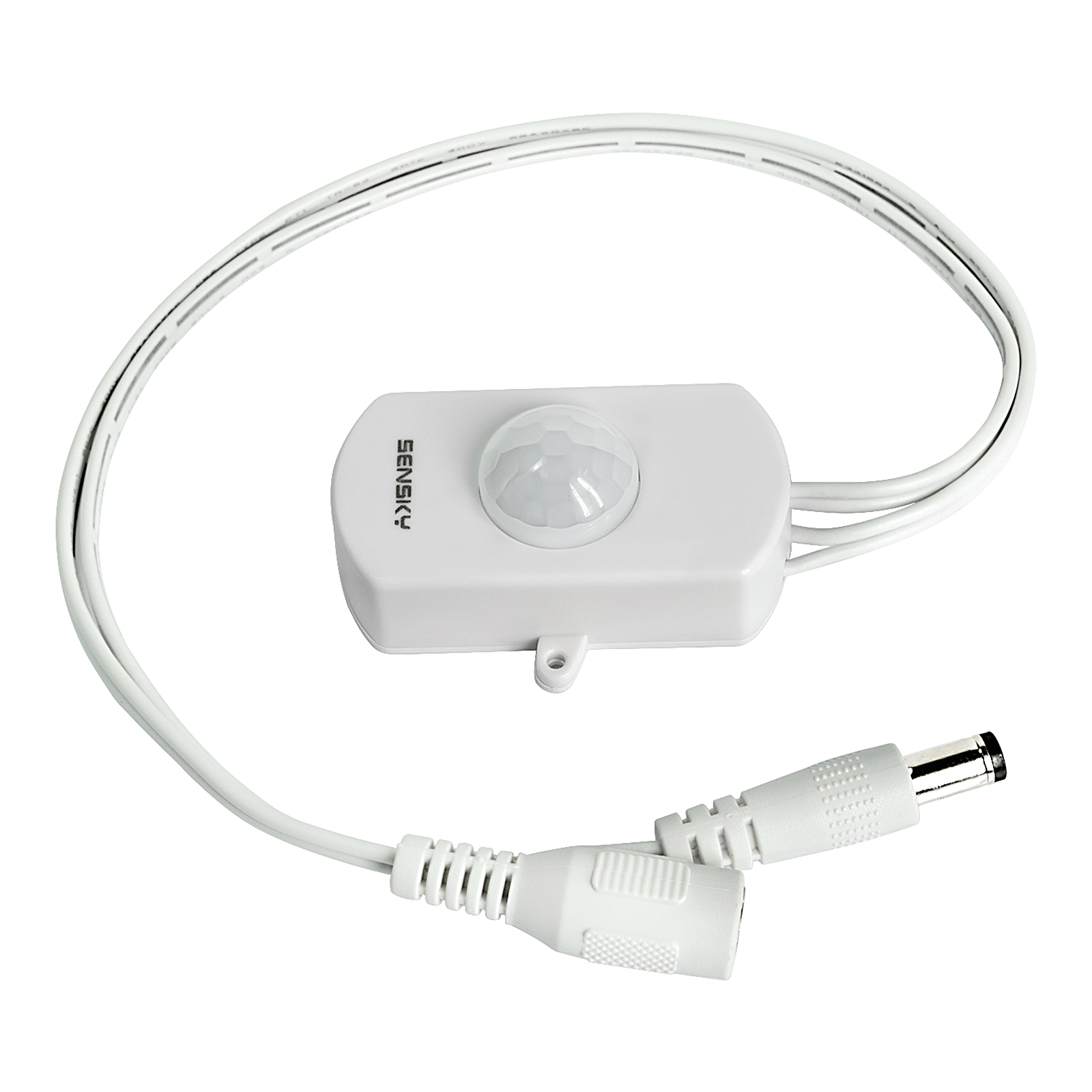

DC Sensor Dimmer BS010BB/ BS010BW

BS010B dimmable PIR motion sensor is a pyroelectric device that can detect human movement by detecting Infrared rays emitted by the human body. The operating voltage is 12/24VDC, and the output voltage is equal to the input voltage. The Dimmable PIR motion sensor can change the LED light brightness by pressing the button on the PCB. Widely used for 12V/24V DC constant voltage LED light, LED strips, and automatic sensory devices.

Motion Sensor Dimmer BS010B

The Dimmable PIR motion sensor can change the LED light brightness by pressing the button on the PCB. Widely used for 12V/24V DC
constant voltage LED light, LED strips, and automatic sensory devices.

Features & Benefits

* Low voltage DC12V-24V, dimmable PIR motion sensor .

* Use fireproof material, high security.

* Easy to install and suitable for LED strips.

* Time delay adjustable.

* Energy saving performance and long operating life

* CE, RoHS, FCC approved

Features	Color	Black housing,White lens/White housing,White lens
		Operating voltage	12/24 VDC (30VDC Max)
		Output voltage	Equal to input voltage
		Load current	≤ 3A
		Static current	≤ 50 uA
		Delay time	15S, 30S, 60S, 3Mins, 5Mins, 15Mins, 30mins
		Dimmable	15%, 30%, 45%, 60%, 75%, 100%
		Light sensor	ON(35Lux)/OFF mode
		Detecting range	5-7 Meters, ≤ 110 degrees cone angle
		Size	482514 mm
