Quick Details
-
Voltage:
-
110V-480V
-
Dimension(L*W*H):
-
500*1500mm
-
Weight:
-
315 KG
-
Product:
-
oyster size grader
-
Material:
-
stainless steel
-
dimension:
-
1500*500
-
filter mesh size:
-
2mm, 10mm 15mm
-
sorting size fractions:
-
4 size fractions
-
Mesh type:
-
woven wire mesh
-
Capacity:
-
500kg/h
-
drive:
-
electric vibrating motor drove
-
Function:
-
sizing/grading/sorting
Quick Details
-
Type:
-
LINEAR
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YongQing
-
Voltage:
-
110V-480V
-
Dimension(L*W*H):
-
500*1500mm
-
Weight:
-
315 KG
-
Product:
-
oyster size grader
-
Material:
-
stainless steel
-
dimension:
-
1500*500
-
filter mesh size:
-
2mm, 10mm 15mm
-
sorting size fractions:
-
4 size fractions
-
Mesh type:
-
woven wire mesh
-
Capacity:
-
500kg/h
-
drive:
-
electric vibrating motor drove
-
Function:
-
sizing/grading/sorting

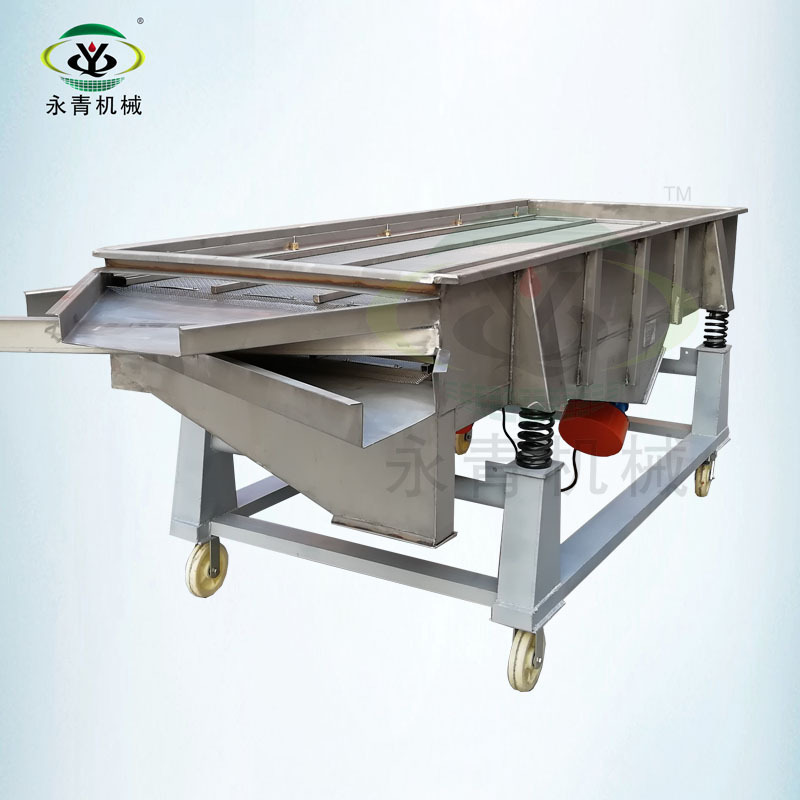

3 levels oyster seeds sorting machine vibrating screen separator for grading oyster
|
Electric vibration sorting machine for almonds/cashew nuts/peanut/beans/herbs/seeds etc.
|
|
Linear vibrating screen Model DZSF1030
|
|
|
| Screen size | 1000*3000mm | |
| Material | carbon steel | |
| Screen deck | 3 decks | |
| Mesh size | 1mm, 3mm, 5mm | |
| Mesh type | woven wire mesh | |
| Discharge outlet | 4 outlets | |
|
How Does This Screener Machine Works
YongQing DZSF Series sand sieving machine is driven by 2units vibrator motors, raw sand mixtures feeding from the inlet to mesh screens, graded to different size parts through screen mesh and discharge from individual outlets
|
|
|
Multi Layers Screen
YongQing DZSF series sand vibrating sieve machine can be single screen layer, or multi screen layers. Max 5 layers. separating particles into 2 or more size fractions.
|
|
|
One Layer Sieving Screen
This high efficiency vibrating filter usually used for screening fine refractory powders, remove oversize particles.
|
|
|
2 Layers Sieve Machine
This double stages vibrating sifter is widely used for sifting refractory materials and other powdered/granulated materials. to remove oversize particles and cleaning dust.
|
| Model | Layer |
Screening area(mm) |
Mesh (mm) |
Particle size(mm) |
Capacity (t/h) |
Power (kw) |
Dual Amplitude |
|
DZSF-612 |
1-5 |
600*1200 |
0.02-20 |
≤20 |
≤3 |
0.37×2 |
6-10 mm |
|
DZSF-520 |
500*2000 |
≤5 |
0.37×2 |
||||
|
DZSF-525 |
500*2500 |
≤8 |
0.37×2 |
||||
|
DZSF-1020 |
1000*2000 |
≤12 |
0.75×2 |
||||
|
DZSF-1025 |
1000*2500 |
≤16 |
0.75×2 |
||||
|
DZSF-1030 |
1000*3000 |
≤20 |
1.1×2 |
||||
|
DZSF-1224 |
1200*2400 |
≤23 |
1.5×2 |
||||
|
DZSF-1525 |
1500*2500 |
≤28 |
1.5×2 |
||||
|
DZSF-1530 |
1500*3000 |
≤32 |
2.2×2 |
|
Screen Mesh
YongQing DZSF Series linear vibration screen machine can be designed for your specific application with different type of screen meshes. woven wire mesh screen for sifting fine powders or small particles; perforated plate mesh for separating different size particles, lumps; girzzly bar mesh for grading refractory particles size, mining industrials application etc.
|
|
How to Get a Suitable Refractory Sieving Machine
1. what is your raw material to screening? 2. what process capacity you need per hour? 3. Sieve mesh size you need?
|
|
Custom Sieving Equipment
YongQing Screen Machine Company is a factory manufacturer with 14 years production xperience, provide project designs, technologies design, Non-standard design and on-site service.
|
|
|
Portable Screening Machine
Mobile caster wheels (with break lock)can be added to the screening machine. move the sifter equipment anywhere you want.
|
|
|
Open Type Refractory Screener
According to specific application, sieving machine designed without dustproof lid, discharge outlet also open type,outlet direction designed based on specific needs.
|
|
