Quick Details
-
Power:
-
3 kw
-
Min. Lifting Height:
-
1000mm
-
Table Size:
-
2000*1300 mm
-
Overall Dimensions:
-
2100*1350 mm
-
Weight:
-
900 kg
-
Type:
-
Scissor Hydraulic Lift
-
Application:
-
Widely
-
Material:
-
Manganese Steel
-
Color:
-
Customers' Requirements
-
Voltage:
-
220V/380V/battery/Fuel Oil Machine
-
Max. Lifting Height:
-
20m
-
Control:
-
Double Controller
-
Lifting speed:
-
3-6m/min
-
Origin:
-
China Lift Platform
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZENGYI
-
Power:
-
3 kw
-
Min. Lifting Height:
-
1000mm
-
Table Size:
-
2000*1300 mm
-
Overall Dimensions:
-
2100*1350 mm
-
Weight:
-
900 kg
-
Type:
-
Scissor Hydraulic Lift
-
Application:
-
Widely
-
Material:
-
Manganese Steel
-
Color:
-
Customers' Requirements
-
Voltage:
-
220V/380V/battery/Fuel Oil Machine
-
Max. Lifting Height:
-
20m
-
Control:
-
Double Controller
-
Lifting speed:
-
3-6m/min
-
Origin:
-
China Lift Platform
-
After-sales Service Provided:
-
Free spare parts

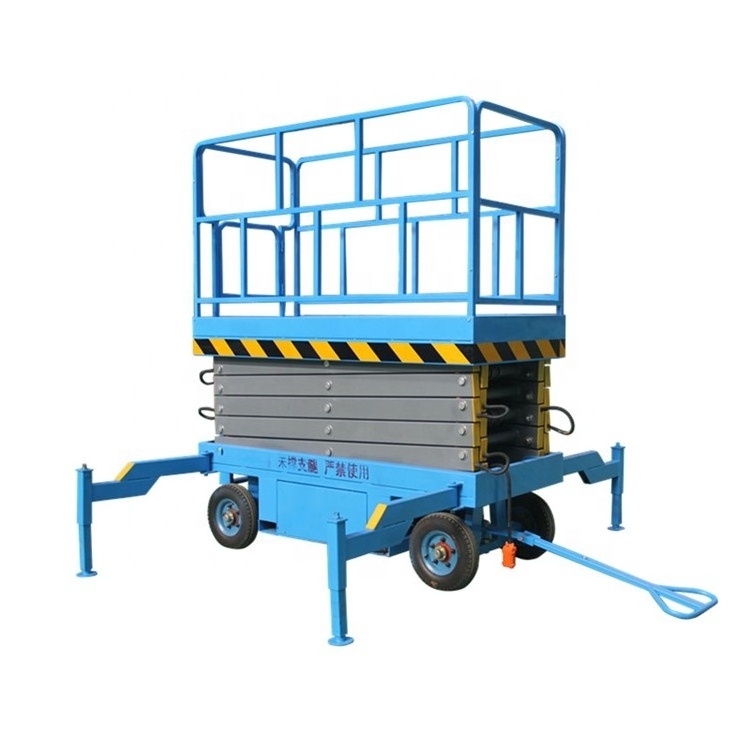

Mobile scissor lift for industrial use 4M 6M 8M 10M 12M 14M 16m Full-automatic hydraulic lift Trailer scissor forklift platform
| Electric wheel drive | Table size (m) | Load (kg) | Net height (m) | Overall dimensions(mm) | Mesa extension (m) | Its weight (kg) |
|
GTJZD-6 |
2.26*1.13 |
230 |
6 |
2.47*1.17* 2.29 |
0.9 |
1900 |
|
GTJZD -8 |
2.26*1.13 |
230 |
8 |
2.47*1.17*2.31 |
0.9 |
2060 |
|
GTJZD-10 |
2.26*1.13 |
230 |
10 |
2.47*1.17*2.43 |
0.9 |
2300 |
|
GTJZD-10 |
2.26*1.13 |
320 |
10 |
2.47*1.17*2.43 |
0.9 |
2730 |
|
GTJZD -12 |
2.26*1.13 |
230 |
11.8 |
2.47*1.17*2.55 |
0.9 |
2460 |
|
GTJZD -12 |
2.26*1.13 |
320 |
11.8 |
2.47*1.17*2.55 |
0.9 |
2860 |
Notice of chain block:
Ø It is forbidden to use overload.
Ø Pay attention to the maintenance of lifting joints with lubricating oil.
Ø You need to open the four-legged legs to lift.
Ø Do not move when lifting.
