Quick Details
-
Customized support:
-
Customized tuya scene switch availably
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Formike
-
Model Number:
-
smart scene switch
-
Mechanical Life:
-
500K
-
Product name:
-

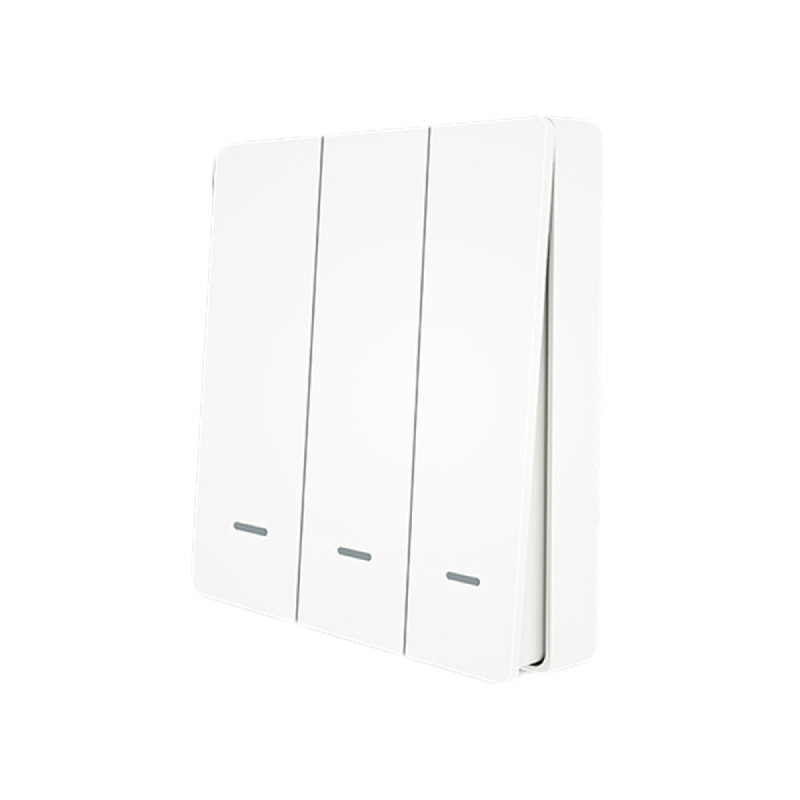

Zigbee Scene Switch Tuya 3 Gang Smart Scene Switch Button
-
Application:
-
Smart Home System
-
Function:
-
Control Light
-
Type:
-
Wall Scene Switch
-
Feature:
-
Easy Installation
-
App Name:
-
Smartlife Tuya APP
-
Voice Control:
-
Via Google Home Amazon Alexa
-
Size:
-
86.0mm*86.5mm*15.5mm
-
Control Method:
-
Smartphone Control+touch+vioce Control
-
Keyword:
-
Zigbee Smart Switch Light Switch
Quick Details
-
Max. Current:
-
10uA
-
Max. Voltage:
-
DC 3V
-
Network:
-
Zigbee
-
Customized support:
-
Customized tuya scene switch availably
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Formike
-
Model Number:
-
smart scene switch
-
Mechanical Life:
-
500K
-
Product name:
-
Zigbee Scene Switch Tuya 3 Gang Smart Scene Switch Button
-
Application:
-
Smart Home System
-
Function:
-
Control Light
-
Type:
-
Wall Scene Switch
-
Feature:
-
Easy Installation
-
App Name:
-
Smartlife Tuya APP
-
Voice Control:
-
Via Google Home Amazon Alexa
-
Size:
-
86.0mm*86.5mm*15.5mm
-
Control Method:
-
Smartphone Control+touch+vioce Control
-
Keyword:
-
Zigbee Smart Switch Light Switch
Zig bee Tu ya Scene Switch 2 Gang Smart Scene Switch Button battery
| Product Specification | ||||||
|---|---|---|---|---|---|---|
| LCD name | Zigbee Scene Switch Tuya 3 Gang Smart Scene Switch Button | |||||
| Product type | Smart scene switch | |||||
| Networking form | ZigBee, BLE | |||||
| Standby current | 10µA | |||||
| Working Humidity | <90%RH | |||||
| Power input |
Cr2032 button battery |
|||||
| Working temperature | -10℃~+45℃ | |||||
| Product size | 86.0mm*86.5mm*15.5mm | |||||
| Button lifecycle | 500K | |||||
| Package included | Scene Switch *1, Manual *1, Double-sided gum *2, CR2030 3V battery *1 | |||||
- ZigBee Smart Scene Switch Product Manual
This Scene Switch is powered by battery, which is developed under ZigBee communication. After connecting with ZigBee gateway and adding into Smart life App, it allows you to quickly "set the scene" for a particular room or living scene, like Reading, Movie, and so on.
- Access settings:
Scene Switch Operate: Each one button can be adapted upto three different scenarios through the APP.
The indicator flash quickly, it means that the switch under
process of network connecting.
(Single Click) : Activate the 1st scene.
(Double Click) : Activate the 2nd scene.
Long Hold 5s:Activate the 3nd scene.
Press and Hold button 1 for 10s get into pair mode, LEDS will
quick flash.
Long press the button, the indicator will turn on.
Note: Tuya zigbee products need Tuya zigbee gateway to use! When purchasing this product, please bring your own Tuya zigbee gateway. We also have Tuya zigbee gateways for sale, please contact customer service if necessary.
