Quick Details
-
metal gears:
-
for ROBOT
-
Bearring:
-
2BB
-
TORQUE:
-
60KG
-
Color:
-
Yellow
-
Certificate:
-
ROHS
-
Product name:
-
60kg digital servo
-
Function:
-
Remote control
-
Description:
-
large size
-
Feature:
-
big scale
-
Certification:
-
ce
-
Type:
-
Car
-
Power:
-
Battery
-
Plastic Type:
-
ABS
-
Scale:
-
1:5
-
Radio Control Style:
-
RC Model
-
Material:
-
METAL
-
Brand Name:
-
fitec
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FT6560M
-
large 30kg metal gears servo:
-
1:5 car
-
metal gears:
-
for ROBOT
-
Bearring:
-
2BB
-
TORQUE:
-
60KG
-
Color:
-
Yellow
-
Certificate:
-
ROHS
-
Product name:
-
60kg digital servo
-
Function:
-
Remote control
-
Description:
-
large size
-
Feature:
-
big scale
-
Certification:
-
ce
-
Type:
-
Car
-
Power:
-
Battery
-
Plastic Type:
-
ABS
-
Scale:
-
1:5
-
Radio Control Style:
-
RC Model
-
Material:
-
METAL
-
Brand Name:
-
fitec

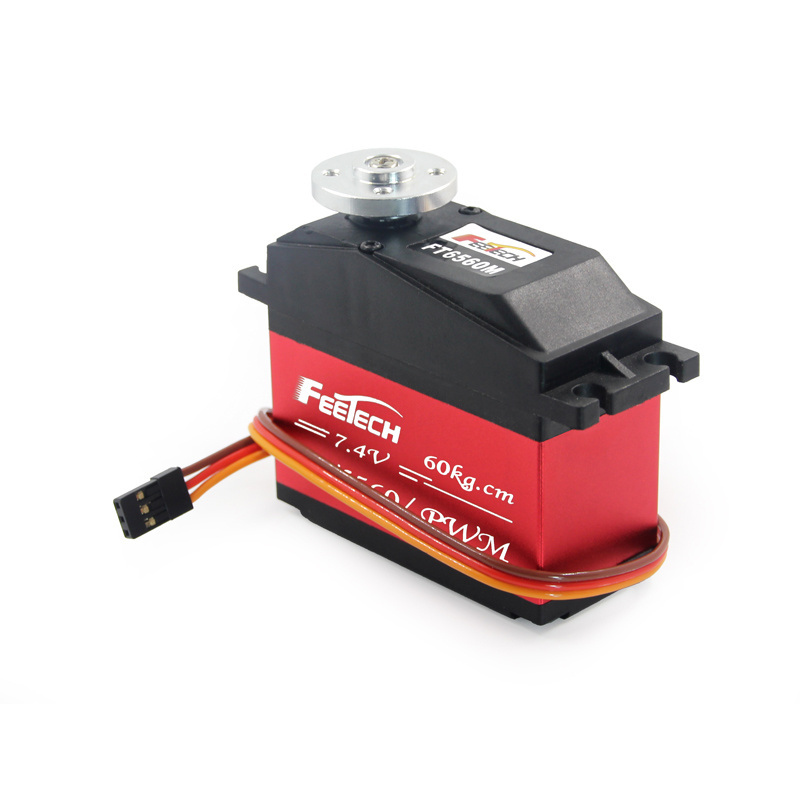

FT6560M 1/5 Car servo 60KG Metal Gear High Torque Servo
-Large digital metal gears servo 2BB
-Operating Voltage:6-7.4Volts
-Interface: (like JR)
-Wire length: 25cm
0.15sec/60degree (6V)
0.13sec/60degree (7.4V)
48kg.cm/382.6oz.in(6V)
65kg.cm/459.1oz.in(7.4V)
| Weight | 225g(0.88oz) |
| Size | 65.8x30x57.4mm |
| Application | For robot/industry |
Feature:
| -----CNC metal On the cover In the shell |
| -----High-precision Taiwan-made aluminium gears with hard anodizing |
| -----High Voltage Core Digital Servo |
| Dead band: | 4μs |
| Working frequence: | 1520μs / 330hz |
| Motor: | Core |
| Operating Speed6.0v | 0.15 sec/60° |
| Operating Speed7.4v | 0.13 sec/60° |
| Stall Torque 6.0v | 48 kg.cm |
| Stall Torque 7.4v | 62 kg.cm |
| Dimensions: | 65.8X30.2X57.4mm |
| Weight: | 200 g |
| Wire/Color: | JR 265 mm/ -Brown +Red S Orange |
| Bearing: |
2BB
|
The FT6560M is a giant-scale (also called 1/4-scale or mega-scale) digital servo from FEETECH that can deliver more than twice the torque of 60kg.cm at 7.4V or 48kg.cm at 6 V
This servo works with standard RC servo pulses and has a 12″ (30 cm) cable that is terminated with a standard Futaba J connector.
Unlike typical hobby servos, the FT6560M has an operating voltage range of 6 V to 7.4 V.
NOTE: This servo can draw bursts of current in excess of 9 A at 7.4 V,
so please make sure you have an appropriate power supply.
For comparison, a typical standard-size servo might draw around an amp when straining.
Specification:
| Model Type: | Giant Scale Digital Servo FT6560M |
| Motor Type: | Cored |
| Case material: | Aluminum Mddle Case |
| Gear material: | Titanium |
| Bearing Type: | 2BB |
| Weight: | 200g |
| Dimension: | 65.8X30.2X57.4mm |
| Operation Voltage: | 6-7.4V |
| Torque: | 48kg-cm/6.0V; |
| 60kg-cm/7.4V | |
| Speed: | 0.15sec/60°/6.0V; |
| 0.13sec/60°/7.4V | |
| Pulse Width: | 900-2100μs |
| Dead band width: | 2μs |
| Interface Type: | JR / FT / JST1.5 / JST2.0 / Other |
| Operating Temperature: | -20 to 60 centigrade |
| Splining: | 25T |
| Wire Length: | Based on your requirement |
| Waterproof: | No |
| Certification: | CE & RoHS |
| Application: | RC Airplane, Heli, Car, Boat, Robot and Retract Landing Gear |
If the servo does not match your requirements ,
please Let us know, we have hundreds of servos for
your optional, and we are professional servo manufacturer since 2008,
customizing servo at low cost as per requirements is our advantage.
Servo Applications:
1. Electric lock (anti-heft door lock servo)
2. Smart lamp Switch Servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Luggage case lock servo
6. Camera gimbal control servo
7. UAV heavy duty servo
7. Servo Release Servo Drop
9. Safety lock servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Robot arm servo
15. Medical equipment servo
16. Curtain Servo
17. Robot servo
18. Wheel servo
19. Car window winding servo
20.Housekeeping robot
Pictures
Our Quality:
Quality is the life of Honesty. We use only the best quality (original) components to ensure the standard of our product range is of the highest caliber.
All products we sold out are strictly selected and tested by our QC department.
Warranty:
We provide 1
-year warran
ty for all of our products.
Payment:
We accept payment via TT (Bank transfer), Paypal, Western Union and etc.
We accept bank transfer for large orders. For small order, you'd better pay Paypal.
Import taxes:
When you import products from another country, there is always the possibility of paying import taxes. We can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "gift" or other items and shipping in simple packaging.
Do you have any question? Contact me now! We look forward to cooperating with you!
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
