Quick Details
-
Chip:
-
M10
-
Frequency:
-
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
-
Power supply:
-
5V
-
Interface:
-
SH1.0-4P connector,PCB pad
-
Antenna:
-
Ceramic Antenna
-
Receiving channels:
-
72 search channels
-
Baud rate:
-
115200
-
Output protocol:
-
UBLOX
-
Output frequency:
-
1Hz-10Hz,default 10Hz
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SEQURE
-
Model Number:
-

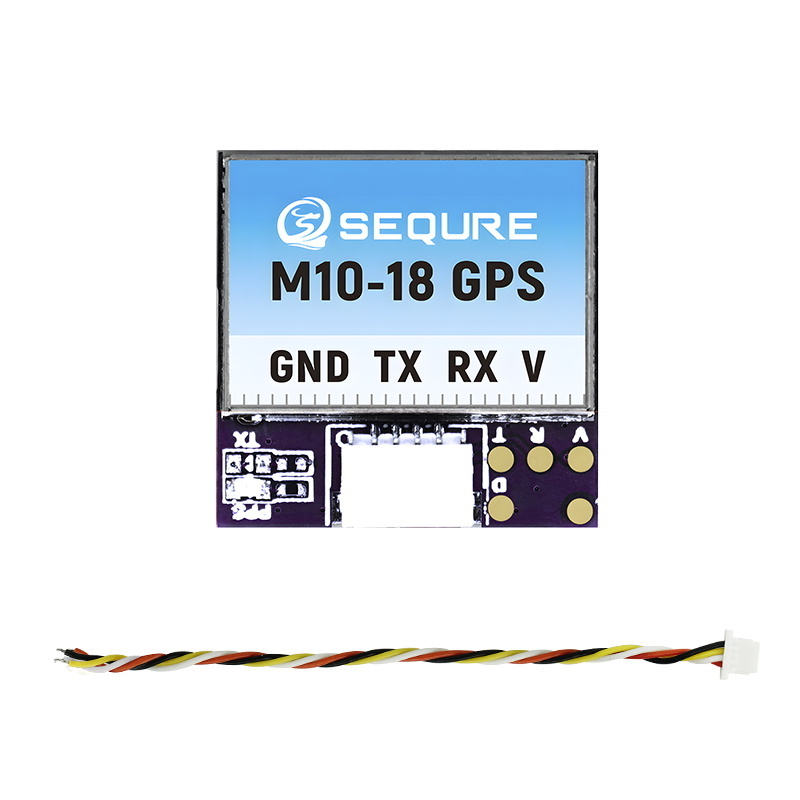

M10-18 GPS
-
Chip:
-
M10
-
Frequency:
-
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
-
Power supply:
-
5V
-
Interface:
-
SH1.0-4P connector,PCB pad
-
Antenna:
-
Ceramic Antenna
-
Receiving channels:
-
72 search channels
-
Baud rate:
-
115200
-
Output protocol:
-
UBLOX
-
Output frequency:
-
1Hz-10Hz,default 10Hz
Feature:
(1) Adopts 10th generation chip to design the u-blox output protocol and 10Hz output frequency, lower power consumption, and fast positioning.
(2) High-quality ceramic antenna with strong performance and effective reception of satellite signals.
(3) M10-25Q integrates QMC5883L compass for a wider range of applications
(4) Miniaturized and multi-specification design, easy to install, suitable for the installation of drones of various sizes on the market.
(5) Supports two connection methods: direct plug-in and soldering pad, with strong compatibility.
Parameters:
|
Model |
M10-12 GPS |
M10-18 GPS |
M10-25Q GPS |
|
M10 |
M10 |
M10 |
|
|
Frequency |
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
|
|
5V |
5V |
||
|
Size |
12*16*4.5mm |
18*18*8mm |
25*25*8mm |
|
Weight |
2.3g |
7.2g |
12.2g |
|
Interface |
SH0.8-4P connector , PCB pad |
SH1.0-4P connector,PCB pad |
SH1.0-6P connector, PCB pad |
|
Antenna |
Ceramic Antenna |
Ceramic Antenna |
Ceramic Antenna |
|
Receiving channels |
72 search channels |
72 search channels |
72 search channels |
|
Baud rate |
115200 |
115200 |
115200 |
|
Output protocol |
UBLOX |
UBLOX |
NMEA,UBLOX dual protocol,
|
|
Compass |
/ |
/ |
|
|
Output frequency |
1Hz-10Hz,default 10Hz |
1Hz-10Hz,default 10Hz |
1Hz-10Hz,default 10Hz |
|
Speed accuracy |
0.05m/s |
0.05m/s |
0.05m/s |
|
Horizontal positioning accuracy |
2D ACC1.5m( open-air ) |
2D ACC1.5m( open-air ) |
2D ACC1.5m( open-air ) |
|
Receive sensitivity |
Trace-162dBm , capture-160dBm |
Trace-162dBm , capture-160dBm |
Trace-162dBm , capture-160dBm |
|
Working temperature |
-40℃ ~ + 85℃ |
-40℃ ~ + 85℃ |
-40℃ ~ + 85℃ |
|
Storage temperature |
-40℃ ~ + 105℃ |
-40℃ ~ + 105℃ |
-40℃ ~ + 105℃ |
Package:
GPS×1
Cable×1
