- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Tenveo
-
Model Number:
-
TEVO-VLGROUP-12U
-
Camera:
-
12x optical zoom
-
Resolution:
-
4K30,1080P-60/50/30/25
-
Video format:
-
H.264, H.265, MJPG, YUY2, NV12
-
FOV:
-
70.82°
-
Speakerphone:
-
8000 mAh battery
-
Acoustic echo cancellation(AEC):
-
>65dB
-
Speaker Volume:
-
120dB
-
Pickup Range:
-
6m(Radius)
-
Hub interface:
-
DP*2; Power interface*1; USB Type-C*1
-
Warranty:
-
3 Years
Quick Details
-
Type:
-
Audio Conference System, Video Conference System
-
Function:
-
Video conferencing
-
Place of Origin:
-
Shenzhen,China
-
Brand Name:
-
Tenveo
-
Model Number:
-
TEVO-VLGROUP-12U
-
Camera:
-
12x optical zoom
-
Resolution:
-
4K30,1080P-60/50/30/25
-
Video format:
-
H.264, H.265, MJPG, YUY2, NV12
-
FOV:
-
70.82°
-
Speakerphone:
-
8000 mAh battery
-
Acoustic echo cancellation(AEC):
-
>65dB
-
Speaker Volume:
-
120dB
-
Pickup Range:
-
6m(Radius)
-
Hub interface:
-
DP*2; Power interface*1; USB Type-C*1
-
Warranty:
-
3 Years
Product Description
Details Images

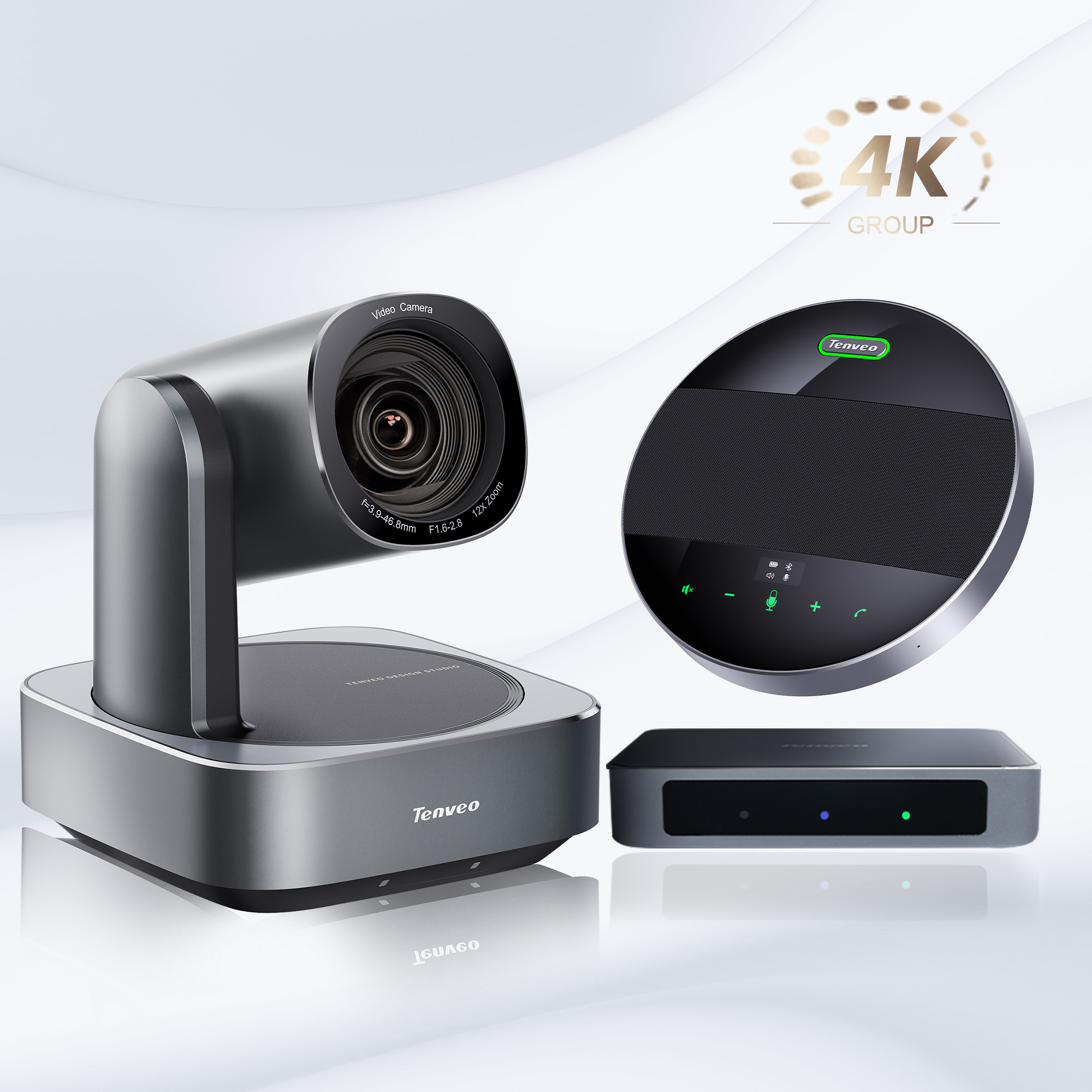

The Tenveo 4K All in one video and audio conference group is the best choice for medium to large conference room. The conference system included a 4K Ultra HD 12X optical zoom PTZ camera, a 360° Voice pick up bluetooth speakerphone and a hub. The 4K enterprise-quality video conferencing system takes anytime, anywhere video collaboration to a new model.
Bluetooth 5.0 Speakerphone, 360° Voice Pickup,6m Pickup Radius
Equipped with intelligent environmental noise-reduction and echo cancellation technology, and smart voice enhancement, the
speakerphone could deliver a solid and superior sound clarity. The built-in 360°omnidirectional microphones with a pick up radius of 6m(20ft).
With intelligent voice recognition, the LED indicator light can clearly recognize the direction of speaker.
speakerphone could deliver a solid and superior sound clarity. The built-in 360°omnidirectional microphones with a pick up radius of 6m(20ft).
With intelligent voice recognition, the LED indicator light can clearly recognize the direction of speaker.
1. Compatible with Zoom, Skype for business, Microsoft Lync(Teams), VooV Meeting, CISCO WebEx and other conferencing software.
2. Make sure your internet Upload/download speeds exceed at least 2M bit per second(>256KB/s). System Requirements: Windows 7or
higher,Mac OS×10.7 or higher,Linux.(Required to support UVC)
controller. The HUB has 4 interfaces. 2*DP Ports connect to camera and speakerphone, a USB-C connects to your PC, and a power hole
for power supply.
Product Parameters
|
HD Conference Camera
|
|
|
||
|
Optical Zoom
|
12x zoom
|
|
||
|
Image Sensor
|
1/2.8" SONY CMOS
|
|
||
|
Effective Pixels
|
8.29MP
|
|
||
|
Lens
|
f=3.9mm-46.8mm
|
|
||
|
Aperture
|
F1.6-2.8
|
|
||
|
Video Format
|
4K30,1080P-60/50/30/25, 720P-60/50/30/25
|
|
||
|
|
H.264, H.265, MJPG, YUY2, NV12
|
|
||
|
Horizontal Angle
|
70.82°(W)-6.48°(T)
|
|
||
|
Focus
|
Auto / Manual
|
|
||
|
Digital Noise Reduction
|
2D & 3D Noise Reduction
|
|
||
|
Exposure
|
Auto / Manual
|
|
||
|
Video Interfaces
|
HDMI, DP
|
|
||
|
Video Compression Format
|
H.264, H.265, MJPG, YUY2
|
|
||
|
Control Protocol
|
VISCA/Pelco-D/Pelco-P
|
|
||
|
Baud Rate
|
9600/4800/38400/2400
|
|
||
|
Pan/Tilt Rotation
|
±175°,-90°～+90°
|
|
||
|
Pan Control Speed
|
0.1 -80°/sec
|
|
||
|
Tilt Control Speed
|
0.1-60°/sec
|
|
||
|
Preset Number
|
255 presets by Pelco-D,32 presets by Pelco-P, 7 presets by Visca
(10 presets by remote controller) |
|
||
|
Speakerphone
|
|
|
||
|
Acoustic echo cancellation(AEC):
|
＞65dB
|
|
||
|
Speaker Power
|
4Ω 5W
|
|
||
|
Speaker Volume
|
120dB
|
|
||
|
Response
|
135Hz-20Hz
|
|
||
|
Pickup Range
|
6m(Radius)
|
|
||
|
Microphone Sensitivity
|
-27dBFS
|
|
||
|
SNR(Signal to Noise Ratio)
|
62dB
|
|
||
|
Interface
|
DP interface
|
|
||
|
Hub
|
|
|
||
|
Interface
|
DP*2; Power interface*1; USB Type-C*1
|
|
||
|
Power Supply
|
DC 12V
|
|
||
|
USB Cable
|
3m USB cable*1
|
|
||
|
Connection Cable
|
5m DP cable*2
|
|
||
|
General Parameter
|
|
|
||
|
Operation Systems
|
Windows 7 or higher; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.) Compatible with Zoom, MS Teams, Skype and
etc. |
|
||
|
Input Voltage
|
DC 12V
|
|
||
|
Input Current
|
2.0A(Max.)
|
|
||
|
Store Temperature
|
-10℃～+60℃
|
|
||
|
Store Humidity
|
20%～90%
|
|
||
|
Working Temperature
|
-10℃～+50℃
|
|
||
|
Working Humidity
|
20%～80%
|
|
||
|
Dimension（W*H*D）
|
Camera: 171.6*192.6*171.6mm; Speakerphone: 180mm*37.4mm; Hub: 98*98*20m
|
|
||
