Quick Details
-
Filling Accuracy:
-
+-2ml
-
Voltage:
-
220V / 380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONETOP
-
Dimension(L*W*H):
-
1000*900*1900mm
-
Weight:
-
400 KG
-
Experience:
-
15 Years Experience in Water Industry
-
Commission:
-
Welcome to Introduce New Customers
-
One-Stop Shopping:
-
Your Best Choice
-
Advantage:
-
Give You The Best Price
-
Sachet Water Business Plan:
-
Provided
-
Third Party Inspection:
-
Accept
-
Transport Service:
-
Competitive Price
-
Combined Shipment:
-
Cooperate
-
PE Film Material Purchase:
-
Cooperative Factory
-
PE Film Design:
-
For free
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Milk, Water, Juice
-
Filling Accuracy:
-
+-2ml
-
Voltage:
-
220V / 380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONETOP
-
Dimension(L*W*H):
-
1000*900*1900mm
-
Weight:
-
400 KG
-
Experience:
-
15 Years Experience in Water Industry
-
Commission:
-
Welcome to Introduce New Customers
-
One-Stop Shopping:
-
Your Best Choice
-
Advantage:
-
Give You The Best Price
-
Sachet Water Business Plan:
-
Provided
-
Third Party Inspection:
-
Accept
-
Transport Service:
-
Competitive Price
-
Combined Shipment:
-
Cooperate
-
PE Film Material Purchase:
-
Cooperative Factory
-
PE Film Design:
-
For free
2000 Bags Per Hour (500m)

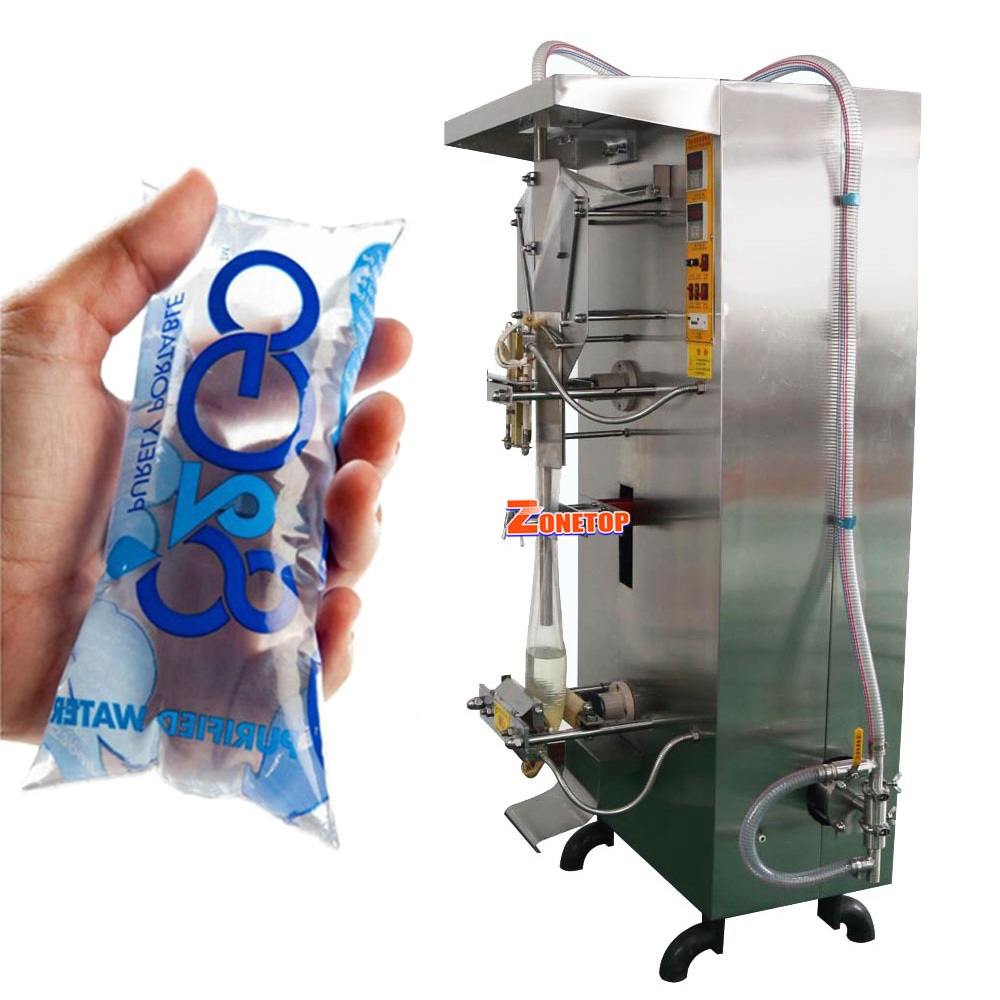

Sachet Water Filling Machine
Product Overview
1. What is sachet water machine?
Sachet water machine or named PE film sachet water filling machine is widely used to packing water into plastic sachet. It uses a single layer of PE film as the packaging materials. it can form the film to a bag and filling pure water into the bag at the same time. once finished then can got an final bag of pure water product.
Is the sachet water business profitable?
Sachet water business is highly profitable. The sachet water materials cost little while sachet water selling at 3 times price. bag water cost is very low, so that most people can easily paid it and will buy. And good quality sachet water can save a lot life and keep people health. Only an small invest in the bag filling machine and water purification machine, but finally will got about $100,000 profit per year.
3.Why does it still have the chance to start the Sachet Water business?
Because of big water company only aim big city and big Country. It is have a lot chance and room in some area which lack safe drinking water. And produce pure bag water is the most safe water in the world.
PRODUCT CONFIGURATION
|
No
|
Model
|
ZT-2000
|
|
1
|
Production Capacity
|
2000-2200Bags/Hour
|
|
2
|
Filling Range
|
100-600ml (1000ml need to be customized）
|
|
3
|
Precision
|
±1%
|
|
4
|
Voltage
|
220V/380v 50/60HZ
|
|
5
|
Power
|
1.6 KW
|
|
6
|
Firm Width
|
240mm/320mm
|
|
7
|
Customized Function
|
1.Ribbon Date Coding
2.Additional Anti-Dust Cover
3.Photocell Monitoring
4.Touch Screen Function
|
|
8
|
Packing Dimension
|
950×850×1850mm
|
|
9
|
Gross Weight
|
400KG
|
|
10
|
Packaging Details
|
Standard export wooden case
|
sachet pull to smooth filmSachet forming for forming the sachet bag
sachet pull to smooth film
vertical sealing heating knife
date marker for mark produce date on sachet water
horizontal sealing heating knife
Valve plug pump with check valve to prevent air fil
Model: ZT-1000
This series sachet machine is widely used for packing various kinds of liquid. such as pure water, milk, soybean milk, fruit juice, beverage, soy sauce, vinegar and wine. with all kinds of film. The complete packing process such as ultraviolet sterilization, bag-forming, dater printing, closing, sealing, cutting and counting can be accomplished automatically. The heat-sealing temperature is automatically controlled, machine is made of stainless steel and guarantee sanitation.
Basic Features:
Auto Film Feeding+ Vertical Forming Sealing + Horizontal Sealing + Quantitive Filling + UV System + Date Coding / Counting
Structure of Sachet Machine:
1. Touch liquid materials is 304 materials
2. Film Forming unit: is composed of film setting system, film guiding SS304 steel post, vertical thermal heating sealing rubber and the copper system, horizontal thermal sealing and cutting system. The film will be forming according to the film setting process, to make the bags ready for filling water.
3. Filling unit: is composed of water pump, inlet control valve, Quantities will be depending on the piston type filler.
4. Auto sealing system: is composed of the film inlet guiding post, wheel, and the thermal heating modular, thermal heating tube, temperature controller, and pressure adjusting spring valve.
5. Film output system: is composed of SS304 sliding rail plate.
6. Electrical control system: is composed of control panel, wiring, and the AC contactor system.
7. UV sterilizer and date coder is equipped on the machine
8. Data counting unit is equipped on the front panel.
Sachet Water Finish Products:
Customer Feedback
Add it to your
favorites
to revisit it later.
you are also welcome to add my Whats up +86 135-4217-2182
And subscribe for more project cases!
https://youtube.com/playlist?list=PLjYtP891VIuQBzh2dVnzX4XN0fvz2IQ7M
Sachet Water Plant Machinery Flow Chart
For Water Purification
Design Base:
1.1) Raw water:Underground water (It is better to provide the raw water quality analysis report to us, showing the TDS, PH, hardness, Fe, Mn,etc..)
1.2) Produced water’s application: Drinking
1.3) Capacity:500LPH
1.4) Designed recovery: 50%-60%
1.5) Salt rejection rate:≥ 99.6%.
1.6) Voltage: AC220V/380V 50/60HZ, Power: 1.5KW.
FAQ
Q1. How does the sachet water filling machine work?
A1:
The back of the sachet water filling machine’s box can hold an roll film. Worker can put an roll film about 20 Kg in it.
Then pump will automatic filler water into the bag whole the forming unit forming the film into an bag.
Then the knife will automatic cut and heating sealing the bag film.
The machine is the most simple and smart filling machine in the world.
Q2. Where can I find the source of consumables, such as PE film?
A2: If you are interesting in the sachet water business, we can offer an total solution including the water purification machine and sachet water filling machine, packaging plastic materials and film design.
