Quick Details
-
Brand Name:
-
TMOK
-
Standard or Nonstandard:
-
Standard
-
Main material:
-
Hpb 58-3 brass
-
Name:
-

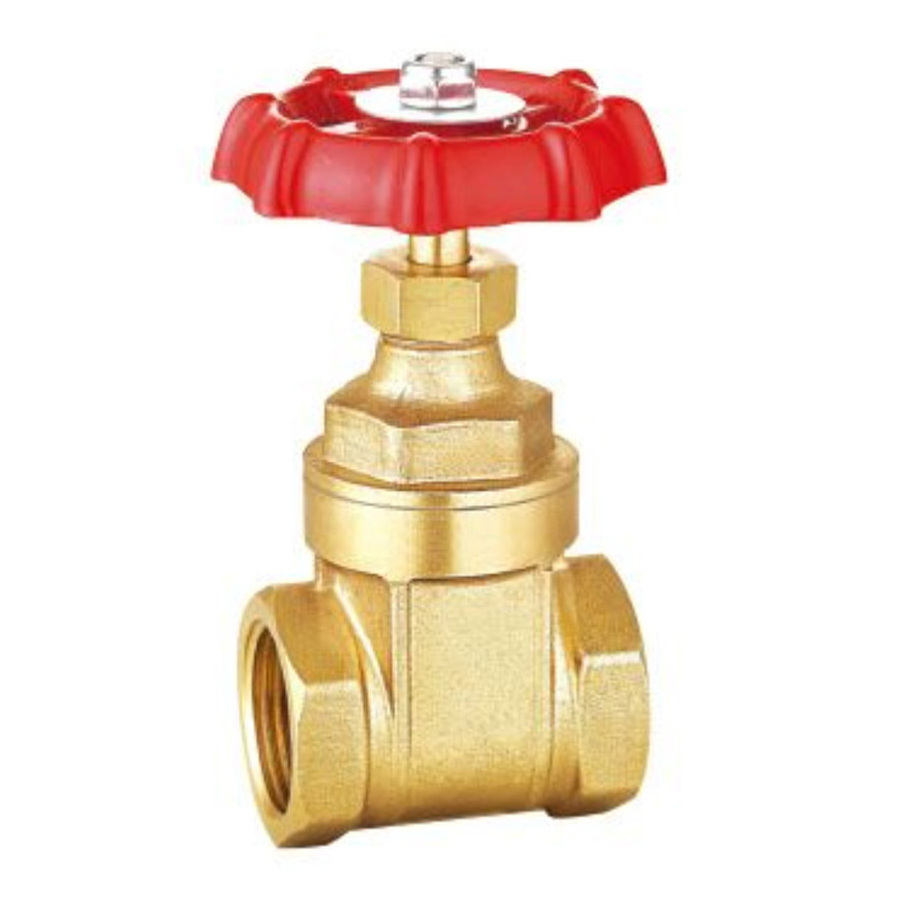

Brass gate valve
-
In stock:
-
No
-
Customized:
-
Yes
-
Lead time:
-
35 days
-
Working Temperature:
-
-10-110℃
-
PN:
-
16
-
Certificate:
-
ISO 9001:2008
-
Working medium:
-
Water
Quick Details
-
Port Size:
-
1/2"-1"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
TK-101
-
Brand Name:
-
TMOK
-
Standard or Nonstandard:
-
Standard
-
Main material:
-
Hpb 58-3 brass
-
Name:
-
Brass gate valve
-
In stock:
-
No
-
Customized:
-
Yes
-
Lead time:
-
35 days
-
Working Temperature:
-
-10-110℃
-
PN:
-
16
-
Certificate:
-
ISO 9001:2008
-
Working medium:
-
Water
Why Choose Us
Product Paramenters
|
Certificates:
|
ISO9001/CNAS/TUV/SGS/CE/ACS/WRAS
|
|
Brass Material
|
Brass(CuZn39Pb3, CZ121, C37710, CW614N, CW617N, DZR, etc)
|
|
Surface
|
Natural brass/Nickel plated /Chroming
|
|
Ball Material
|
Chrome Plated Brass/Iron can be customized if needed
|
|
Handle Material
|
Steel
|
|
Body Seal Material
|
PTFE
|
|
Connection Type
|
|
|
Sample Time
|
1-3 days for Packing and 10 days for delivery by Fedex/DHL/UPS/TNT
|
|
Packing
|
opp bag inner, inner box, out carton and pallet.
|
|
Test Pressure
|
12 bar/174 psi
|
|
Working Temperature
|
-20℃ to +120℃/4℉ to 248 ℉
|
Details Images
What is a gate valve?
Gate valve, also known as a sluice valve, is a valve which opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar, so gate valves are often used when a straight-line flow of fluid and minimum restriction is desired.
How does a gate valve work?
A brass valve is a type of valve that regulates fluid flow through pipes. This type of valve typically has a stem and screw mechanism that can be rotated to stop or start the flow in one direction. Gate valves usually have an opening gate, which allows for quick closing when maintenance (or emergency) work is required on the system. Brass gate valves are often used in water systems to withstand high pressure and temperature fluctuations. However, Brass is also a relatively expensive material, so it’s not commonly used for other fluid systems.It is usually used in water systems to regulate fluid flow through pipes.
A brass gate valve can also be used in other fluid systems; however, it’s not commonly used for this purpose because Brass is expensive.Its opening gate allows for quick closing when maintenance (or emergency) work is required on the system.The screw mechanism and stem on a brass gate valve can be rotated to stop or start the flow in one direction.
This type of valve typically has a stem and screw mechanism that can be rotated to stop or start the flow in one direction.Gate valves usually have an opening gate, which allows for quick closing when maintenance (or emergency) work is required on the system.When closed, the valve forms a watertight seal which prevents fluid from flowing through it.There are a total of four sizes of brass gate valves which are:
-The size being 1/2″,3/4,1″,11/4″,11/2″,2″,21/2″,3″ and 4″
Gate valves have an opening gate, which allows for quick closing when maintenance (or emergency) work is required on the system. A Brass Gate Valve can also be used in other types of fluid systems;
Brass Gate Valve vs. Stainless Steel Gate Valve?
Brass is more efficient in welding than stainless steel.Brass is less costly than stainless steel
Though stainless is more expensive than brass it is moreresistant to corrosion and
Stainless steel is preferred in the food industry.
