Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TDO
-
Resolution:
-
480*480
-
Interface:
-
RGB/MIPI/RS232/485
-
Product Name:
-
smart lcd knob switch
-
Brightness:
-
300
-
touch IC:
-
CST826
-
Viewing Angle:
-
IPS Fulll Angle
-
Touch panel:
-
Capacitive Touch Optional
-
Active Area(mm):
-
53.28*53.28
-
Outline Dimension(mm0:
-
71.27*71.27*3.43
Quick Details
-
Type:
-
TFT lcd, TFT LCD
-
Display Size:
-
2.1inch
-
Supplier Type:
-
manufacture
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TDO
-
Resolution:
-
480*480
-
Interface:
-
RGB/MIPI/RS232/485
-
Product Name:
-
smart lcd knob switch
-
Brightness:
-
300
-
touch IC:
-
CST826
-
Viewing Angle:
-
IPS Fulll Angle
-
Touch panel:
-
Capacitive Touch Optional
-
Active Area(mm):
-
53.28*53.28
-
Outline Dimension(mm0:
-
71.27*71.27*3.43

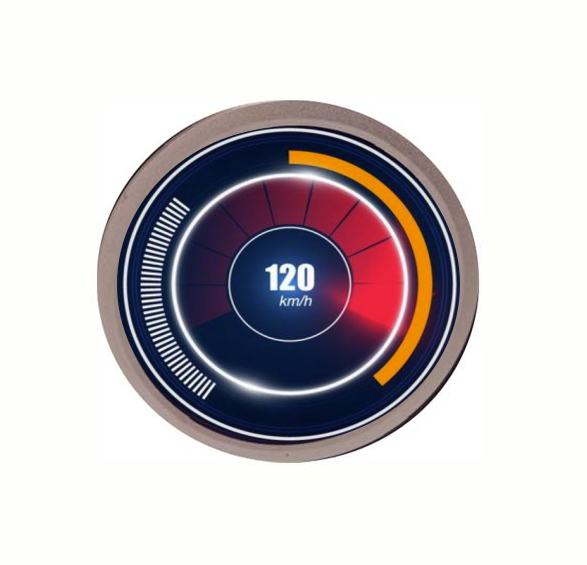

circular lcd screen 2.1inch touch screen round lcd display with capacitive touch
| General Specifications | ||
| Display Spec | LCD type | 2.1inch |
| Resolution (H*V) | 480(RGB)*480 | |
| Technology Type | a-SiTFT | |
| Pixel Configuration | R.GB. Vertical Stripe | |
| Display Mode | Normally Black | |
| Viewing Direction | ALL | |
| Gray Scale Inversion Direction | ||
|
Mechanical
Characteristics |
OutineDimensions W*H*T (mm) | 71.27* 71.27*3.43 |
| Active Area(mm) | 53.28*53.28 | |
| CTP View Area(mm) | / | |
| With/without Touch screen | With CTP | |
| Connector Type | 0.5 PITCH 40PIN | |
| Backight Type | LED | |
| Weight (9) | TBD | |
|
Electrical
Characteristics |
Display Interface | 3SPI+18RGB/MIPI/RS 232/485 |
| Number of color | 262K | |
| Display Driver IC | ||
| Touch Driver IC | CST826 | |
