Quick Details
-
Product name:
-
hdmi extender over cat5e/6
-
Input:
-
hdmi rj45
-
Output:
-
hdmi 3.5mm audio
-
Function:
-
extension hdmi signal
-
Feature:
-
support 4K and long range of extension
-
Material:
-
Metal Shell
-
Resolution:
-
4K@30Hz
-
Warranty:
-
1 year
-
Power supply:
-
12V Adapter
-
HDMI version:
-
HDMI 1.4
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
HY-RJ2022-A-1.4
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
hdmi extender over cat5e/6
-
Input:
-
hdmi rj45
-
Output:
-
hdmi 3.5mm audio
-
Function:
-
extension hdmi signal
-
Feature:
-
support 4K and long range of extension
-
Material:
-
Metal Shell
-
Resolution:
-
4K@30Hz
-
Warranty:
-
1 year
-
Power supply:
-
12V Adapter
-
HDMI version:
-
HDMI 1.4

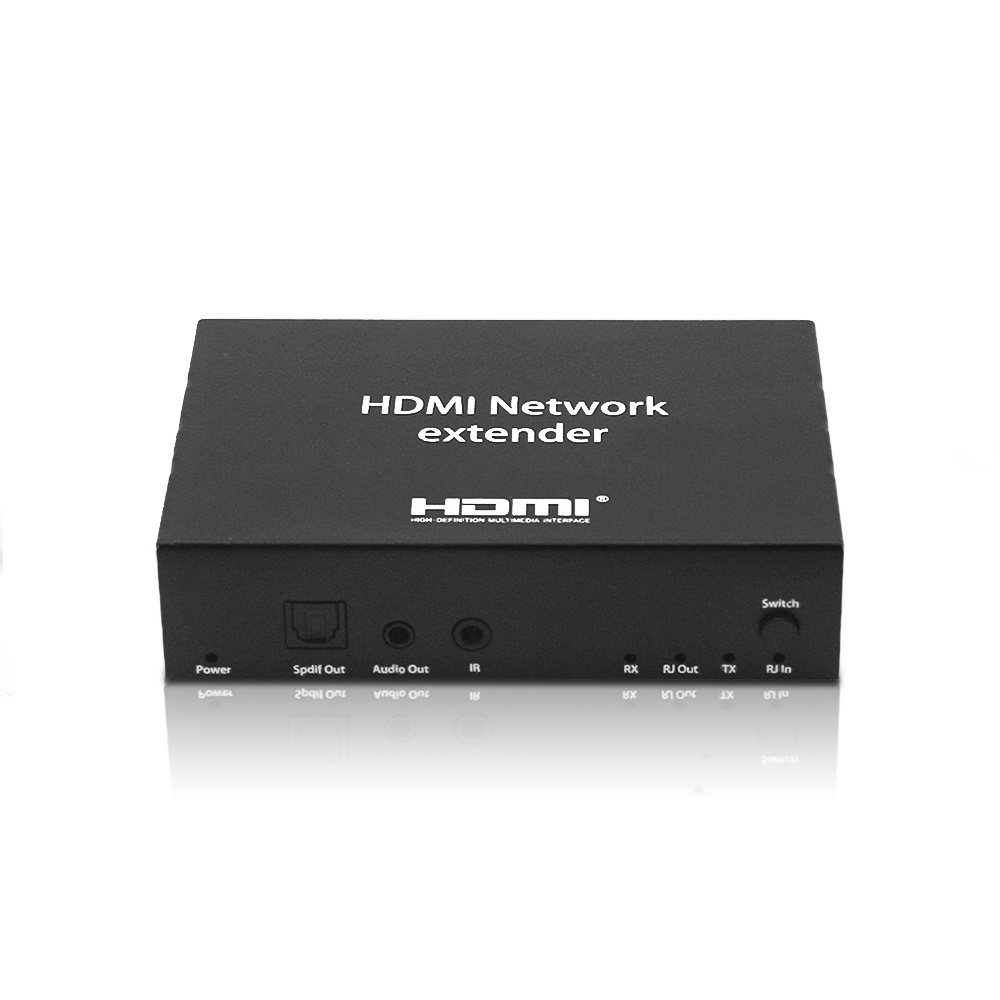

HDMI Extender transmitter receiver 100M HDMI V1.4 support 4K @30Hz KVM extender with IR extension by cat-5e/6 cable rj45 port
The 4K 90M HDMI extender uses one single cat-5E or cat-6(recommended) cable instead of HDMI cable, you can extend the 4K@30Hz signal to 90 meters .The purpose of the extender is to achieve long-distance signal transmission with low-cost wires.
One unit can work as Transmitter and also can work as receiver. Just simply switch it by pressing a button.
SPECIFICATIONS
Length of CAT-5E/CAT-6 cable between Rx and TX …..….…................... up to 60 meters
HDMI input …..………...............….........…................. 4K/1080p/720p/576p/576i/480p/480i
Support audio format .……………......………………………….................. DTS/Dolby/LPCM
HDMI output …..…………….…...….....………............ 4K/1080p/720p/576p/576i/480p/480i
Max bandwidth ……………………......…………………………………….................. 340MHz
Max baud rate ……………….………….……….....…………………….................. 3.4Gbpsx3
Input video signal ………....................….………..………..…………….…… 0.5~1.5Volts p-p
Output DDC signal ……………………...……..……………...................…… 5Volts p-p (TTL)
Input HDMI cable distance ………….…...................... ≤15m AWG26 HDMI standard cable
Output HDMI cable distance ………….….................... ≤15m AWG26 HDMI standard cable
TX Max working current ………………………...………………………….................... 350mA
RX Max working current ……………...………...………………………….................... 200mA
Power adapter format …................. Input:AC (50HZ, 60HZ) 100V-240V; Output: DC1V/1A
Operating Temperature range ……..………...……….…………...................… (-15 to +55℃)
Operating Humidity range ….………..….….................… 5% to 90%RH (No Condensation)
Package Contents
Before attempting to use this unit,please check the packaging and make sure the following items are contained in the shipping carton:
1. Transmitter x1
2. Receiver x1
3. IR cable x2
4. 12V/1A Power adapter x1
5. User Manual x1
