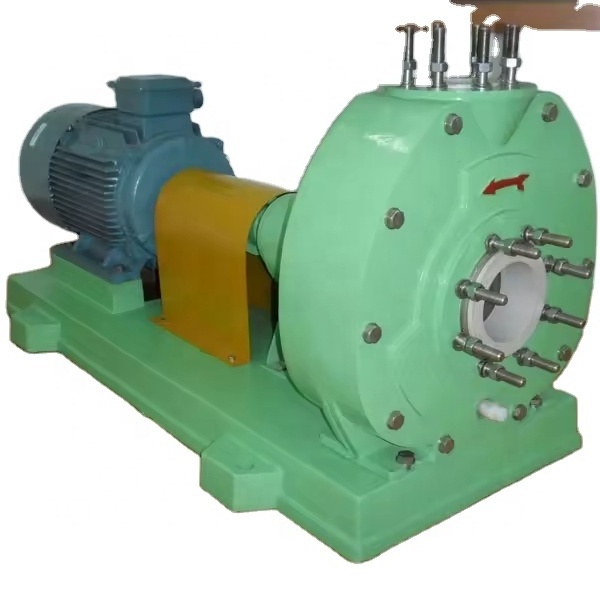

PVDF material pump RCNKU100-80-160 horizontal single-stage end-suction top-discharge centrifugal pumps standardized to ISO 2858

RCNKU type is the single-stage horizontal centrifugal pump with SIC/SICA/ITON mechanical seal system.Connected to the driving part by means of a spacer coupling(back-pull-out version)and installed on a common baseplate,the design is fully compliant with standard DIN22858/ISO2858.The metal armouring applied to components made from thermoplastic resins,such as PP,PPH,PVDF,FEP,PEHD,ensures dimensional stability and mechanical strength .CPD type pump can mount types of single or double mechanical seal of top domestic and international brands.which can work with corrosive liquids containing suspended solids or crystals.Generously-sized shaft,bearings and closed impeller make this series of Hi-Tech Pumps ideally suited for the most demanding process services.

▲Applications Because of its remarkable features,plastic PIONEER pumps are used in many different industrial sectors.with a wide range of applications, i.e. the following ones: Chemical Industry: HCI, NaOCI, H2SO4, NaOH, HNO3, HF... Water treatment: FeCL3,AI2(SO4)3,aluminium polychloride,demineralized water,osmosis sater,membrane cleaning... Surface treatment: acid degrease, pickling, galvanizing, anodizing ... Fertilizer industry : H3PO4, H2SO4, H2SiF6, NH4NO3, liquid fertilizer... Thermal and Nuclear power plants : chlorination of cooling water, neutralization ponds... Fine chemicals : intermediate products, synthesis reactions, water treatment, cleaning... Mining: gold, copper, platinum, aluminium, leach liquids... Sea water: aquariums, fish farms, zoos... * Performance data for 50/60 Hz operation Pump capacity [Q] up to 1400m3/h Total differential head [H] up to 100m Motor rating [P] up to 200KW Shaft Seal Single or double mechanical seal A Flange connection Standard design to DIN2501,PN16 Alternatively:- to ANSI B16.5,Class 150, -toGB/T9116 PN16 * Drive Three-phase a.c. motor, frame type B3 to IEC, BS or NEMA; type of protection, flameproof enclosure and motor voltage to customer specifications. ▲ Painting Corrosion protection of metallic components by multiple coatings of epoxy resin paint ▲ Design Chemical Norm Pumps ▲ Materials Parts of the pump in contact with the liquid are manufactured from the following standard plastics: Polypropylene PP Temperature range from 0 Deg.C to+100 Deg.C High Molecular Polyethylene PE Temperature range from -50 Deg.C to+80 Deg.C Polyvinylidene Fluoride PVDF Temperature range from -20 Deg.C to+130 Deg.C
