Quick Details
-
Brand Name:
-
DiGuang
-
Model Number:
-
DG-S15K-W12V-18/100
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
DC12V
-
Lamp Luminous Flux(lm):
-
150
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-30 - 60
-
Emitting Color:
-
Cold white,White,Warm White,Warm Yellow
-
LED Quantity:
-
18LED/STRIP
-
LED Type:
-
SMD3030 for Sanan Chip
-
Warranty:
-
3years
-
Beam Angle:
-
15°*45°
-
Size:
-
1000*20*1.4mm
Quick Details
-
Color Temperature(CCT):
-
10000K, 15000-25000K
-
Control Mode:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DiGuang
-
Model Number:
-
DG-S15K-W12V-18/100
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
DC12V
-
Lamp Luminous Flux(lm):
-
150
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-30 - 60
-
Emitting Color:
-
Cold white,White,Warm White,Warm Yellow
-
LED Quantity:
-
18LED/STRIP
-
LED Type:
-
SMD3030 for Sanan Chip
-
Warranty:
-
3years
-
Beam Angle:
-
15°*45°
-
Size:
-
1000*20*1.4mm

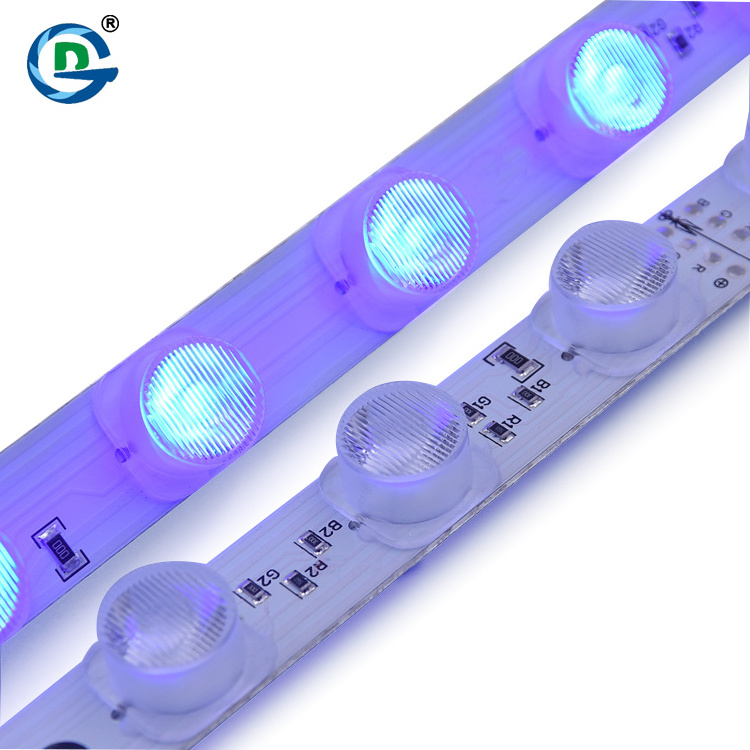

Hot sale 12v smd3030 edge light high power led strip led 18leds rigid bar with lens
Best For: 10 -20 thickness of single-side light boxes
Application: LED diffuse reflection light as a backlight be applied to Fabric light box,Diffuse reflection lights with have the high brightness,showing advertisement to customers in the most confortable way.
Product Advantages:
>IP65 Waterproof
>15°*45° Beam Angle,High Efficiency,PMMA Optical Lens;
>Private mold,Good sealing and safety;
>Sanan Chip,Lumen reach 150LM/LED,Lifetime>50000Hours
>1mm²Tinned copper wire:High fireproof,high temperature and cold resistance.
>Shutter-type installation ,easy operation
>3years warranty
| Size Details | ||||||||
| Model | Size | LED | LED Qty | Lumen | Color | Current | Voltage | Power |
| DG-S15K-W12V-18/100 | 990*20*1.4mm | SMD3030 | 18LED | 150LM/LED | 15000K | 100mA/LED | DC12V | 27W |
| DG-S15K-W12V-9/50 | 50*20*1.4mm | SMD3030 | 9LED | 150LM/LED | 15000K | 100mA/LED | DC12V | 13.5W |
| DG-S15K-W12V-6/30 | 30*20*1.4mm | SMD3030 | 6LED | 150LM/LED | 15000K | 100mA/LED | DC12V | 9W |
