Quick Details
-
Dimension(L*W*H):
-
1300*1320*2400mm
-
Weight:
-
672 kg
-
Product name:
-
Industrial Dust Collector
-
Application:
-
Industrial Dust Removal
-
Main function:
-
Removing Industrial Dust
-
Usage:
-
Filter Industry Dust
-
Keyword:
-
Low Noise Dust Colector
-
Power:
-
5.5KW
-
Airflow:
-
4000m³/h
-
Voltage:
-
380V/50HZ
-
Filter:
-
4
-
Filter cleaning method:
-
Pulse jet
Quick Details
-
Marketing Type:
-
New Product
-
Place of Origin:
-
China
-
Brand Name:
-
HUA XIA STAR
-
Dimension(L*W*H):
-
1300*1320*2400mm
-
Weight:
-
672 kg
-
Product name:
-
Industrial Dust Collector
-
Application:
-
Industrial Dust Removal
-
Main function:
-
Removing Industrial Dust
-
Usage:
-
Filter Industry Dust
-
Keyword:
-
Low Noise Dust Colector
-
Power:
-
5.5KW
-
Airflow:
-
4000m³/h
-
Voltage:
-
380V/50HZ
-
Filter:
-
4
-
Filter cleaning method:
-
Pulse jet
High efficiency filter cartridge dust collector/industrial air filter cartridge cleaner/ extraction system
Product Description

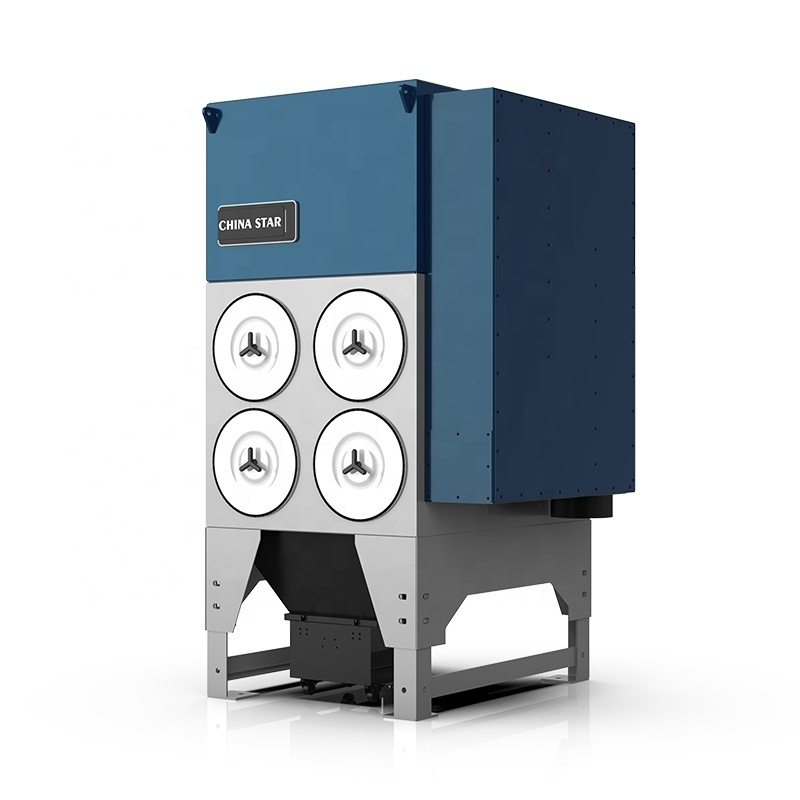

Huaxia-Star CSDC series laser industrial dust collector is an industrial dust collector focusing on the laser cutting industry. It has the characteristics of large air volume, automatic pulse cleaning, using nano flame-retardant filter materials, stable and reliable design.
|
Model
|
CSDC-4
|
CSDC-6
|
CSDC-8
|
|
Power
|
5.5KW
|
7.5KW
|
11KW
|
|
Airflow
|
4000m³/h
|
7500m³/h
|
8000m³/h
|
|
Voltage
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
|
Dia. air inlet
|
250mm
|
250mm
|
300mm
|
|
Filter
|
4
|
6
|
8
|
|
Filter area
|
92m2
|
138m2
|
184m2
|
|
Max air pressure
|
0.5-0.6MPa
|
0.5-0.6MPa
|
0.5-0.6MPa
|
|
Filter cleaning method
|
Pulse jet
|
Pulse jet
|
Pulse jet
|
|
Dimension [L*W*H]
|
1300X1320X2400
|
1300X1320X2800
|
2200x1320x2400
|
|
noise
|
≤80dB
|
≤80dB
|
≤80dB
|
|
Filter efficiency
|
99%
|
99%
|
99%
|
Applications
Laser cutting, plasma cutting, grinding machine and other industries; composite material processing dust removal, and powder recovery and many other occasions; heavy-duty occasions such as automated assembly lines.
Features
1. The fan complies with the AMCA standard, the impeller is directly connected to the motor, with high efficiency and maintenance-free. Noise as low as 80 decibels.
2. The filter cartridge is made of nano flame-retardant material, the surface wind speed is 0.8~1.2m/min, which can filter 99.9% dust at 0.3 microns.
3.Automatic pulse dust removal ,which are sprayed once every 15 minutes to avoid clogging of the filter cartridge and prolong the service life of the filter cartridge.
4. It has an integrated spark catcher to ensure the safe and reliable operation of the machine and prevent fire hazards. It is equipped with a movable large-capacity dust collecting bucket, which is safe, fast and easy to move.
2. The filter cartridge is made of nano flame-retardant material, the surface wind speed is 0.8~1.2m/min, which can filter 99.9% dust at 0.3 microns.
3.Automatic pulse dust removal ,which are sprayed once every 15 minutes to avoid clogging of the filter cartridge and prolong the service life of the filter cartridge.
4. It has an integrated spark catcher to ensure the safe and reliable operation of the machine and prevent fire hazards. It is equipped with a movable large-capacity dust collecting bucket, which is safe, fast and easy to move.
