Quick Details
-
Name:
-
Wet jet nozzle
-
Common type:
-
Straight Bore Nozzles
-
Model:
-
Wet abrasive blasting
-
Blast nozzle:
-
these nozzles are available in tungsten carbide, boron carbide
-
Feature:
-
wet abrasive blasting
-
Angular Nozzle:
-
B4C Ceramic angular nozzle for Sandblasting
-
Usage:
-
Can be used with your existing pressure blast equipment
-
Thread size:
-
American thread
-
Venturi Nozzle:
-
Boron Carbide Double Venturi Nozzles
Quick Details
-
Weight (KG):
-
10
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
boron carbide wet jet nozzle
-
Name:
-
Wet jet nozzle
-
Common type:
-
Straight Bore Nozzles
-
Model:
-
Wet abrasive blasting
-
Blast nozzle:
-
these nozzles are available in tungsten carbide, boron carbide
-
Feature:
-
wet abrasive blasting
-
Angular Nozzle:
-
B4C Ceramic angular nozzle for Sandblasting
-
Usage:
-
Can be used with your existing pressure blast equipment
-
Thread size:
-
American thread
-
Venturi Nozzle:
-
Boron Carbide Double Venturi Nozzles

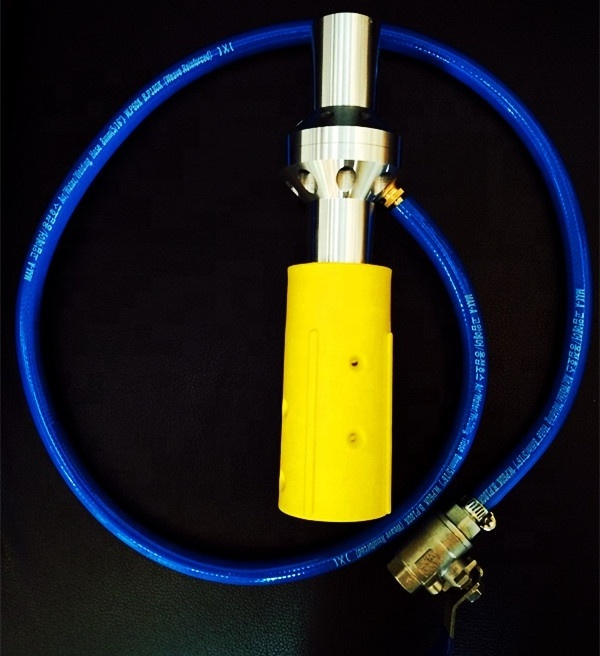

wet jet nozzle
Wet spray nozzle is a kind of new nozzle that is developed on the foundation of Double Venturi Nozzles.
Wet spray nozzle aborbs water when spraying sands. The water becomes mist, decreasing dusts produced
by spraying sands. This process strongly improves the working condistions, which help workers decreasing
the prosibility of getting pneumoconiosis. Wet spray nozzle are widely used in steel structure, concrete,
marble, granite and ceramic spraying process.
Main application:
Widely used in Industrial production machines such as Sandblasting machines, hydraulic cutters, power plant boilers etc.
Advantage:
High temperature resistance, Abrasion-resistance, light unit weight, working life much longer than tradition material.
B4C specifications:
Density: 2.40-2.65 g/cm3
Elastic modulus: 510 Gpa
Knoop Hardness: 3300
Flexural strength: 400-650 Mpa
Compressive strength: 4100 Mpa
Fracture toughness: 4.5-7.0 Mpa.m1/2
Coefficient of thermal expansion: 4.5x106
Thermal Conductivity: 29 m0k
Maximum permissible service temperature in air: 1500℃
Boron carbide Sand Blasting nozzles high pressure boron carbide sandblaster nozzle
Regular size list
|
Diameter(mm) |
Diameter (mm) |
Length(mm) |
|
20 |
4 |
35 |
|
20 |
6 |
35 |
|
20 |
8 |
35 |
|
20 |
10 |
35 |
|
Diameter(mm) |
Diameter (mm) |
Length(mm) |
|
20 |
4 |
45 |
|
20 |
6 |
45 |
|
20 |
8 |
45 |
|
20 |
10 |
45 |
|
Diameter(mm) |
Diameter (mm) |
Length(mm) |
|
20 |
6 |
60 |
|
20 |
8 |
60 |
|
20 |
10 |
60 |
|
Diameter(mm) |
Diameter (mm) |
Length(mm) |
|
20 |
6 |
80 |
|
20 |
8 |
80 |
|
20 |
10 |
80 |
|
Diameter(mm) |
Diameter (mm) |
Length(mm) |
|
21 |
8 |
82 |
|
21 |
10 |
82 |
|
21 |
12 |
82 |
Other sizes:
|
Diameter(mm) |
Diameter (mm) |
Length(mm) |
|
15 |
6 |
55 |
|
15 |
8 |
55 |
|
25 |
8 |
60 |
|
25 |
10 |
60 |
|
25 |
12 |
60 |
|
30 |
8 |
40 |
|
30 |
10 |
40 |
|
30 |
12 |
40 |
|
30 |
14 |
40 |
Size for your reference:
We also can customized for you~
