Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINWAH
-
Dimensions(L*W*H):
-
2610mm*2350mm*2000mm(L*W*H)
-
Weight:
-
1250 KG, 1250KG
-
Certification:
-
CE
-
Printing Area:
-
600*600mm(scanning)1100*600mm( pixel)
-
Power supply:
-
AC220V/4KW 50Hz
-
Machine Size:
-
2610mm*2350mm*2000mm(L*W*H)
-
Printing Height:
-
MAX20MM
-
Printing Speed:
-
4pass 400pcs/h; 6pass 320pcs/h
-
Printing Presion:
-
4pass 635*800; 6pass 635*1200
-
QTY of printing head:
-
8(YMCK)
-
Compressed Air:
-
0.6MPa30L/H
-
RIP software:
-
Photoprint
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
AC380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINWAH
-
Dimensions(L*W*H):
-
2610mm*2350mm*2000mm(L*W*H)
-
Weight:
-
1250 KG, 1250KG
-
Certification:
-
CE
-
Printing Area:
-
600*600mm(scanning)1100*600mm( pixel)
-
Power supply:
-
AC220V/4KW 50Hz
-
Machine Size:
-
2610mm*2350mm*2000mm(L*W*H)
-
Printing Height:
-
MAX20MM
-
Printing Speed:
-
4pass 400pcs/h; 6pass 320pcs/h
-
Printing Presion:
-
4pass 635*800; 6pass 635*1200
-
QTY of printing head:
-
8(YMCK)
-
Compressed Air:
-
0.6MPa30L/H
-
RIP software:
-
Photoprint

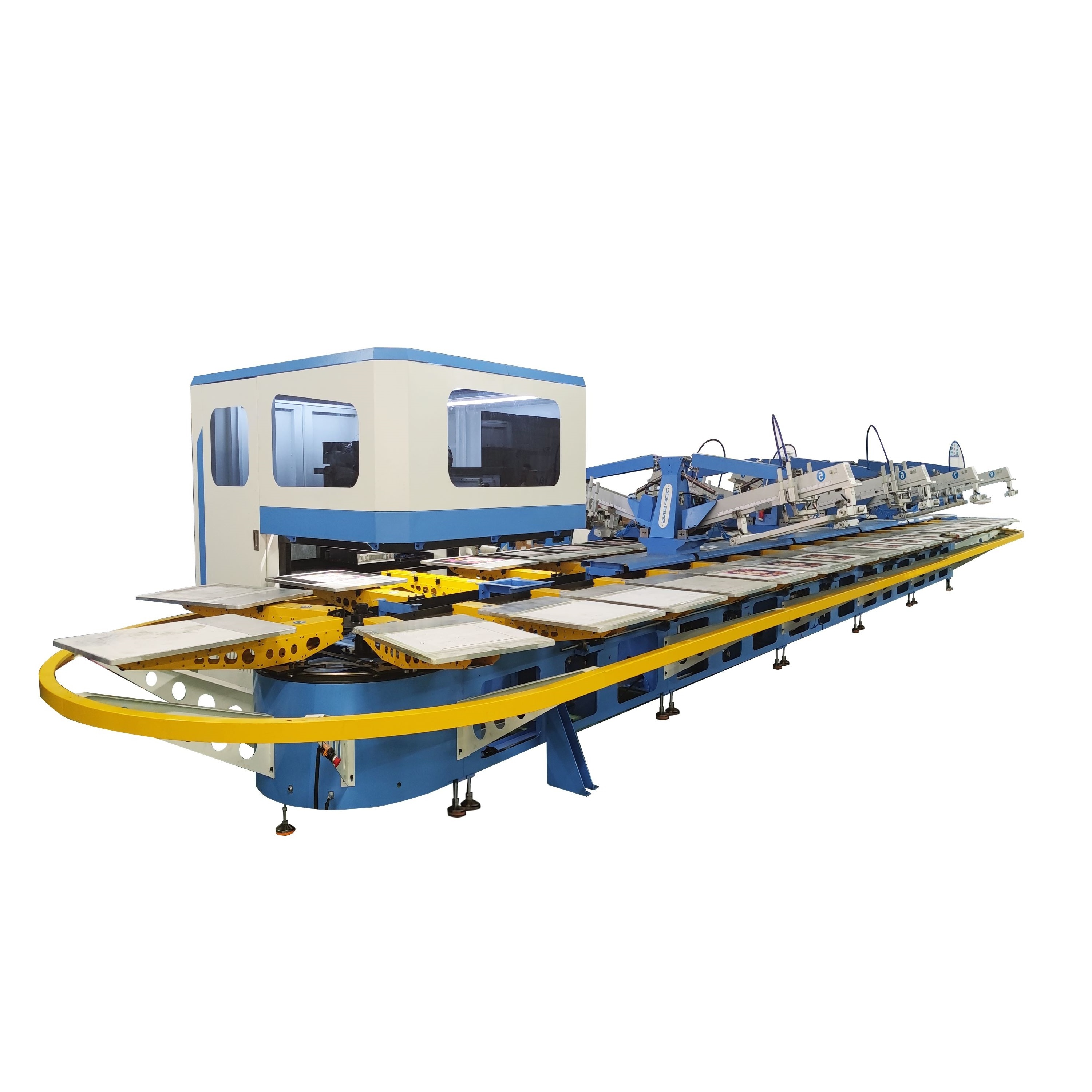

Product Description
http://en.kinwah.cn
|
Printing Area
|
600*600mm（scan）1100*600mm（ pixels）
|
|
Voltage
|
220V/4KW 50Hz
|
|
Weight
|
1250KG
|
|
Machine Size
|
2610*2350*2000（L*W*H）
|
|
Printing Height
|
MAX20MM
|
|
Printing Speed
|
4pass 400pcs/h;
6pass 320pcs/h
|
|
Printing Presion
|
4pass 635*800;
6pass 635*1200
|
|
QTY of Air Sprayer
|
8（YMCK）
|
|
Air pressure
|
0.6MPa30L/H
|
|
RIP software
|
Photoprint
|
|
Model of Air Sprayer
|
FUJIFILM Dimatix Spectra Starfire SG1024
|
Detailed Images
Specifications
|
Color
|
Printing head QTY
|
Plate QTY
|
Machine weight
|
Consumption
|
Machine length
|
|
6 colors
|
6
|
24 PCS
|
2656kgs
|
3.9KW
|
1020cm
|
|
8 colors
|
8
|
30 PCS
|
3323kgs
|
4.7KW
|
1243cm
|
|
10 colors
|
10
|
36 PCS
|
3990kgs
|
5.5KW
|
1466cm
|
|
12 colors
|
12
|
42 PCS
|
4657kgs
|
6.3KW
|
1689cm
|
|
14 colors
|
14
|
48 PCS
|
5324kgs
|
8.6KW
|
1912cm
|
|
16 colors
|
16
|
54 PCS
|
5991kgs
|
9.4KW
|
2135cm
|
|
18 colors
|
18
|
60 PCS
|
6658kgs
|
10.2KW
|
2358cm
|
|
20 colors
|
20
|
66 PCS
|
7325kgs
|
11KW
|
2581cm
|
|
22 colors
|
22
|
72 PCS
|
7992kgs
|
11.8KW
|
2804cm
|
|
24 colors
|
24
|
78 PCS
|
8659kgs
|
12.6KW
|
3027cm
|
Ten Advantages
1) With special plate structure, stable operation, high registration precision;
2) Exchange plate quickly, only need few second, one-click operation automatically keep the plate balance.Various printing
application for cut-pieces,garments etc;
3) The beam made form sheet metal, more stable and solid than traditional aluminum structure;
4) There are independent print and reset Multi-function operation panel and independent print/flood speed controls on each
printing head to make setup and operation fast and easy;
5) Clean the screen frame by lifting the printing head, do not need to take the take the frame off;
6) Lower the production cost, large,medium and small mesh frame arbitrary interchange, without any waste of the existing screen
frame;
7) Servo system, high precision color registration.Tolerance±0.01mm. High efficiency, lower power consumption, energy saving and
environment protection;
8) Colorized intelligent touching screen, HMI in Chinese and English, with intuitive and convenient operation;
9) High quality for all parts, running FAI&CPK in processing, ensure the dimension is qualified, the machine structure performance
is good;
10) With special welding process and accurate machining work, machine working life more than 15 years.
