Quick Details
-
Dimensions:
-
520*440*510mm
-
Weight (KG):
-
45 KG
-
Horizontal load:
-
10/15/30/50KG
-
Vertical load:
-
5/7.5/12/25KG
-
Rotation speed:
-
2-16rpm/1-12r/min/0.5-5r/min
-
Tilt (Degree):
-
180/200/315mm
-
Worktable Dia.:
-
232/275/340mm
-
Workable height:
-
20/40/90/120W
-
Motor Power:
-
10/12/28/32KG
-
Weight:
-
200/300/400/500mm
-
Adapter chuck:
-
65/80/125/200/300
-
Input voltage:
-
1PH 220 50~60Hz
Quick Details
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Shandong, China
-
Use:
-
Auxiliary welding
-
Dimensions:
-
520*440*510mm
-
Weight (KG):
-
45 KG
-
Horizontal load:
-
10/15/30/50KG
-
Vertical load:
-
5/7.5/12/25KG
-
Rotation speed:
-
2-16rpm/1-12r/min/0.5-5r/min
-
Tilt (Degree):
-
180/200/315mm
-
Worktable Dia.:
-
232/275/340mm
-
Workable height:
-
20/40/90/120W
-
Motor Power:
-
10/12/28/32KG
-
Weight:
-
200/300/400/500mm
-
Adapter chuck:
-
65/80/125/200/300
-
Input voltage:
-
1PH 220 50~60Hz
Product Description

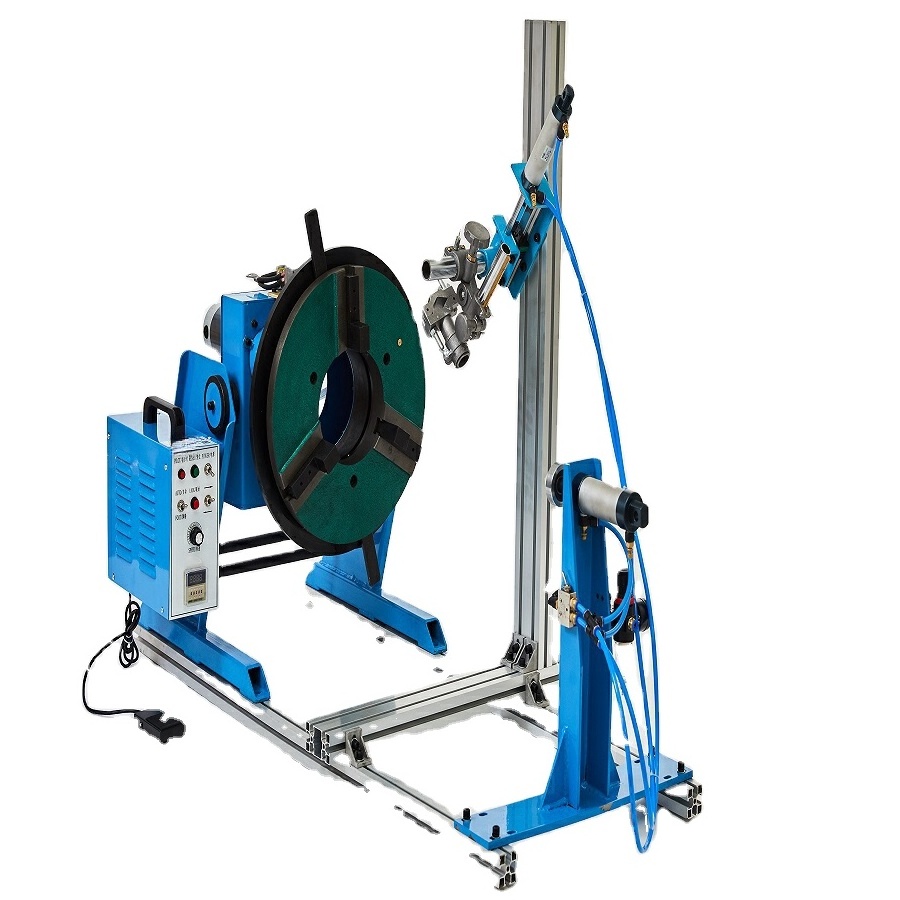

Special welding machine ground wire conductive copper brush
Equipped with an emergency stop switch, both foot and automatic functions
Famous brand DC speed control motor reducer
Optional pneumatic tailstock and welding gun bracket;
Specification
|
Horizontal load
|
10kg
|
15kg
|
30
|
50
|
|
Vertical load
|
5kg
|
7.5kg
|
12
|
25kg
|
|
Rotation speed
|
2-16rpm
|
2-16rpm
|
1-12r/min
|
0.5-5r/min
|
|
Tilt (Degree)
|
0°-90°/Manual flip
|
0°-90°/Manual flip
|
0°-90°//Manual flip
|
0°-90°/Manual flip
|
|
Worktable Dia.
|
180mm
|
200mm
|
315mm
|
315mm
|
|
Workable height
|
232mm
|
275mm
|
340mm
|
340mm
|
|
Motor Power
|
20w
|
40w
|
90w
|
120w
|
|
Weight
|
10kg
|
12kg
|
28kg
|
32kg
|
|
Adapter chuck
|
KC-65/KC-80
|
KC-65/KC-80/C-125
|
KD-125/200/300
|
KD-125/200/300
|
|
Input voltage
|
1PH 220 50~60Hz
|
1PH 220 50~60Hz
|
1PH 220 50~60Hz
|
1PH 220 50~60Hz
|
|
Horizontal load
|
100kg
|
200kg
|
300kg
|
|
Vertical load
|
50kg
|
100kg
|
150kg
|
|
Rotation speed
|
0.5-5r/min
|
0.5-5r/min
|
0.2-2.5r/min
|
|
Tilt (Degree)
|
0°-90°/Manual flip
|
0°-90°/Manual flip
|
0°-90°/Manual flip
|
|
Worktable Dia.
|
400mm
|
400mm
|
500mm
|
|
Workable height
|
500mm
|
500mm
|
600mm
|
|
Center through-hole
|
45mm
|
45mm
|
90mm
|
|
Motor Power
|
120w
|
140w
|
200w
|
|
Weight
|
75kg
|
80kg
|
110kg
|
|
Adapter chuck
|
KD-200/30/400
|
KD-200/30/400
|
KD-300/400/500
|
|
Input voltage
|
1PH 220 50~60Hz
|
1PH 220 50~60Hz
|
1PH 220 50~60Hz
|
|
Model
|
HD-600
|
|
Horizontal load
|
600kg
|
|
Vertical load
|
300kg
|
|
Rotation speed
|
0.1-1r/min
|
|
Tilt (Degree)
|
0°-90°/Manual flip
|
|
Reverse Speed
|
0.4rpm
|
|
Worktable Dia.
|
650mm
|
|
Center through-hole
|
0.37kw
|
|
Rotating motor power
|
0.55kw
|
|
Flip motor power
|
KD-400/500/600
|
|
Input voltage
|
3PH 380-460v 50-60HZ
|
|
Rated load capacity (kg)
|
800
|
1200
|
3000
|
5000
|
10000
|
20000
|
30000
|
|
Workbench diameter (mm)
|
φ1000
|
φ1000
|
φ1400
|
φ1400
|
φ1500
|
φ2000
|
φ3000
|
|
Rotation speed (rpm)
|
0.1-1
|
0.1-1
|
0.05-0.5
|
0.05-0.5
|
0.05-0.5
|
0.04-0.4
|
0.03-0.3
|
|
Rotating motor power (kW)
|
0.55
|
0.75
|
1.1
|
1.5
|
3
|
5.5
|
7.5
|
|
Flipping motor power (kW)
|
0.75
|
1.1
|
2.2
|
3
|
4
|
11
|
15
|
|
Tilt angle
|
0-120°
|
0-120°
|
0-120°
|
0-120°
|
0-120°
|
0-120°
|
—45-90°
|
|
Maximum turning diameter (mm)
|
φ1350
|
φ1350
|
φ2200
|
φ2300
|
φ2500
|
φ3500
|
φ4000
|
|
Center of Gravity Distance (mm)
|
200
|
250
|
300
|
300
|
300
|
500
|
500
|
|
Eccentricity (mm)
|
150
|
200
|
200
|
200
|
200
|
200
|
200
|
