Quick Details
-
Brand Name:
-
Unique
-
Motor Power:
-
85kw, 85kw
-
Charging Capacity:
-
3580L
-
Reclaiming capacity:
-
3200L
-
Speed of Mixing Drum:
-
35r/min
-
Water Supply Mode:
-
Auto
-
Working Cycle Period:
-
60s
-
Discharge Way:
-
Pneumatic or Hydraulic
-
Outline Dimension:
-
7800x2720x3300
-
Weight (KG):
-
7200 kg
-
Product name:
-
self loading concrete mixer
-
Theoretical capacity:
-
≥35m3
-
Aggregate sizes:
-
≤60/80m
-
Weight:
-
7200kg
-
Color:
-
Request
-
Application:
-
Building Site
-
Certificate:
-
ISO
-
Power type:
-
Diesel Engine Concrete Mixture Machine
-
Keywords:
-
Small Diesel Concrete Mixer
Quick Details
-
Mixing Power:
-
85 kw
-
Productivity:
-
3.5m3/tank
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Unique
-
Motor Power:
-
85kw, 85kw
-
Charging Capacity:
-
3580L
-
Reclaiming capacity:
-
3200L
-
Speed of Mixing Drum:
-
35r/min
-
Water Supply Mode:
-
Auto
-
Working Cycle Period:
-
60s
-
Discharge Way:
-
Pneumatic or Hydraulic
-
Outline Dimension:
-
7800x2720x3300
-
Weight (KG):
-
7200 kg
-
Product name:
-
self loading concrete mixer
-
Theoretical capacity:
-
≥35m3
-
Aggregate sizes:
-
≤60/80m
-
Weight:
-
7200kg
-
Color:
-
Request
-
Application:
-
Building Site
-
Certificate:
-
ISO
-
Power type:
-
Diesel Engine Concrete Mixture Machine
-
Keywords:
-
Small Diesel Concrete Mixer

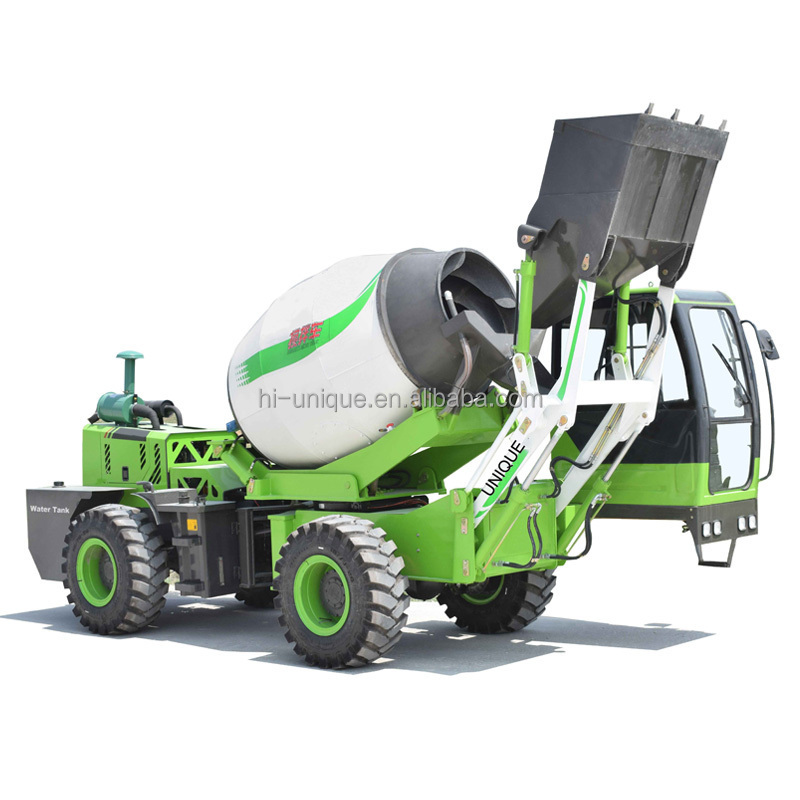

Brief Introduction of JBC 3.5 Mobile Concrete Mixer Truck :
Self loading concrete mixer achieved full in-cab machine control. The cab is integral with a rotating frame. Therefore the operator is in visual contact with drum outlet and bucket assembly through the full 360 degrees. Aimix self loader is easy and comfortable to operate.
Advanced Features of Self Loading Concrete Mixer:
Full in-cab machine control ensure easy and comfortable operation.
Easy maintenance save labors for construction projects.
No dead angle assures safe and easy operation.
Automatic loading and discharging largely improve working efficiency.
Electronic weighing system with printer.
Efficient and reliable after-sale service.
Parameters of UN 3.5 of Mobile Concrete Mixer Truck :
| Equipment Model | JBC3.5 |
| Drum geometrical capacity | 3580L |
| Discharging Capacity | 3200L |
| Engine Model | YCD4105 |
| Rated Power | 85kw |
| Gear | 4 forward 4 back |
| Fuel tank | 75L |
| Total hydraulic system capacity | 75 liters |
| Oil tank | 16 liters |
| Hydraulic Pump | Parker pump |
| Water tank | 620L |
| Overall dimensions(L*W*H) | 7800*2720*3300 |
| Wheelbase (mm) | 2615 |
| Curb Weight (kg) | 7200 |
| Drum Rotary | 270º |
| Drum Mixing Speed (r/min) | 13 |
| Max.Speed (km/h) | 35 |
| Maximum grade | 30º |
| Other configuration | Air conditioner,Hydraulic water pump |
The vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
