Quick Details
-
Design Printing:
-
No printing
-
Material:
-
Acrylic adhesive
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
-
-
Model Number:
-
DS12-ABW49100
-
Thickness:
-
Tissue + Adhesive = 0.15mm +/- 0.01mm
-
Adhesion:
-
2.5kgs/in (ASTM D3654); 25um PET as reinforce substrate
-
Shear strength:
-
25℃*1kg*24hrs & 80℃*0.5kg*24hrs
-
Substrate:
-
30um / Tissue / white or black
-
Liner:
-
110gsm / 2PE paper
-
Service Temp.:
-
-10 deg-C to 80 deg-C
-
Size:
-
125cm*100m,104cm*100m
Quick Details
-
Adhesive:
-
Acrylic
-
Adhesive Side:
-
Double Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
No printing
-
Material:
-
Acrylic adhesive
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
-
-
Model Number:
-
DS12-ABW49100
-
Thickness:
-
Tissue + Adhesive = 0.15mm +/- 0.01mm
-
Adhesion:
-
2.5kgs/in (ASTM D3654); 25um PET as reinforce substrate
-
Shear strength:
-
25℃*1kg*24hrs & 80℃*0.5kg*24hrs
-
Substrate:
-
30um / Tissue / white or black
-
Liner:
-
110gsm / 2PE paper
-
Service Temp.:
-
-10 deg-C to 80 deg-C
-
Size:
-
125cm*100m,104cm*100m

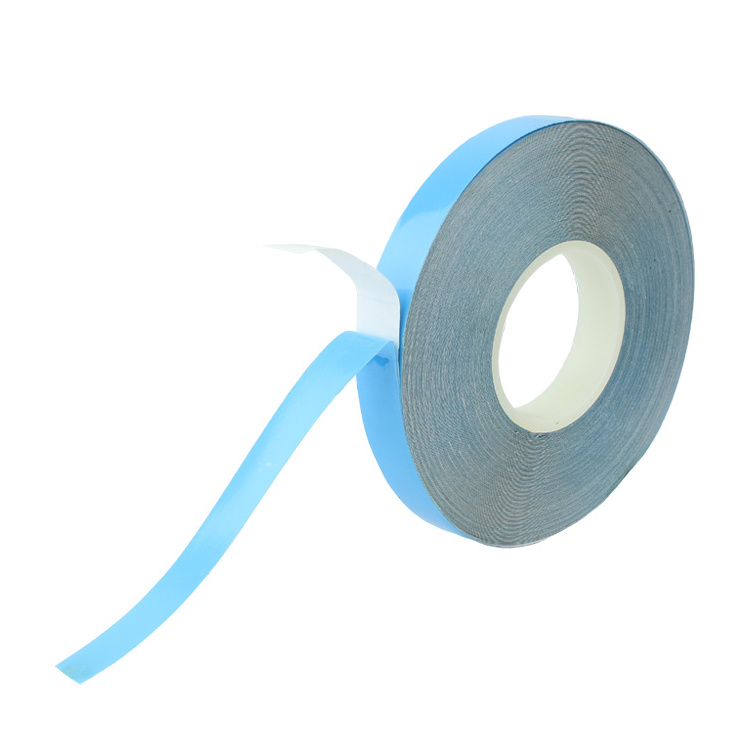

EVA Connection Tape
During the lifetime of vehicle, boat or yacht static and dynamic stresses act upon the constructive bond between the object and the subject part. Celadon® Double Coated Tape creates a powerful bond even between materials with different surface characteristics, such as low surface energy, EVA, EPDM form, plastic parts connection.
Celadon Tissue Double Coated Adhesive Tape is 0.15mm double coated with solvent base poly-acrylic pressure sensitive adhesive and backing with 110gsm silicon coated release paper liner.
Application Techniques
The bond strength of Celadon depends on the area of adhesive to surface contact developed during application and substrate type and surface conditions. For maximum bond strength, the surfaces should be thoroughly cleaned with a 50:50 mixture of isopropyl alcohol and water. Ideal tape application is accomplished when the temperature is between 21°C-38°C (70°F-100°F) and the bond is allowed to dwell 72 hours. Initial tape application to surfaces at temperatures below 10°C (50°F) is not recommended. Moderate heat lamination (65°C at 72.5 psi for 1-5 minutes) is recommended on rough surfaces.
STORAGE and SHELF LIFE
The shelf life of Celadon Adhesive Transfer Tape ATR2165 is 6 months from the date of manufacture
when stored in the original packaging materials and stored at 21°C (70°F) and 50% relative humidity.
|
PRODUCT NAME
|
EVA Connection Tape
|
|
Thickness
|
Tissue + Adhesive = 0.15mm +/- 0.01mm
|
|
Adhesion
|
2.5kgs/in (ASTM D3654); 25um PET as reinforce substrate
|
|
Shear strength
|
25℃*1kg*24hrs & 80℃*0.5kg*24hrs
|
|
Substrate
|
30um / Tissue / white or black
|
|
Liner
|
110gsm / 2PE paper
|
|
Service Temp.
|
-10 deg-C to 80 deg-C
|
|
Size
|
125cm*100m,104cm*100m
|
|
Features
|
* High initial tack and adhesion bonding low surface energy material such as EVA from
* Excellent cold shock performance * High humidity and UV resistance |
1 Are you a factory or trading company?
----We are a factory. We have our own factory and international trade groups that can provide you with all kinds of services.
2. Do you accept OEM / ODM services?
----Yes, OEM / ODM is our expertise. We have over 30 years of OEM / ODM experience. Aside from providing manufacturing services; we also offer suggestions for better solutions. Our goal is to help our customers earn a great reputation and sell profitable products at the same time. We believe that only through a win-win scenario can we enjoy a long term relationship.
3. What options can you customize?
---We can match your designated color, adhesion, texture, hardness, flexibility, or durability. We can provide personal packaging design, such as colored box, paper core, label…etc. We can also provide professional suggestions according to your requirements.
4. What is the minimum order?
---Kindly contact us because the MOQ varies per product. If you require samples for verification, we can also arrange that.
5. How long is the delivery time?
---The lead time is usually about 3 weeks, but it still depends on the product you order. If you require custom specs, it will require a longer lead time.
