Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINEW
-
Bluetooth version:
-
5.0
-
Flash Memory:
-
512KB/192KB
-
Antenna:
-
PCB
-
Certification:
-
FCC, CE, RoHS
-
GPIO:
-
13
-
Transmission Power:
-
-40~+4dBm
-
Operation Voltage:
-
1.8-3.6V
-
Current(TX):
-
0dBm-5.3mA/4.6mA
-
Range:
-
10-60M
-
Sensitivity(Rx):
-
96dBm
Quick Details
-
Chipset:
-
nRF52810
-
Application:
-
Internet of thingoos
-
Model Number:
-
MS50SFA1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINEW
-
Bluetooth version:
-
5.0
-
Flash Memory:
-
512KB/192KB
-
Antenna:
-
PCB
-
Certification:
-
FCC, CE, RoHS
-
GPIO:
-
13
-
Transmission Power:
-
-40~+4dBm
-
Operation Voltage:
-
1.8-3.6V
-
Current(TX):
-
0dBm-5.3mA/4.6mA
-
Range:
-
10-60M
-
Sensitivity(Rx):
-
96dBm
Accessories
Product Description

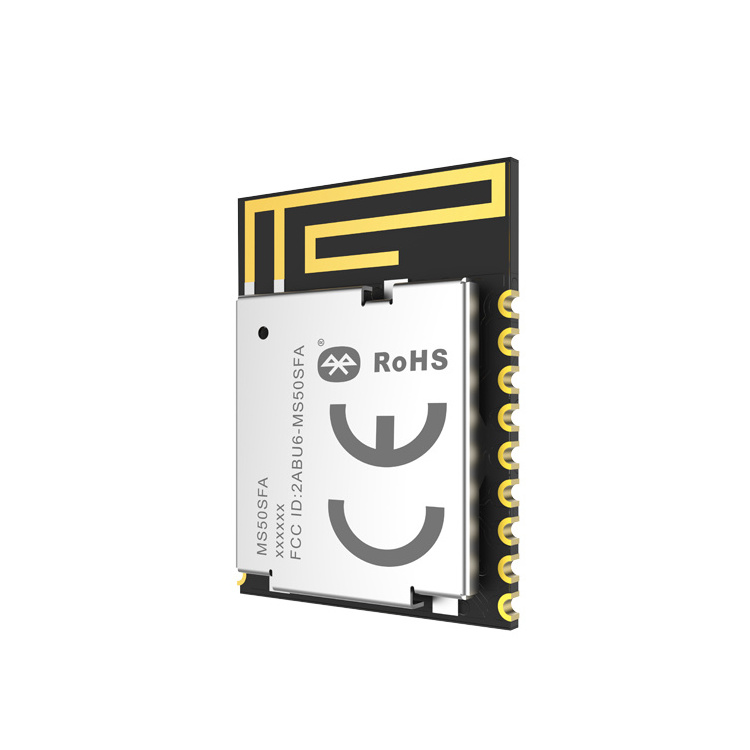

Cheapest and Mini-sized Bluetooth module
The MS50SFA1 is based on Nordic nRF52832/nRF52810 and it is a compact and very small size Bluetooth 5.0 module with ultra-low power consumption and optional antenna types; Basically, it lower the cost of building the network nodes.
Features
|
Frequency: |
2402 to 2480 MHz
|
|
|
Max. Output power:
|
+4dBm
|
|
|
Single power supply:
|
1.8 – 3.9V
|
|
|
Range:
|
10-60 meters
|
|
|
Chip:
|
nRF52810
|
|
|
GPIO Quantity:
|
13
|
|
|
Module size:
|
15.8 x 12.0 x 2.0 mm
|
|
|
Antenna types:
|
PCB antenna
|
|
|
Operating Temperature range:
|
-25 to 85 degree Celsius
|
|
|
192kB Flash and 24kB RAM
|
|
|
|
ARM Cortex-M4F processor
|
|
|
|
Metal shielding with marking
|
|
|
|
UART communication protocol (Slave / Master optional)
|
|
|
