Quick Details
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
APEX
-
Weight (KG):
-
7.8 KG
-
Marking Area:
-
60mm*60mm
-
Product name:
-
Mini Fiber Laser Marking Machine
-
Laser Power:
-
20W /30w/ 50w(Optional)
-
Laser source:
-
IPG Raycus Max JPT
-
Laser wavelength:
-
1064 Nm
-
Marking Speed:
-
0-7000mm/s
-
Working area:
-
60*60mm/100*100mm
-
Cooling system:
-
Air Colling
-
Marking Depth:
-
0-1mm
-
Keywords:
-
Laser Markng Machine
-
After Warranty Service:
-
Video Technical Online Support
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
APEX
-
Weight (KG):
-
7.8 KG
-
Marking Area:
-
60mm*60mm
-
Product name:
-
Mini Fiber Laser Marking Machine
-
Laser Power:
-
20W /30w/ 50w(Optional)
-
Laser source:
-
IPG Raycus Max JPT
-
Laser wavelength:
-
1064 Nm
-
Marking Speed:
-
0-7000mm/s
-
Working area:
-
60*60mm/100*100mm
-
Cooling system:
-
Air Colling
-
Marking Depth:
-
0-1mm
-
Keywords:
-
Laser Markng Machine
-
After Warranty Service:
-
Video Technical Online Support

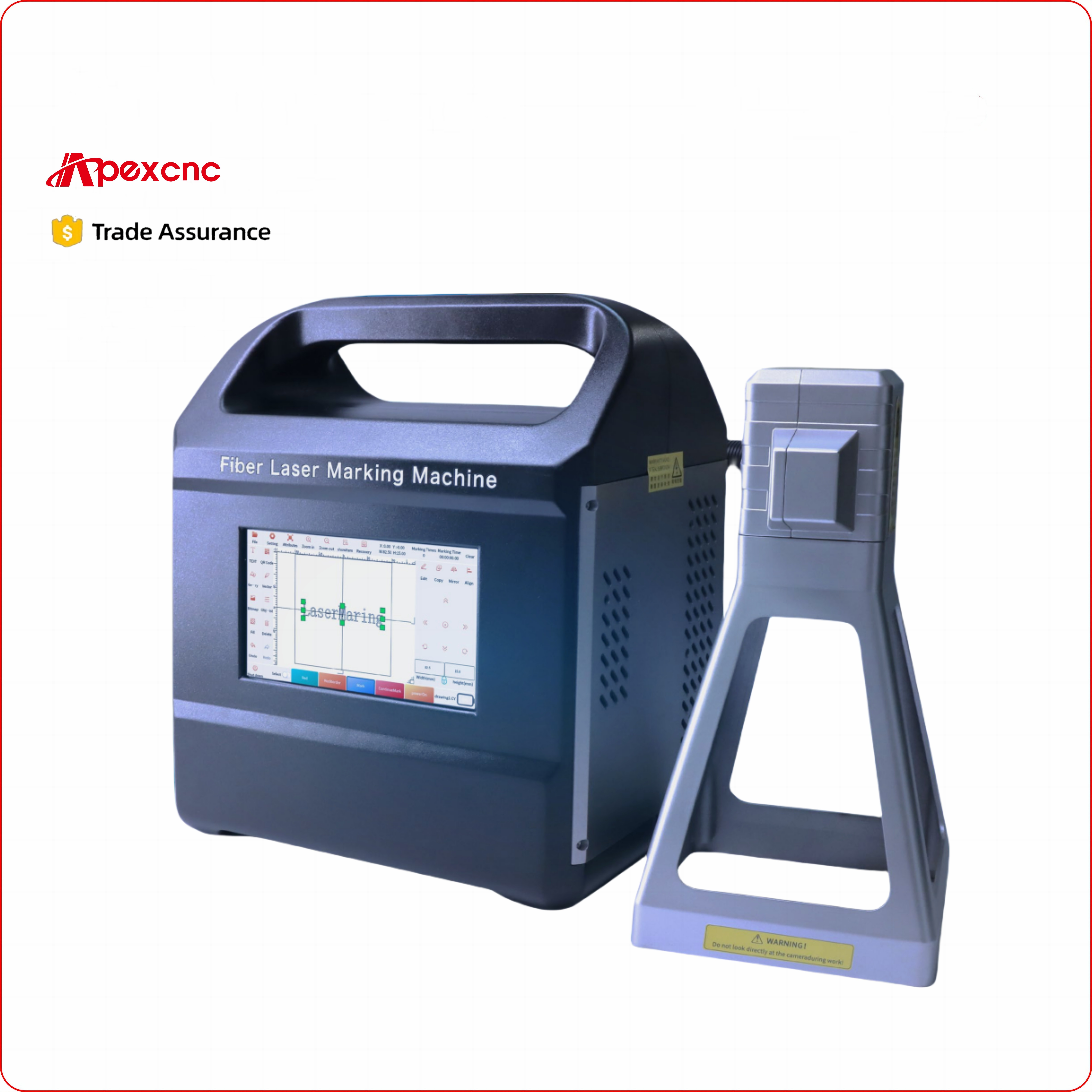

Handheld Mobile Mini Fiber Laser Marking Machine for Metal Wood Plastic Laser Etcher Printer 20w 30w 50w Laser Deep Engraving
Features of portable fiber laser marking machine:
Smaller & lighter
Machine weigh 7.8kg including lithium battery. It can be carried easily and work indoors or outdoors.
High quality scan galvo head
Famous brand lens to accurately scanning of marking areas.There are 60mm*60m and 100mm*100mm working area for options.
|
Produot
|
Lthium battery style
|
Power supply style
|
|
|
Mode
|
APB20/PB25/APB30/APB50
|
AP20/AP25/AP30/AP50
|
|
|
Complete
|
|
|
|
|
Machine material
|
|
|
|
|
Laser type
|
Optical Fiber Laser Generator
|
|
|
|
Laser power
|
20W/25W/30W/50W
|
|
|
|
Laser wavelength
|
1064 nm
|
|
|
|
Maximum pulse energy
|
0.7mJ/1mJ/1.1mJ
|
|
|
|
Frequency adjustable range
|
27-170 kHz
|
|
|
|
Print way
|
High-precision two-dimensional scanning mode
|
|
|
|
Scaling speed
|
≤7000mm/s
|
|
|
|
Operation interface
|
Built-in 7-inch touch screen,Linux operating system
|
|
|
|
Cooling method
|
Built-in air cooling
|
|
|
|
Type of marking line
|
lattice and vector all-in-one machine(both lattice and vector)
|
|
|
|
Reflector size
|
Standard standard:10mm
|
|
|
|
Scope of marking
|
60*60mm/100mm*100mm
|
|
|
|
Location mode
|
Red light positioning
|
|
|
|
Number of scaled characters
|
Any row within the marking range
|
|
|
|
Print out rate
|
600 Character /second(specific speed is related to product material,print content
|
|
|
|
Language
|
Simplified Chinese,English,Korean,German,Arabic
numerals,etc. |
|
|
|
File format
|
png、jpg、bmp、dxf、plt 、svg
|
|
|
|
Barcode /QR code
|
CODE25,CODE39,CODE49,CODE93,CODE126,CODE128
EAN13,EAN128,PDF417,CODBAR,UPCA,UPCA_CHK UPCE_CHK.DataMatrix.QRCode et al |
|
|
|
Source
|
220V/110V
|
|
|
|
Maximum power consumption
|
20W:120W /30W:150W /50W:200W
|
|
|
|
Machine net weight
|
7.8KG
|
6KG
|
|
|
Full power
Continuous working hours |
6-8 hours(lithium battery
|
|
|
|
Adapt to the temperature
|
0-40℃
|
|
|
|
Relative humidity of
environment |
30-85 RH(no-condensation)
|
|
|
|
Appearance size
|
330mm*280mm*200mm
|
|
|
Apex Machinery have more than 20 years of experience in machine assembly, processing and production, with export cases in 35 countries. We are based in the world's CNC equipment processing center, with a professional mechanical design team of more than 15 people, a first-class CNC equipment R&D team of more than 20 people, and more than 200 people. Diligent front-line CNC machine assembly workers, strict testing procedures, standard export packaging, enthusiastic after-sales service, professional foreign trade export service personnel, and lifelong technical support for the machine. We can serve well in engineering bidding projects, national construction projects, steel processing engineering procurement projects, door and window metal plate cutting equipment procurement, panel furniture production line project one-stop procurement projects, educational technology equipment procurement projects, industrial CNC equipment equipment projects, etc.
Based on the principle of win-win cooperation and mutual benefit, Apex Machinery sincerely invite friends from all over the world to discuss together, make progress together, purchase, learn, train, and have long-term cooperation through remote video or on-site visits.
Our service:
Q1: Do you have CE document and other documents for customs clearance?
A1: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q2: If we are interested in your machine, how do we choose?
A2: 1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm?
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
Please tell us, then we can recommend the suitable machine to you.
Q3: How about warranty?
A3: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q4: Do you have after sales support?
A4: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
