Quick Details
-
Machine type:
-
Centrifugal Solid- Liquid Separator
-
Operating temperature:
-
10-800 ℃
-
Working Pressure:
-
0.5-1.5 MPa
-
Usage:
-
Dehydrating
-
Separation:
-
Solid-liquid-liquid Centrifuge
-
Material:
-
Carbon Steel+Stainless Steel
-
MOQ:
-
1 Set
-
Keyword:
-
animal manure fermentation machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Name:
-
Tubular waste residues spiral extrusion
-
Application:
-
dry and wet separator
-
Machine type:
-
Centrifugal Solid- Liquid Separator
-
Operating temperature:
-
10-800 ℃
-
Working Pressure:
-
0.5-1.5 MPa
-
Usage:
-
Dehydrating
-
Separation:
-
Solid-liquid-liquid Centrifuge
-
Material:
-
Carbon Steel+Stainless Steel
-
MOQ:
-
1 Set
-
Keyword:
-
animal manure fermentation machine

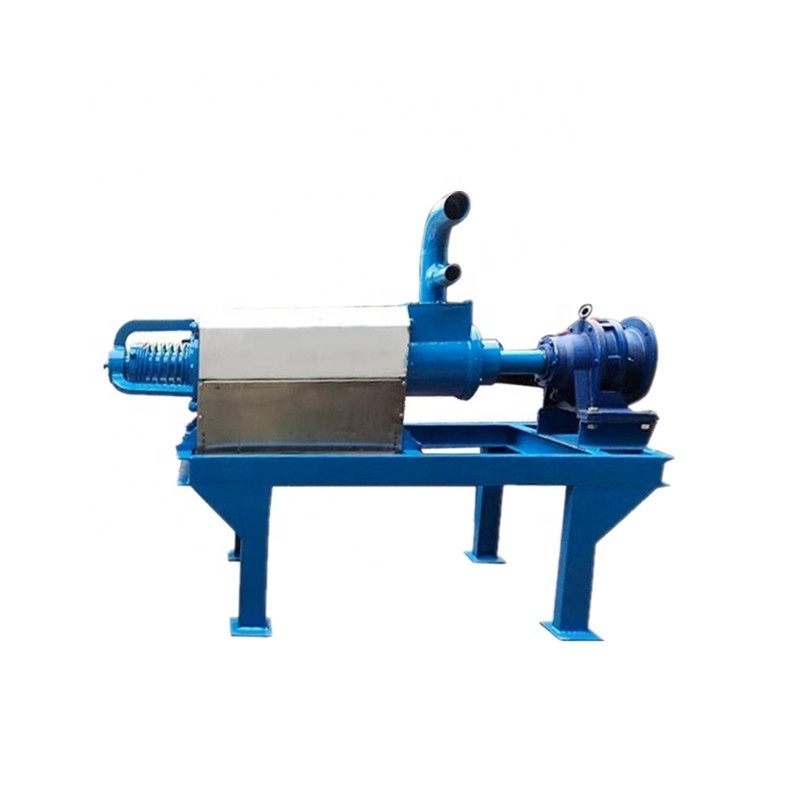

Screw Press Potato Cassava Residue Dewatering Machine Food Waste Separator
Descriptions:
1. Screw Press Separator is designed to mechanically separate solid and liquid fractions of fiber-rich materials such as animal manure, food residues, biogas slurry, etc.
2. Our robust design handles all types of livestock manure with ease, yielding a high output rate of very dry solids and a liquid fraction containing only minimal amounts of suspended solids. Screw Press Potato Cassava Residue Dewatering Machine Food Waste Separator
Technical Parameters:
| Model | 180 |
| Power(kw) | 4 kw |
| Overflow diameter(mm) | 76 mm |
| Sewage outlet diameter(mm) | 108 mm |
| Filter diameter(mm) | 180 mm |
| Capacity(m 3/h) | 8--12 m 3/h |
| Size(mm) | 1700*650*1050 mm |
| Weight(Kg) | 360 kg |
Structures:
Working Principles:
1. The sewage liquid is lifted and sent to the pig manure dewatering machine by the matched non-blocking submerged pump, and then the auger gradually pushes the sewage liquid to the front of the machine, while continuously increasing the pressure at the leading edge of the machine, forcing the moisture in the material.
2. The mesh screen is extruded under the action of the side pressure belt filter, and the drain pipe is discharged.
3. The work of the solid-liquid dewatering machine is continuous, and the sewage liquid is continuously raised to the solid-liquid dehydrator body.
4. The pressure at the leading edge is continuously increased. When it is large to a certain extent, the discharge port is opened and squeezed to achieve the purpose of extrusion.
5. In order to grasp the speed and water content of the discharge, the weight below the main unit can be adjusted to achieve a satisfactory discharge status. Screw Press Potato Cassava Residue Dewatering Machine Food Waste Separator
Detailed Images:
a. Screen design: Adopting high quality stainless steel, which is corrosion-resistant and durable. And the ribs are not deformed.
b. Auger design: Using 8 mm thick stainless steel blades, thicking the extrusion section, which is efficient and durable.
c. GB motor: The whole set of equipment adopts the national standard pure copper motor, Whose warranty is 1 year.
d. Control cabinet: Using automatic voltage detection and stainless steel electric control cabinet with leakage protection function to prevent accidental injury. In addition, adopting to start and stop one-button control, which is easy to operate.
e. Outlet design: Adopting adjustable springs,which easily adjust material dryness and fast discharge.
Screw Press Potato Cassava Residue Dewatering Machine Food Waste Separator
Applications:
The solid liquid separator widely used in reduce water from the materials.
a. Such as animal manure, food residue, sludge, biogas residue liquid ect.
b. As a chicken, cow, horse and all kinds of intensive farms for animal feces, distillers, dregs, starch dregs, sauce dregs, slaughtering plant and other high concentration of organic sewage separation.
Workshop:
Packing:
♠ Different machines, the package will be different.
♠ We support Carton box, Wooden box package.
♠ If big machine or production line, it will be loaded in the container directly.
Delivery:
♠ Small machine, we support TNT, DHL, Fedex,UPS.
♠ Big machine, we support delivery by ship.
♠ We can also deliver the machine to your agent in china if you have.
