Quick Details
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
50000
-
Rated power:
-
160KVA*3
-
Capacitance:
-
73500uF
-
Welding power source:
-
DC
-
Electrode Stroke:
-
100mm
-
Electrode Distance:
-
490-540mm
-
Effective Welding Lenght:
-
3000mm
-
Effective Welding Width:
-
2500mm
-
Certification:
-
CE
Quick Details
-
Max Working Pressure(MPa):
-
5 MPa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hwashi
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
50000
-
Rated power:
-
160KVA*3
-
Capacitance:
-
73500uF
-
Welding power source:
-
DC
-
Electrode Stroke:
-
100mm
-
Electrode Distance:
-
490-540mm
-
Effective Welding Lenght:
-
3000mm
-
Effective Welding Width:
-
2500mm
-
Certification:
-
CE
Product Description
IBC tank welding machine

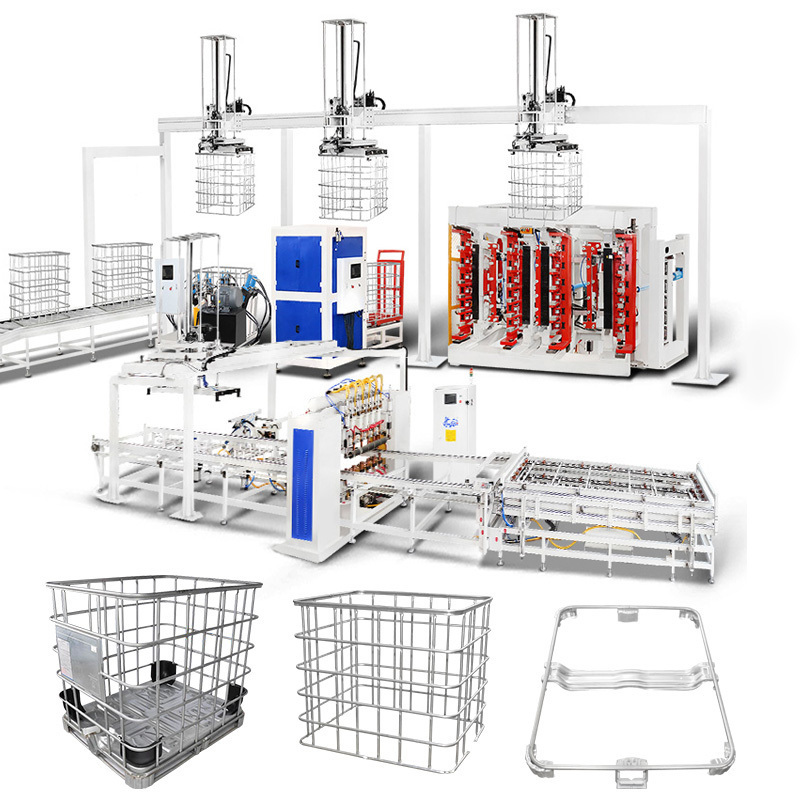

Hwashi IBC Cage Frame Automatic Welding Machine Automatic Production Line is a special designed production line for IBC cage frame. The whole line machine includes cage frame automatic welding, mesh unloading mechanical arm, mesh turnover structure, automatic frame bending machine, locking machine, hole making and punching machine, automatic production line moving mechanical arm. The complete line requires only 2-3 person. Operator only need to do the material loading to the frame welding machine, and do unloading at the end of the line. Also we can equip the line with automatic base frame welding machine and automatic unloading mechanical arm for the base frame.
Running Process
Production Capacity:
90 sec/pc
（including welding, bending, locking, and hole punching process)
IBC tank welding machine Production line equipment
IBC tank frame welding machine、bending machine、locking machine、hole punching machine、base frame welding machine the full set of production equipment.
Six-Head IBC Frame Automatic Welding Machine
The welding power is designed with 4 sets of MF DC power source. It can do 6 spots welding at one time. Double layer fixture feeder. When one fixture is under welding, another fixture can be loaded with material.
Flat Tube Mesh and Firm Welding Quality
Vertical Double Station IBC Frame Bending Machine
IBC cage frame double station bending machine is processed as a whole to ensure high bending precision, stable operation and high efficiency.
Bend the Flat Mesh into Square Shape
The bending machine will bend the flat mesh into square frame. It will takes about 20- 25sec to complete the bending process.
IBC Cage Frame Locking Machine
IBC cage frame locking machine is processed as a whole, with high insertion precision, large fastness to locking, stable and efficient operation.
Locking Efficiency and Quality
IBC Cage Frame Hole Making and Punching Machine
IBC cage frame hole making and punching machine is used to form the hole on the frame, so the complete frame can be fixed on the base frame.
Hole Making Efficiency and Quality
IBC Cage Base Frame Welding Machine
The base frame welding machine design adopts horizontal structure and 7 welding heads for completing the welding of base frame. The operator only need to load and unload the product. The machine will do the welding automatically.
Final Product of Base Frame
We can add the automatic loading and unloading device for the base frame welding machine as per your requirement.
The welding efficiency is about 15-20 sec/pc.
Application and samples
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out withthe suitable technical proposal based on your samples or drawings.
Factory & Certificate
HWASHI
22
years+ experience welding solutions expert
Guangdong Hwashi Technology Inc. which was established in 2001, is located in Huizhou, Guangdong province in China. We are the high-tech enterprise which is specialized in developing, manufacturing, and selling of resistance welding machine, automatic welding machine and industrial robot station. We have total two manufacturing plants covering an area about 60000 square meters.There are about 200 staffs in Hwashi, and among which there are more than 20 mechanical and electrical engineers. Most of our engineers got more than 10 years experience in welding industry. Until now, we got more than 70 patents regarding the welding machine projects. Our machines have been exported to more than 70 counrties in the world. And we have local distributor in Russia, Turkey, Romania, Saudi Arabia, Malaysia, Indonesia, India, and USA, etc. who will provide you professional pre-sales and after-sales service in local.
Certifications
We have passed the international certifications such as
CE
certification,
ISO 9001
quality management system certification, Alibaba enterprise certification and design patents.
After-sales service & Customer visiting
1.spot welding machine
1 years warranty
except consumable parts
2.Plenty of technical support
online
is available
3.Quick Back-up Parts Available&Technical Assistance
4.
"Training Video","Instruction Book",
and
"Operation Manual"
will be offered
Packing & Delivery
Acceptable Delivery Terms
EXW, FOB, C&F, CIF, DDU, DDP
Quality Control
Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of welding products.
Professional Package
1. Whole film packaging machine;
2. Anti-collision package edge;
3. Wooden box and pallets with iron binding belt.
Service Team& feedback
Professional Team
Over the years, Hwashi has cultivated a large number of talented, dedicated and innovative Hwashi people. We have a professional team of experts with rich experience in electrical engineering, mechanical design and welding technology.
Since its establishment
22
years
ago, hwashi technology has traveled to all corners of the world, participated in more than
100
exhibitions
and served more than
8,000
customers
