Quick Details
-
Range of Spindle Speed(r.p.m):
-
50 - 1800 r.p.m
-
Max. Turned Length (mm):
-
700 mm
-
Spindle Motor Power(kW):
-
1.1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BETA
-
Model Number:
-
JYP290VF
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1400*750*1010mm
-
Weight (KG):
-
208 KG
-
Marketing Type:
-
New products
-
Name:
-
JYP290VF Mini universal milling lathe mill drill combo 3 in 1 lathe
-
Machine Type:
-
3 in 1 lathe machine
-
Control:
-
manual lathe mill drill combo
-
Max.swing over bed:
-
280 mm
-
Max.length of work pieces:
-
700 mm
-
Spindle bore:
-
38 mm
-
Turret:
-
4-station electric turret
-
Chuck size:
-
manual 3-jaw chuck
-
Function:
-
multi-purpose lathe
-
Processing:
-
metal lathe
-
Certification:
-
CE, ISO9001
Quick Details
-
Max. Length of Workpiece (mm):
-
700
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
38
-
Range of Spindle Speed(r.p.m):
-
50 - 1800 r.p.m
-
Max. Turned Length (mm):
-
700 mm
-
Spindle Motor Power(kW):
-
1.1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BETA
-
Model Number:
-
JYP290VF
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1400*750*1010mm
-
Weight (KG):
-
208 KG
-
Marketing Type:
-
New products
-
Name:
-
JYP290VF Mini universal milling lathe mill drill combo 3 in 1 lathe
-
Machine Type:
-
3 in 1 lathe machine
-
Control:
-
manual lathe mill drill combo
-
Max.swing over bed:
-
280 mm
-
Max.length of work pieces:
-
700 mm
-
Spindle bore:
-
38 mm
-
Turret:
-
4-station electric turret
-
Chuck size:
-
manual 3-jaw chuck
-
Function:
-
multi-purpose lathe
-
Processing:
-
metal lathe
-
Certification:
-
CE, ISO9001
Products Description

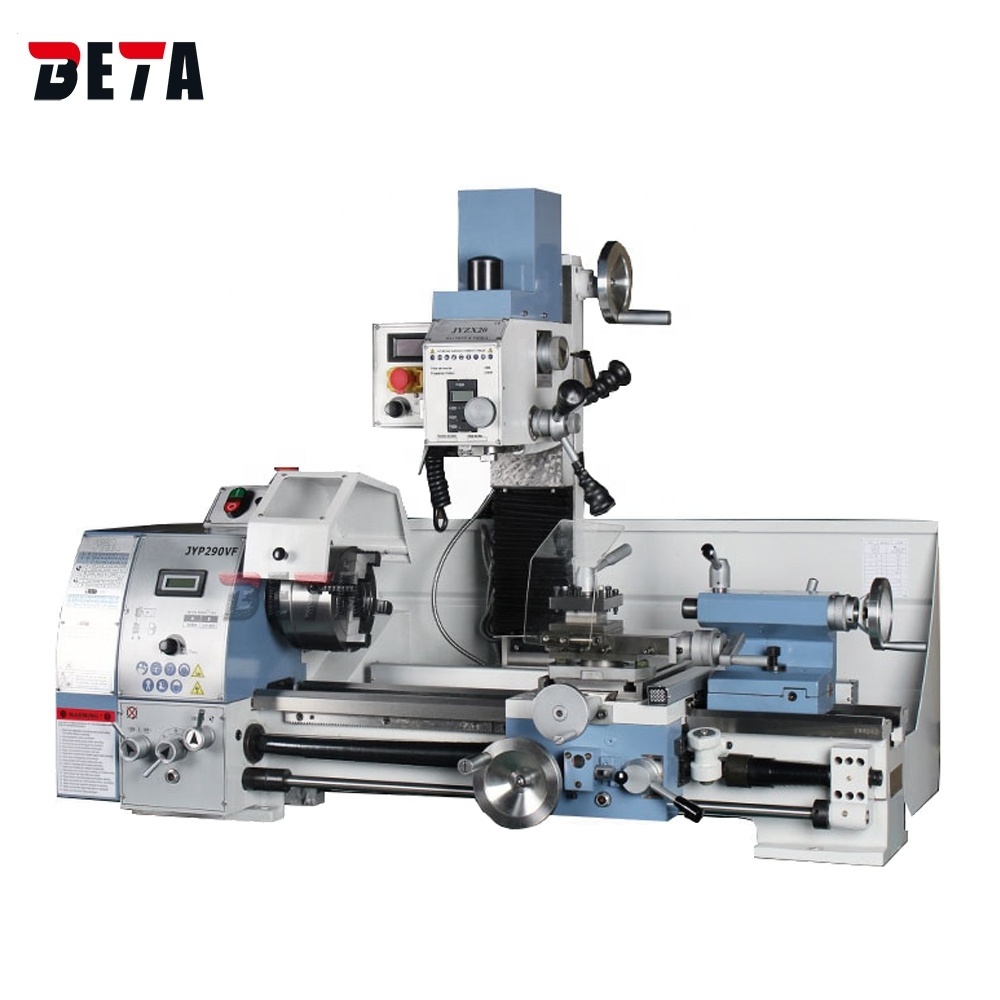

JYP290VF Mini universal milling lathe mill drill combo 3 in 1 lathe
Product Parameters
|
MODEL
|
JYP290VF
|
|
|
Distance between centers
|
700mm
|
|
|
Swing over bed
|
280mm
|
|
|
Width of bed
|
180mm
|
|
|
Taper of spindle bore
|
MT5
|
|
|
Spindle bore
|
38mm
|
|
|
Number of spindle speeds
|
variable speed
|
|
|
Range of spindle speeds
|
50-1800rpm
|
|
|
Range of longitudinal feeds
|
0.07 -0.40mm /r
|
|
|
Range of inch threads
|
8-56T.P.I 21kinds
|
|
|
Range of metric threads
|
0.2 -3.5mm 18kinds
|
|
|
Cross slide travel
|
140mm
|
|
|
Tailstock quill travel
|
94mm
|
|
|
Taper of tailstock quill
|
MT3
|
|
|
Motor
|
1.1KW
|
|
|
Packing size
|
1400*750*1010mm
|
|
|
Net /Gross weight
|
208kg/245kg
|
|
|
Milling drilling head
|
|
|
|
Drilling capacity
|
20mm
|
|
|
End milling capacity
|
16mm
|
|
|
Face milling capacity
|
63mm
|
|
|
Spindle travel
|
50mm
|
|
|
T-slot width
|
10mm
|
|
|
Spindle speed range
|
50-2250rpm
|
|
|
Motor power
|
600W
|
|
|
Voltage
|
as your requirements
|
|
Details Images
machine foot stand is optional
3-axis SINO DRO is optional
