Quick Details
-
Brand Name:
-
ONV
-
Model Number:
-
ONV-POE33016PF-bt, POE33016PF-bt
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
16 port high power IEEE802.3bt POE switch unmanaged POE++ switch
-
PoE Ports:
-
16x 10/100/1000M PoE++ ports
-
PoE Standard:
-
IEEE802.3af/at/bt
-
Forwarding Mode:
-
Store and Forward(Full Wire Speed)
-
Switching Capacity:
-
52Gbps (Non-blocking)
-
Forwarding Rate@64byte:
-
26.78Mpps
-
MAC:
-
8K
-
Buffer Memory:
-
4M
-
Jumbo Frame:
-
9.2K
-
Contact:
-
Lulu, Mob./Wechat: +8613129592007, WhatxApp: +8619876266638
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
48Gbps (Non-blocking)
-
Brand Name:
-
ONV
-
Model Number:
-
ONV-POE33016PF-bt, POE33016PF-bt
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
16 port high power IEEE802.3bt POE switch unmanaged POE++ switch
-
PoE Ports:
-
16x 10/100/1000M PoE++ ports
-
PoE Standard:
-
IEEE802.3af/at/bt
-
Forwarding Mode:
-
Store and Forward(Full Wire Speed)
-
Switching Capacity:
-
52Gbps (Non-blocking)
-
Forwarding Rate@64byte:
-
26.78Mpps
-
MAC:
-
8K
-
Buffer Memory:
-
4M
-
Jumbo Frame:
-
9.2K
-
Contact:
-
Lulu, Mob./Wechat: +8613129592007, WhatxApp: +8619876266638

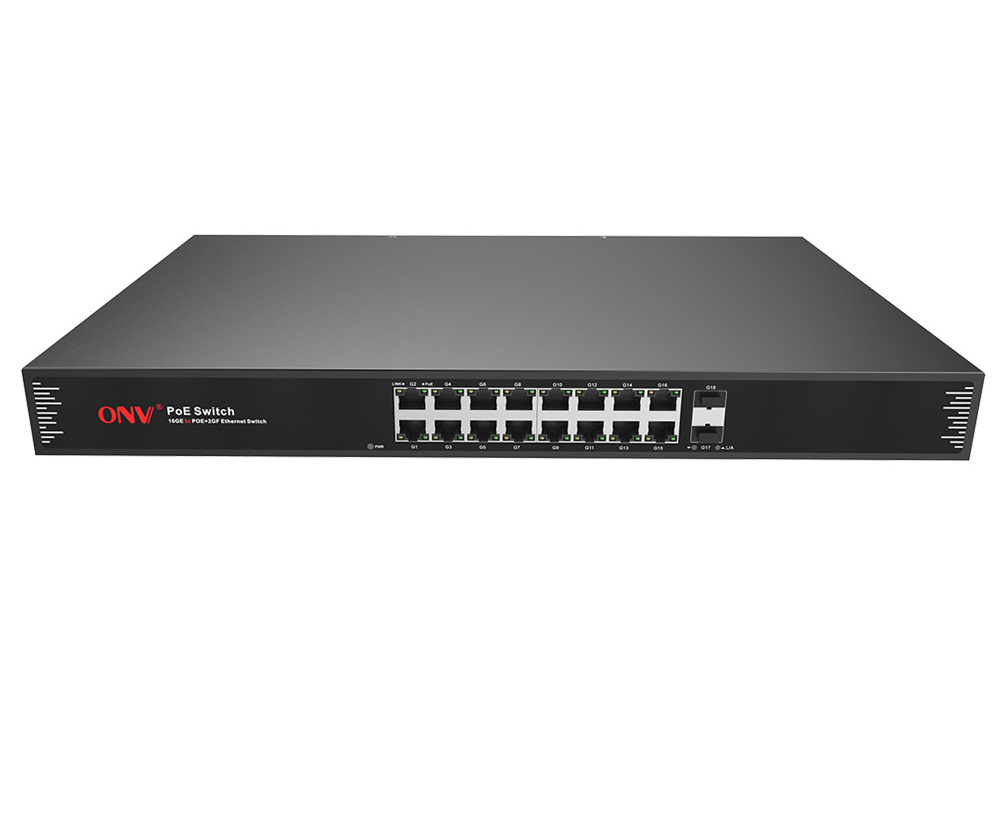

Rack mount 16 port unmanaged POE switch gigabit network fiber switch support IEEE802.3af/at/bt max single port power 90W
(Model No.: ONV-POE33016PF-bt)
Unmanaged PoE fiber switch with 16*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber slot ports. Port 1-16 can support IEEE802.3af/at PoE standard. Support 1U/19 inch rack installation
OVERVIEW
The ONV- POE3 3 0 16 P F -bt is a gigabit bt PoE fiber switch independently developed by ONV. It has 16 *10/100 /1000 Base-T adaptive RJ45 ports and 2*1000M uplink SFP slot ports . Port 1- 16 can support 71W PoE super high power output and backward compatible with the IEEE802.3af/at PoE standard. Single-port PoE power is 9 0 W . As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It provides stable and safe terminals for PTZ network camera , high-power AP, high-power multimedia speaker, and high-power POE lighting, etc. through a network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, parks, shopping malls, scenic spots, hospitals, factory dormitory and small and medium-sized enterprise.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Full gigabit access, g igabit SFP port uplink
- All series support " gigabit Ethernet port and g igabit SFP fiber port " combination, which enables users to flexibly build networking to meet the needs of various scenarios.
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on b ackpressure.
Intelligent PoE p ower s upply
- 16 *10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
- IEEE802.3af/at PoE standard, without damaging non-PoE devices.
- Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
S table a nd r eliable
- C CC,C E, FCC, RoHS.
- Plug and play, no configuration, simple and convenient.
- Low power consumption, galvanized steel casing, The Fan active cooling .
- Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
- The user-friendly panel, it can show the device status through the LED indicator of PWR, Link , PoE.
TECHNICAL SPECIFICATION
|
Model |
ONV-POE33016PF-bt |
|
Interface Characteristics |
|
|
Fixed Port |
16*10/100/1000M bt PoE ports (Data /Power) 2*1000M uplink SFP ports (Data) |
|
Ethernet Port |
10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
SFP Slot Port |
Gigabit SFP optical fiber port, default no include optical modules (optional order single-mode / multi-mode, single fiber/ dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-500M, Single-mode: 1310nm/ 0-40KM, 1550nm/ 0-120KM. |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3u 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
52Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
26.78Mpps |
|
MAC |
8K |
|
Buffer Memory |
4M |
|
Jumbo Frame |
9.2K |
|
LED Indicator |
Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), SFP port: L/A(Green) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1 to 16 @bt PoE and backward compatible with IEEE802.3af/at |
|
Power Supply Pin |
1/2(+)3/6(-) 4/5(+)7/8(-) |
|
Max Power Per Port |
9 0 W, IEEE802.3af/at/bt , When 16 PoE ports are used at the same time, the max average power per port is 71W |
|
Total PWR / Input Voltage |
1200W/(AC100-240V) |
|
Power Consumption |
Standby<25W, Full Load<1200W |
|
Power Supply |
Built-in power supply, AC100 - 240V 50-60Hz 6.6A x 2 |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+80°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
440*290*44.5mm |
|
Net /Gross Weight |
<5.0kg /<5.8kg |
|
Installation |
Desktop,1U/19 inch cabinet installation |
|
Certification & Warranty |
|
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
3 years, lifelong maintenance. |
DIMENSION
APPLICATIONS
