Quick Details
-

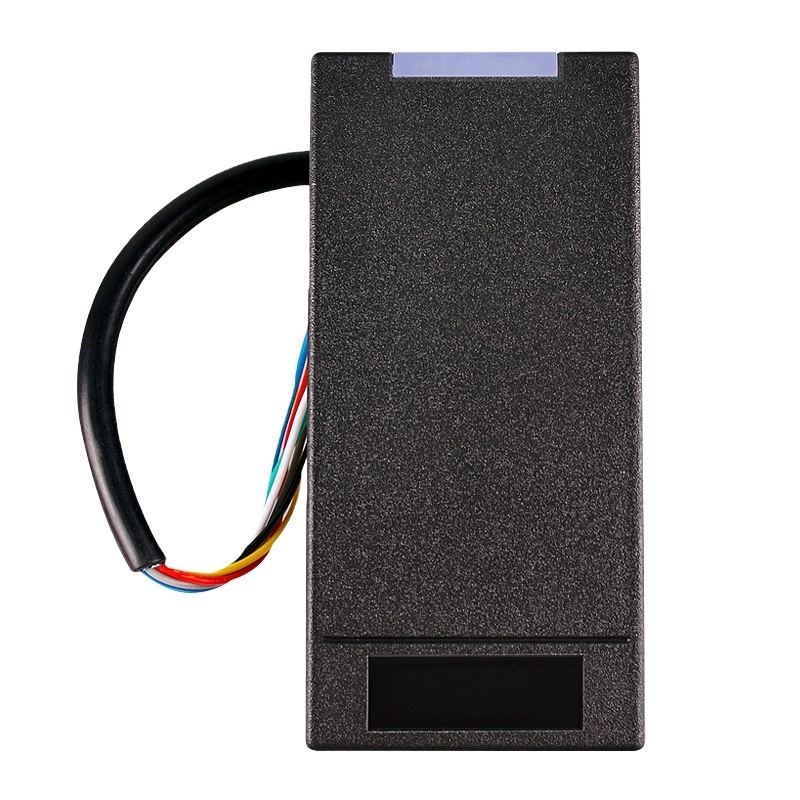

PCD-94:
-
rfid proximity card reader
-
Read Range:
-
PCD-94EM: Up to 10CM, PCD-94MF:Up to 5CM
-
Reading Time (Card):
-
≤300ms
-
Power / Current:
-
DC 6-14V / Max.70mA
-
Input Port:
-
2ea (External LED Control, External Buzzer Control)
-
Output Format:
-
26bit/34bit Wiegand (default)
-
LED Indicator:
-
2 Color LED Indicators(Red and Green)
-
Beeper:
-
Yes
-
Operating Temperature:
-
-20° to +65°C
-
Material:
-
ABS+PC with texture
Quick Details
-
Frequency:
-
125KHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
PCD-94:
-
rfid proximity card reader
-
Read Range:
-
PCD-94EM: Up to 10CM, PCD-94MF:Up to 5CM
-
Reading Time (Card):
-
≤300ms
-
Power / Current:
-
DC 6-14V / Max.70mA
-
Input Port:
-
2ea (External LED Control, External Buzzer Control)
-
Output Format:
-
26bit/34bit Wiegand (default)
-
LED Indicator:
-
2 Color LED Indicators(Red and Green)
-
Beeper:
-
Yes
-
Operating Temperature:
-
-20° to +65°C
-
Material:
-
ABS+PC with texture
waterproof ip68 card reader rfid reader access control card reader for wiegand access controller
Hot selling products
Introduction:
PCD-94E: 125KHz Proximity card reader(Default)
PCD-94M: 13.56MHz 13.56mhz card reader(Optional)
Features:
> 125KHz Proximity /13.56MHz 13.56mhz Card Reader
> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
> 26/34bit Wiegand (default)
> Easy to install on Metal Door Frame or Mullion
> External LED Control
> External Buzzer Control
> Indoor / Outdoor Operation
> Solid Epoxy Potted
> Waterproof IP65
> Reverse Polarity Protection
|
Specification |
|
|
Model |
PCD-94EM (PCD-94MF optional) |
|
Read Range |
PCD-94EM: Up to 10CM, PCD-94MF:Up to 5CM |
|
Reading Time (Card) |
≤300ms |
|
Power / Current |
DC 6-14V / Max.70mA |
|
Input Port |
2ea (External LED Control, External Buzzer Control) |
|
Output Format |
26bit/34bit Wiegand (default) |
|
LED Indicator |
2 Color LED Indicators(Red and Green) |
|
Beeper |
Yes |
|
Operating Temperature |
-20° to +65°C |
|
Operating Humidity |
10% to 90% relative humidity non-condensing |
|
Color |
Black |
|
Material |
ABS+PC with texture |
|
Dimension(W x H x T)mm |
100X46X20mm |
|
Weight |
50g |
|
Index of Protection |
IP65 |
