High Capacity Construction Quarry Stone Impact Crusher For Ore Limestone Crushing Machine Manufacturers

High Capacity Construction Quarry Stone Impact Crusher For Ore Limestone Crushing Machine Manufacturers

FOB Reference Price: Get Latest Price

≥1 Sets

US $7000

≥2 Sets

US $6000

≥3 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Shunzhi

Dimension(L*W*H):: Varies

Weight:: 1000 KG

Warranty:: 1 Year

Product name:: Sand Making Machine Mine Machinery Large Cement Clinker Impact Crusher

Keyword:: Impact Crushing Machine

Model Number:: PF-1007

Rotor Specification(mm):: 1000 * 700

Feeder Opening Size(mm):: 400 * 730

Feeding size (mm):: ≤250

Power(kw):: 45

Installation:: Engineer Guide

Color:: Customer Requirement

Quick Details

Application:: quarry, mining, metallurgy

Capacity(t/h):: 50-525t/h, 15-60

Place of Origin:: Henan, China

Brand Name:: Shunzhi

Dimension(L*W*H):: Varies

Weight:: 1000 KG

Warranty:: 1 Year

Product name:: Sand Making Machine Mine Machinery Large Cement Clinker Impact Crusher

Keyword:: Impact Crushing Machine

Model Number:: PF-1007

Rotor Specification(mm):: 1000 * 700

Feeder Opening Size(mm):: 400 * 730

Feeding size (mm):: ≤250

Power(kw):: 45

Installation:: Engineer Guide

Color:: Customer Requirement

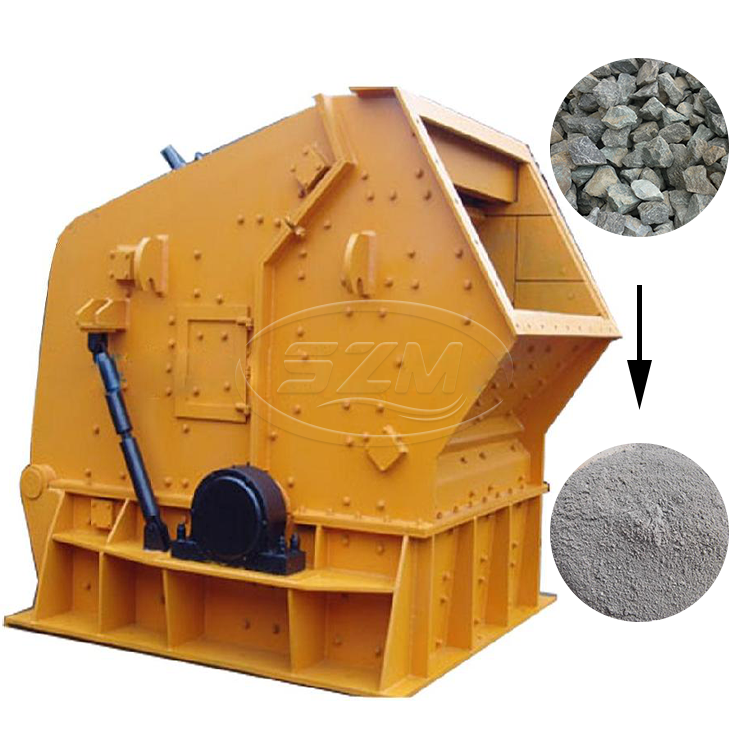

Impact Crusher can crush the large, medium and small size materials (granite, limestone, concrete ,etc.)With max feed size less than 500mm and compression strength less than 350Mpa.

It is widely used in metallurgy, mine, cement, chemical engineering, fire resistant materials, ceramics and other industrial sectors, as well as in the expressway construction, water conservancy project,building crushed stone, and machine-made sand process fields, etc.

MORE COMBINATIONS CAN BE CUSTOMIZED ACCORDING TO CUSTOMER NEEDS

PRODUCT DETAILS

1.Replaceable Wear Liners

2. First Stage Impact Curtain With Anvils

3. Impact Curtain Adjusting Rods

4. Second Stage Impact Curtain With Anvils

5. Hydraulically Operated Crusher Service Door

6. Third Stage Impact Plate 7. Discharge Opening

8. Back-up Bar

9. Wedge Lock Assembly

10. Blow Bar

11.Rotor

SCOPE OF APPLICATION

RIVER PEBBLES
0-10mm

GRANITE
10-20mm

BASALT
20-40mm

MARBLE

40-60mm

TECHNICAL PARAMETERS

Model	Rotor Specification(mm)	Feeder Opening Size(mm)	Feeding size (mm)	Capacity(t/h)	Power(kw)	Overall Dimension (mm)
PF-1007	Φ1000 × 700	400 x 730	≤250	15-60	45	2319 x 1654 x 2558
PF-1010	Φ1000 × 1050	400 x 1080	≤300	50-90	55	2319 x 2001 x 2558
PF-1210	Φ1250 × 1050	450 x 1060	≤300	80-150	90	2585 x 2053 x 2809
PF-1214	Φ1250 × 1400	450 x 1440	≤300	100-200	132	2582 x 2403 x 2809
PF-1315	Φ1320 × 1500	550 x 1530	≤350	130-280	160	2930 x 2761 x 3053
PF-1320	Φ1320 × 2000	610 x 1900	≤500	180-400	220	3224 x 3175 x 2706
PF-1520	Φ1500 x 2000	830 x 2040	≤700	300-550	315-400	3959 x 3564 x 3330
PF-1820	Φ1800 x 2000	1260 x 2040	≤800	600-800	630-710	4400 x 3866 x 4009
PFV-1210	Φ1250 x 1050	450 x 1060	≤300	80-150	90	2582 x 2053 x 2809
PFV-1214	Φ1250 x 1400	450 x 1440	≤300	100-200	132	2582 x 2403 x 2809
PFV-1315	Φ1320 x 1520	550 x 1530	≤350	130-280	185	2930 x 2761 x 3053
PFV-1320	Φ1320 x 2000	610 x 1900	≤500	180-400	250	3224 x 3175 x 2706

OTHER PRODUCTS

Hammer Crusher

Jaw Crusher

Cone Crusher

Mobile Crusher

VSI

Vibrating Screen

AVAILABLE FROM STOCK

DELIVERY SITE

CASE PRESENTATION

ABOUT US

Our factory

Henan Shunzhi Machinery Co.,Ltd. is a modern enterprise specialized in manufacturing mining-equipment which is integrated with research, production, and marketing of the mining equipments. We provide complete sets of mine selection machines, crusher equipment, sand making equipment, and dryer equipment, etc.

WELCOME TO VISIT OUR FACTORY

-- Our customers from over 30 countries and regions.
-- High efficiency,high quality,low cost. We can customize capacity according to customer requirements .
-- We provide engineer to help you with installation, training, our engineers are also available to install overseas if you need.

BUYING PROCESS

AFTER-SALES SERVIECE

Q1. Are you factory or trade company?

A1. We are manufacturer, we also supply trade service.

Q2. What about your price?

A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.

Q3. What payment terms do you accept?

A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.

Q4. How about your delivery time?

A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5: what will you do if the machine is broken down?

A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q6: How do you make our business long-term and good relationship?

A6: 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
