Quick Details
-
Model Number:
-
EZ Series
-
Brand Name:
-
THINKTANK
-
Product name:
-
Pneumatic Globe Type Control Valves
-
Valve type:
-
Globe
-
Body material:
-
A216 Gr. WCB, SS304, SS316, SS316L, CF8M, CF8, Duplex Steel etc
-
Function:
-
Control Flow or Pressure
-
Pressure:
-
150LB, 300LB, 600LB, 900LB, 1500LB
-
Brand:
-
THINKTANK
-
Struction:
-
Two ways
-
Certification:
-
CE,SIL,ISO9001-2015,AAA Credibility Grading Certificate
Quick Details
-
Port Size:
-
DN15-DN400
-
Warranty:
-
18 Months
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
EZ Series
-
Brand Name:
-
THINKTANK
-
Product name:
-
Pneumatic Globe Type Control Valves
-
Valve type:
-
Globe
-
Body material:
-
A216 Gr. WCB, SS304, SS316, SS316L, CF8M, CF8, Duplex Steel etc
-
Function:
-
Control Flow or Pressure
-
Pressure:
-
150LB, 300LB, 600LB, 900LB, 1500LB
-
Brand:
-
THINKTANK
-
Struction:
-
Two ways
-
Certification:
-
CE,SIL,ISO9001-2015,AAA Credibility Grading Certificate

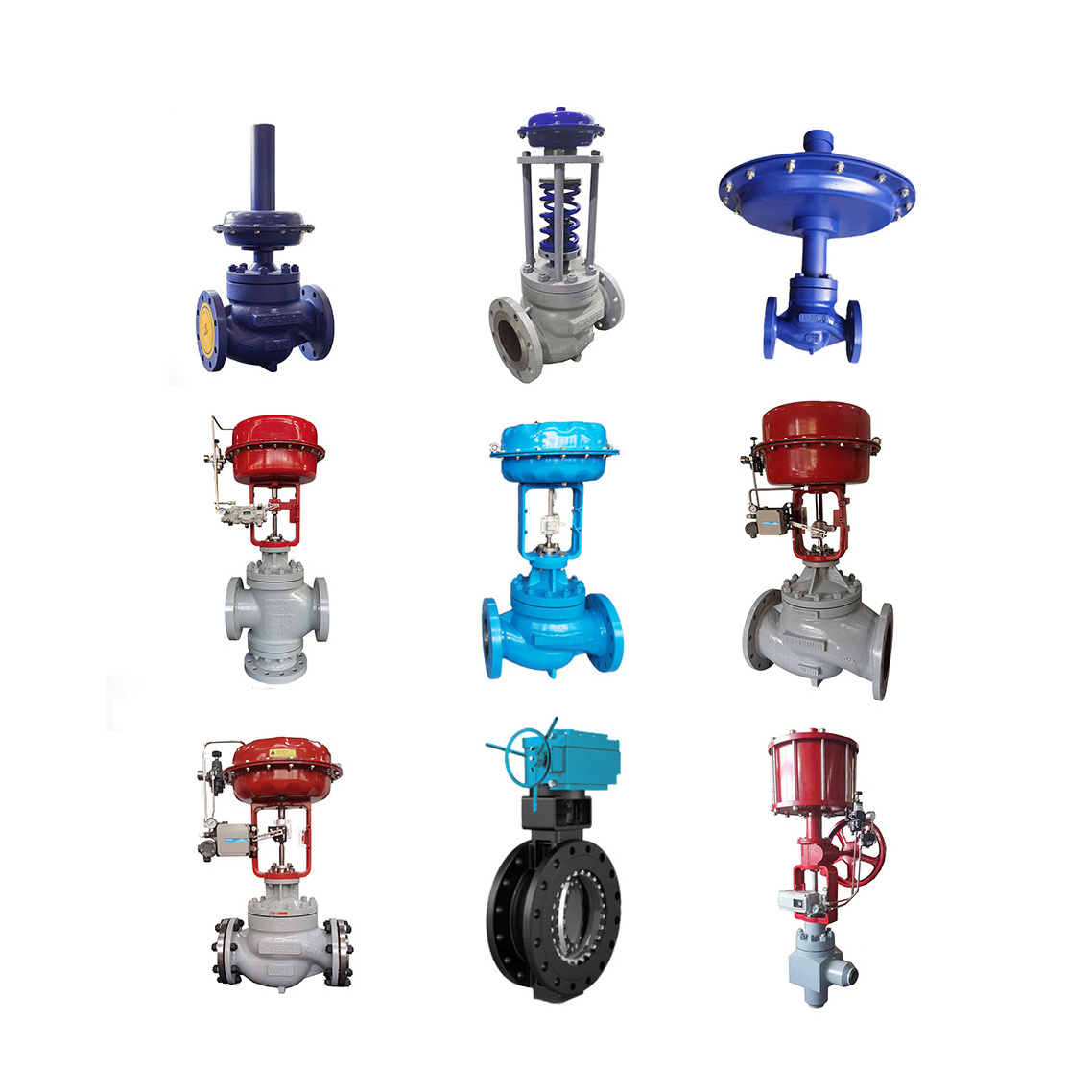

Control Valves
This series is fluid pressure balanced type cage guided high performance control valve of large Cv value, and of excellent dynamic stability. It is suitable for heavy duty services. Only a small operation force can achieve stability control due to the balanced fluid pressure structure on plug. The series can be made with special structure including bellows seal type, steam jacketed type, extended valve cover type to meet a variety of conditions.
Product Description
|
Standard Industry Application
|
|
|
|
|
||||
|
Product Name
|
Size
|
ANSI Class
|
Standard Materials
|
Temperature Range
|
||||
|
Globe Control Valve
|
1/2" to 12"
|
125 to 300
|
Cast Iron, Carbon Steel, Stainless Steel, Monel, Hastelloy, (Special Materials on Request)
|
-325 to 842oF (-196 to 450oC)
|
||||
|
3-Way Control Valve
|
1/2" to 6"
|
150 to 300
|
Carbon Steel, Stainless Steel
|
-325 to 842oF (-196 to 450oC)
|
||||
|
Cryogenic Control Valve
|
1/2" to 10"
|
150 to 900
|
Cast Stainless Steel (A351 CF8)
|
-325 to 149oF (-196 to 65oC)
|
||||
|
Top-Entry Cryogenic Control Valve
|
1" to 6"
|
150 to 600
|
Cast Stainless Steel (A351 CF8)
|
-425 to 149oF (-254 to 65oC
|
||||
|
On/Off Globe Valve
|
1/2" to 4"
|
150 to 300
|
Carbon Steel, Stainless Steel
|
58 to 482oF (-50 to 250oC)
|
||||
|
Heavy Duty Industry Application
|
|
|
|
|
||||
|
Product Name
|
Size
|
ANSI Class
|
Standard Materials
|
Temperature Range
|
||||
|
Heavy Duty Globe Control Valve
|
1/2" to 20"
|
150 to 2500
|
Carbon Steel, Stainless Steel, Monel, Hastelloy, (Special Materials on Request)
|
'-325 to 1022oF (-196 to 550oC)
|
||||
|
High Pressure Control Valve
|
1/2" to 1"
|
150 to 2500
|
Forged Stainless Steel
|
'-325 to 842oF (-196 to 450oC)
|
||||
|
Heavy Duty 3-Way Control Valve
|
1/2" to 20"
|
150 to 2500
|
Carbon Steel, Stainless Steel
|
'-325 to 1022oF (-196 to 550oC)
|
||||
|
Double-Guided Globe Control Valve
|
3" to 20"
|
150 to 2500
|
Carbon Steel, Stainless Steel
|
'-325 to 1022oF (-196 to 550oC)
|
||||
|
Heavy Duty Angle Control Valve
|
1/2" to 20"
|
150 to 2500
|
Carbon Steel, Stainless Steel
|
'-325 to 1022oF (-196 to 550oC)
|
||||
|
Heavy Duty Globe Control Valve
|
1/2" to 8"
|
150 to 900
|
Carbon Steel, Stainless Steel
|
'-325 to 842oF (-196 to 450oC)
|
||||
|
Heavy Duty Angle Control Valve
|
1/2" to 8"
|
150 to 900
|
Carbon Steel, Stainless Steel
|
'-325 to 842oF (-196 to 450oC)
|
||||
|
Microflow Control Valve
|
1/4" to 1"
|
150 to 2500
|
Forged Stainless Steel
|
'-325 to 842oF (-196 to 450oC)
|
||||
|
Globe Control Valve
|
1" to 3"
|
600 to 1500 (and 1700)
|
Cast Steel A352 LCC
|
'-50 to 400oF (-46 to 204oC)
|
||||
|
Heavy Duty Cage Control Valve
|
16" to 32"
|
150 to 900
|
Carbon Steel, Stainless Stee
|
'-50 to 932oF (-46 to 500oC)
|
||||
|
Cage Guided Globe and Angle Valve
|
3/4" to 32"
|
150 to 2500
|
A216 WCC, A217 WCA, A351 CF8M (Other Materials on Reques
|
'-325 to 1292oF (-196 to 700oC)
|
||||
