Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Modo
-
Model Number:
-
4X3C-MAH
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
As customer request
-
Cable Length:
-
/
-
Outlet Size:
-
3-14 inch/As customer request
-
Power:
-
As customer request, Electric
-
Usage:
-
Water
-
Fuel:
-
Diesel
-
Pump Capacity:
-
36-162m3/hr
-
Head:
-
10-45m
-
Speed:
-
1400-2200
-
NPSHr:
-
2-6
-
Pump Casing:
-
Cast Iron
-
Pump impeller:
-
ceramics
Quick Details
-
Application:
-
Mining industry, wastewater treatment
-
Pressure:
-
As customer request, High Pressure
-
Voltage:
-
380/400V
-
Warranty:
-
1 year
-
Brand Name:
-
Modo
-
Model Number:
-
4X3C-MAH
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
As customer request
-
Cable Length:
-
/
-
Outlet Size:
-
3-14 inch/As customer request
-
Power:
-
As customer request, Electric
-
Usage:
-
Water
-
Fuel:
-
Diesel
-
Pump Capacity:
-
36-162m3/hr
-
Head:
-
10-45m
-
Speed:
-
1400-2200
-
NPSHr:
-
2-6
-
Pump Casing:
-
Cast Iron
-
Pump impeller:
-
ceramics
-- Products Description --

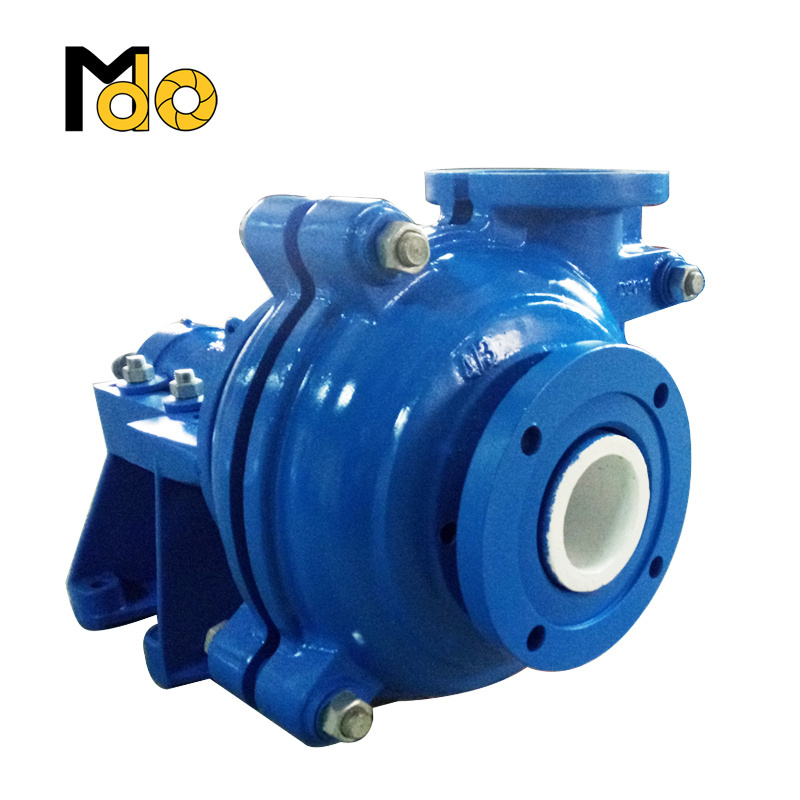

MAH
slurry
pump
The
MAH
series Mineral Processing Heavy Duty Centrifugal Slurry Pump is
designed for the continuous pumping of highly abrasive, high density slurries with minimal maintenance requirements.
The MAH series slurry pump will maintain high efficiencies over the wear life of its components.
-- Details Images --
-- Product Parameters --
|
Type
|
Max. power
|
Capacity
|
Head
|
Speed
|
Max.Eff
|
NPSH
|
Impeller Dia.
|
Max.particle size
|
|
|
(kw)
|
(m³/h)
|
(m)
|
(r/min)
|
(%)
|
(m)
|
(mm)
|
(mm)
|
|
MAH1.5-1
|
15
|
12-28
|
6-65
|
1200-3800
|
40
|
2-4
|
150
|
14
|
|
MAH2-1.5
|
15
|
32-72
|
6-58
|
1200-3200
|
45
|
3.5-8
|
185
|
19
|
|
MAH3-2
|
30
|
39-86
|
12-64
|
1300-2700
|
55
|
4-6
|
215
|
25
|
|
MAH4-3
|
60
|
86-198
|
9-52
|
1000-2200
|
71
|
4-5
|
245
|
28
|
|
MAH6-4
|
120
|
162-360
|
12-56
|
800-1500
|
68
|
5-8
|
365
|
44
|
|
MAH8-6
|
120
|
360-830
|
10-61
|
500-1140
|
72
|
2-9
|
510
|
63
|
|
MAH10-8
|
260
|
612-1368
|
11-61
|
400-850
|
71
|
4-10
|
685
|
76
|
|
MAH12-10
|
560
|
936-1980
|
7-68
|
400-750
|
82
|
1-5
|
760
|
86
|
|
MAH14-12
|
560
|
1260-2772
|
13-63
|
300-600
|
77
|
3-10
|
965
|
90
|
|
Rubber Pumps Material
|
|
|
Metal Pumps Material
|
|
|
||||
|
No
|
Part
|
Material
|
No
|
Part
|
Material
|
||||
|
1
|
Base
|
Cast Iron
|
1
|
Base
|
Cast Iron
|
||||
|
2
|
Shaft
|
4140 High Tensile Steel*
|
2
|
Shaft
|
4140 High Tensile Steel*
|
||||
|
3
|
Bearing Assembly
|
Timken (Cast Iron Body)
|
3
|
Bearing Assembly
|
Timken (Cast Iron Body)
|
||||
|
4
|
Shaft Sleeve
|
420 Stainless Steel
|
4
|
Shaft Sleeve
|
420 Stainless Steel
|
||||
|
5
|
Pump Casing
|
Cast Iron
|
5
|
Pump Casing
|
Cast Iron
|
||||
|
6
|
Frame Plate Liner Insert
|
Rubber
|
6
|
Frame Plate Liner
|
27% Chrome White Iron
|
||||
|
7
|
Cover Plate Liner
|
Rubber
|
7
|
Volute Liner
|
27% Chrome White Iron
|
||||
|
8
|
Impeller
|
Rubber Coated High Tensile Steel
|
8
|
Impeller
|
27% Chrome White Iron
|
||||
|
9
|
Throat Bush
|
Rubber
|
9
|
Throat Bush
|
27% Chrome White Iron
|
||||
|
10
|
Cover Plate
|
Cast Iron
|
10
|
Joint Rings
|
Rubber
|
||||
|
11
|
Stuffing Box
|
Cast Iron
|
11
|
Cover Plate
|
Cast Iron
|
||||
|
12
|
Expeller
|
27% Chrome White Iron
|
12
|
Stuffing Box
|
Cast Iron
|
||||
|
13
|
Expeller Ring
|
Natural Rubber
|
13
|
Expeller
|
27% Chrome White Iron
|
||||
|
14
|
Bolts
|
Zinc Plated Steel
|
14
|
Expeller Ring
|
Natural Rubber
|
||||
|
15
|
O-rings
|
Nitrile Rubber
|
15
|
Bolts
|
Zinc Plated Steel
|
||||
|
16
|
Seals
|
Rubber
|
16
|
O-rings
|
Nitrile Rubber
|
||||
|
17
|
Seals
|
Rubber
|
17
|
Seals
|
Rubber
|
||||
