Quick Details
-
Measurement range:
-
±300 KG (±30 T)
-
Resolution (Min Measurable Value):
-
0.0001 mT
-
DC Accuracy (Displayed Value):
-
± 0.05% of Readings
-
Max/Min/Peak/Valley Value Hold:
-
Threshold Value Setting and Alarm
-
Data Storage/Accessing:
-
Default Zero/ Auto/Manual Mearsurement Range
-
Analogue Output(X\Y\Z):
-
Output Voltage:±3 V F.S.
-
Analogue Connector:
-
BNC- ±3V
-
Additional Influence:
-
Temperature Coefficient:±(0.01%±1 Count)/℃
-
Communication Connector:
-
RS-232/USB/BNC
-
Power Supply:
-
220V,50/60Hz
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
CH
-
Measurement range:
-
±300 KG (±30 T)
-
Resolution (Min Measurable Value):
-
0.0001 mT
-
DC Accuracy (Displayed Value):
-
± 0.05% of Readings
-
Max/Min/Peak/Valley Value Hold:
-
Threshold Value Setting and Alarm
-
Data Storage/Accessing:
-
Default Zero/ Auto/Manual Mearsurement Range
-
Analogue Output(X\Y\Z):
-
Output Voltage:±3 V F.S.
-
Analogue Connector:
-
BNC- ±3V
-
Additional Influence:
-
Temperature Coefficient:±(0.01%±1 Count)/℃
-
Communication Connector:
-
RS-232/USB/BNC
-
Power Supply:
-
220V,50/60Hz
Product Description

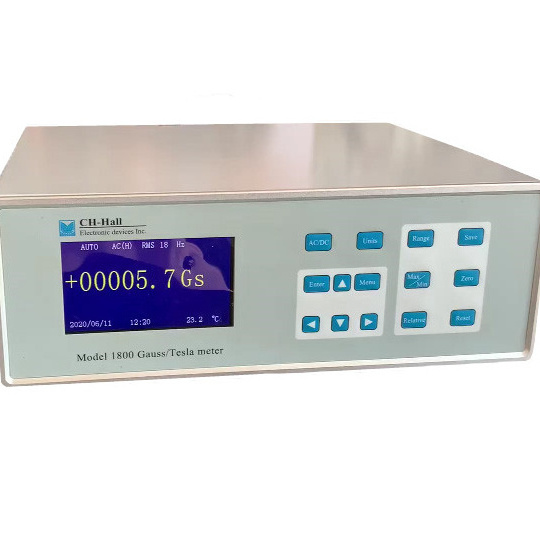

Gauss Meter Model No.:
CH-1800
, which is an all-digital Gauss meter/Tesla meter, and which is the highest precision Hall Effect Gauss Meter around the world, is applied for magnetic field testing applications and solutions which need high-accuracy and high-resolution requirements. This CH-1800 model, which takes full advantage of the latest high-tech digital technology, provides users with the high precision, repeatability and stability required by Magnetic Field Measurement.
This Model CH-1800 characteristics consist of Measurement Range from DC Magnetic Field to 100 KHZ AC Magnetic Field, Automatic Zero Setting, Auto Measurement Range Setting, Hold Mode including Maximum Value, Minimum Value, Peak Value and Valley Value,Simultaneous Measurement and Display of Multiple Parameters, High-Precision Analog Output (±3.0 V), Optional Measurement Unit Displayed as Gs, mT, A/M or Oe, Ports of RS-232C, USB and BNC, VGA Color Graphic Display, Graphic Measurement Display, Gauss Meter Self-Drawing, Full-Menu Operation, 53/4-Digit Reading Resolution, Extremely High Resolution (Minimum Measurable Value) up to 1/600000, especially when measuring high magnetic field, 0.0001 mT change can be read, the Maximum Measurement Range of 300 KG (30 T). The basic accuracy is ±0.05%, and Memory Data Storage and Data Reading can be accessed according to the memory time, Data can
be real-time uploaded, Graphics can be drawn according to the magnetic field strength, and Wired-Mode or Wireless-Mode Remote Control can be selected by the user.
be real-time uploaded, Graphics can be drawn according to the magnetic field strength, and Wired-Mode or Wireless-Mode Remote Control can be selected by the user.
This CH-1800 Gauss Meter, which is matched with Drawing Software and High-Precision Digital Probe with Temperature Compensation, is an integrated machine, of which the functions include the test, storage, communication, drawing, remote-control automation, can achieve high-precision and high-speed digital and analog signal output, can provide high-speed data acquisition function (50-300 times/ second) and can be combined to be the Multi-Point Array Synchronous Magnetic Field Testing System.
Images
Specification
Product Features
|
VGA Color 5
3/4
-Digit Resolution Display Accuracy
|
Basic DC Accuracy: 土0.05% of Readings
|
|
Testing Graphics Display, Local Self-Drawing Function
|
Basic Resolution: 0.0001 mT (Minimum Measurable Value)
|
|
Maximum Value Hold/Minimum Value Hold/
Peak Value Hold/Valley Value Hold/Interface Lock |
Threshold Value Setting (Upper Limit and Lower Limit) and Alarm
|
|
Data Storage (Automatic/Manual Mode)/Data Accessing
|
Default Zero/
Automatic or Manual Measurement Range Setting
|
|
Automatic Probe Calibration/Automatic Memory Operation Mode/Probe Temperature Compensation
|
RS-232C or USB Digital Port/Data Output (Real Time)
/BNC Analog Signal Output/Standard Command Set for User’s Individual Programming Development |
|
Optional Displayed Measurement Unit: Gs, mT, A/M or Oe
|
Zero Setting/Relative Measurement Mode/
Multi-Level Rate Acquisition Function |
|
Communication Baud Rate Adjustment/
Test Terminal Temperature Display |
Optional Matching Zero-Gauss-Sleeve/
Professional Drawing Software of Gauss Meter |
|
Time and Brightness Setting
|
Several Dozen Probe Sizes Available
(Standard Matching 0.8mm Ultra-Thin Probe) |
Technical Parameters
|
Measurement Range:
|
±300 kG /±30 T (Standard); 6 G (600 μT) (Weak Magnetic Field Probe)
|
|
|
|
|||
|
Resolution (Minimum Measurable Value):
|
0.1 μT / 1 mG (Standard); 0.01 μT / 0. I mG (Weak Magnetic Field Probe)
|
|
|
|
|||
|
Accuracy (Displayed Value):
|
DC: ±0.05% of Readings±0.005% of Measurement Scale
|
|
|
|
|||
|
|
AC: ±1 % of Readings ±0.5 % of Measurement Scale (0-30 K)
|
|
|
|
|||
|
Frequency Range:
|
DC Mode: Direct Current
|
|
|
|
|||
|
|
AC Mode (Effective Value): 0 to 100 kHz
|
|
|
|
|||
|
|
Displayed Frequency Range: 1 to 9999 Hz
|
|
|
|
|||
|
Analogue Output (x, y, z):
|
Output Voltage: ±3 V F.S.
|
|
|
|
|||
|
Analogue Connector:
|
BNC-±3 V-±3 V
|
|
|
|
|||
|
Additional Influence:
|
Temperature Coefficient: ± (0.01 % ± 1 Count) / ℃
|
|
|
|
|||
|
Temperature Range:
|
Operation Temperature: 0 ℃ to + 50 ℃
|
|
|
|
|||
|
|
Storage Temperature: - 20 ℃ to + 60 ℃
|
|
|
|
|||
|
Communication Connector:
|
RS-232 / USB / BNC
|
|
|
|
|||
|
Panel Display:
|
SVGA, 320 x 240 Image Element, 3.5" Size Color Screen
|
|
|
|
|||
|
Power Supply:
|
220V, 50/60 Hz
|
|
|
|
|||
|
Probe Option:
|
CH-1800 Gauss Meter can be matched with Standard and High/Low-Temperature-Resistant Transverse Probe, Axial Probe, and Flexible Probe. (See the attached Probe Parameters for details)
|
|
|
|
|||
Accessories & Optional
1. Data Reading Software, Acquisition Card, Connecting Cable, Probe Holder, Zero Gauss Sleeve and Changeable Probe.
2. 3D Drawing Software, 3D Data Angle Acquisition, Various Dimensions Graphics, Chart Drawing and Printing
2. 3D Drawing Software, 3D Data Angle Acquisition, Various Dimensions Graphics, Chart Drawing and Printing
