Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
China
-
Brand Name:
-
MICOE
-
Model Number:
-
SZ58-1800
-
Product name:
-

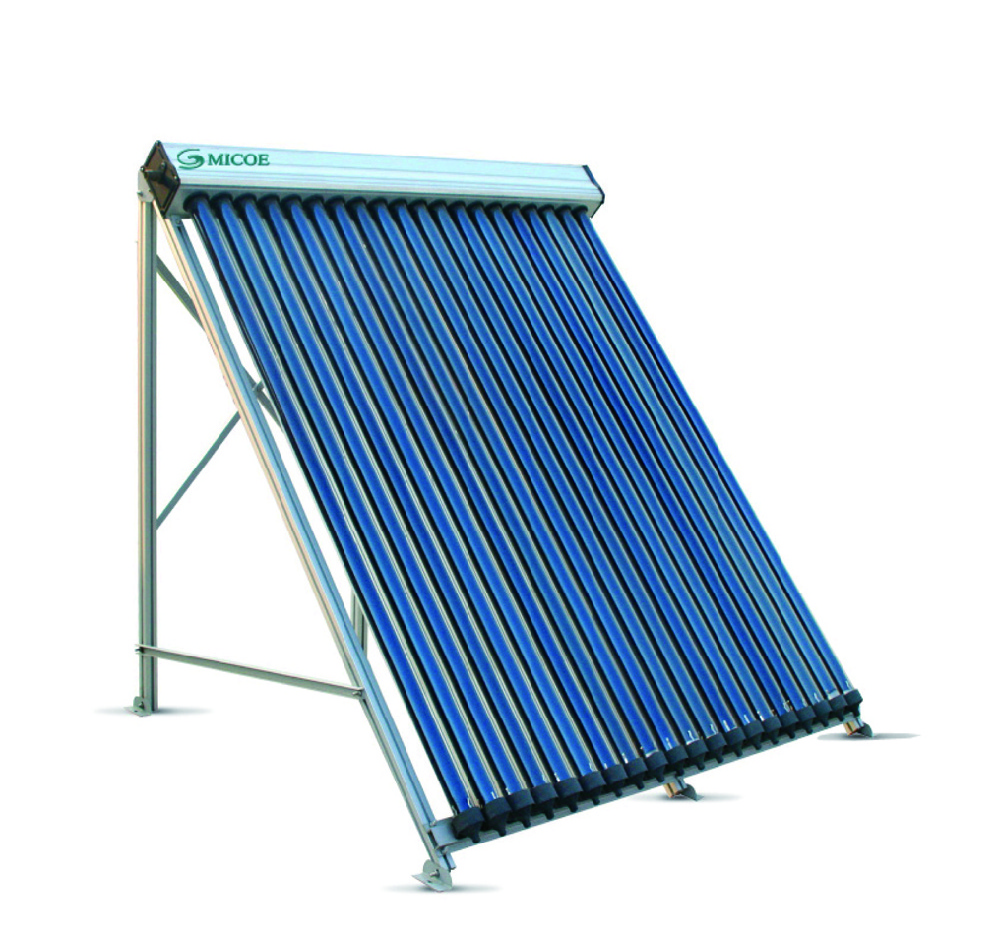

Solar Water Heater
-
Certification:
-
Solar Keymark
-
Heat exchanger:
-
Copper Pipe Coil
Quick Details
-
Warranty:
-
3 years
-
Application:
-
Outdoor, Hotel, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
China
-
Brand Name:
-
MICOE
-
Model Number:
-
SZ58-1800
-
Product name:
-
Solar Water Heater
-
Certification:
-
Solar Keymark
-
Heat exchanger:
-
Copper Pipe Coil
INSULATION
Polyurethane foaming with 40mm thickness
EASY MAINTENANCE
No water in the vacuum tube, convenient to be changed if broken
REASONABLE STRUCTURE
It could be installed on both flat roof and slope roof and the frame could be adjusted.
STEADY PERFORMANCE
Tested by the most advanced SWT solar system testing machine imported from Germany.
HIGH PERFORMANCE
Starting fast,working reliably,saving energy excllent performance
ECONOMICAL
Ideal solar collector for projects because of high efficiency. Topmost Sales across all products in Europe
| Type | Area(m2) | Volume(Liters) | 20GP/40GP/40HC Loading Qty (sets) |
| SZ58/1800-10 | 1.31 | 100 | 140/300/340 |
| SZ58/1800-15 | 1.97 | 150 | 92/200/228 |
| SZ58/1800-20 | 2.62 | 200 | 70/150/170 |
| SZ58/1800-25 | 3.49 | 250 | 56/120/136 |
| SZ58/1800-30 | 3.93 | 300 | 46/100/112 |
Water is rapidly heated by the heat pipe.
There is no water in the vacuum tube, so the tube will not break in winter.
Collector can be combiled with existing pipeline.
The collector can operate even in case of a broken tube. A single tube can be exchanged without
interruption of the heating cycle.
This model is with new manifold and the frame can be adjusted.
Manifold header: Alnico-1.5mm
Frame: Alnico
Distance from tube to tube: 78
Insulation thickness: 40mm
