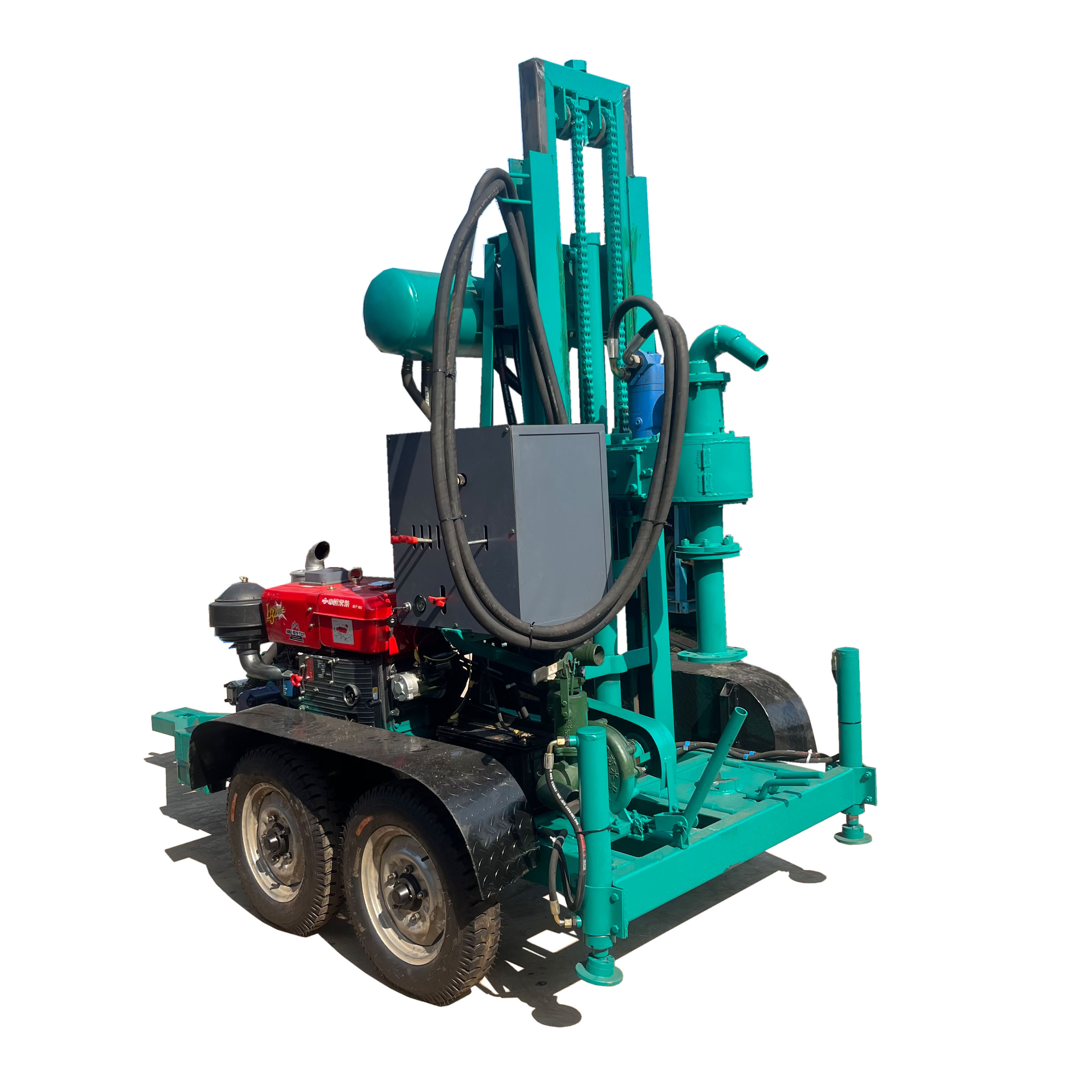

Widely Used AKL-150Y+ Small Portable Mine Drilling Water Well Drilling Rig Machine Borehole Drill Rig Price for Sale

FOB Reference Price: Get Latest Price
≥1 Sets
US $3000
≥2 Sets
US $2000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
2500*1100*2300mm
Weight:
1200 KG
Marketing Type:
New Product 2024
Drilling Diameter:
75-300mm
Drilling Depth:
Max.120m
Mobility:
wheels trailer
Diesel Engine:
32HP Key Start Diesel
Mud Pump:
75m³/h Head: 75m
Capacity of Lifting:
3T
Rotary Speed:
70-90rpm
Height of Tower:
2.5m
Diameter of Drilling:
150-300mm
Drilling Rod Length:
2m/piece
After-sales Service:
Free spare parts, Online support
Feature:
One-man easy to operate

Quick Details

Place of Origin:
Henan, China
Brand Name:
AKL
Voltage:
32HP
Dimension(L*W*H):
2500*1100*2300mm
Weight:
1200 KG
Marketing Type:
New Product 2024
Drilling Diameter:
75-300mm
Drilling Depth:
Max.120m
Mobility:
wheels trailer
Diesel Engine:
32HP Key Start Diesel
Mud Pump:
75m³/h Head: 75m
Capacity of Lifting:
3T
Rotary Speed:
70-90rpm
Height of Tower:
2.5m
Diameter of Drilling:
150-300mm
Drilling Rod Length:
2m/piece
After-sales Service:
Free spare parts, Online support
Feature:
One-man easy to operate
Product Description

Why Choose Us
1 . Factory Store , Large Production Capacity , Provide OEM & ODM SERVICE .

2. 30 Years Drilling Rig Production And Marketing

3.With High Quality , First-Class Services And Reasonable Prices .

4. One year remote warranty service , (parts delivery, fault diagnosis, online guidance).
SPECIFICATION
Typec
AKL-150Y+
Drilling Capacity
Diameter 300mm
30-40m Depth
Diameter 150mm
100-120m Depth
Diesel Engine
32HP Key Start
Capacity of Lifting
3000kg
Mud Pump
4.5kw 75m³/h Head: 73m
Rotary Speed
70-90rpm
Height of Tower
2.5m
Measurement
2.5*1.1*2.3m
Total Weight
1200kgs
Drilling Rod Length
2m/piece
Diameter of Drilling Rod
60mm

Of Water Well Drilling Rig Machine Applications And Features:

1. This diesel hydraulic water well drilling machine occupies a small area ( 1square meters), a height of 2 meters stand, the job can be installed in less than ten minutes, can be used at indoor and outdoor site. 2. The pipe is fully enclosed, shallow layer has no leakage, can ensure the health and safety of drinking water. 3. This portable water well drilling rig research and develop by ourself, apply to different stratum, such as sand, soil, clay, soft rock and so on. 4. All the lifting, loading and unloading drill pipe is mechanized, time-saving, labor-saving and easy to operate. 5. China best quality with competitive price for sale.
Customer Photos

Advantages :

1. One man can operate, auto water flow control function. 2. Double lift chains, with hydraulic oil radiator. 3. Drilling process is stable, no jamming or shaking. 4. Electric start, it can charge the battery automatically. 5. Thicked and strong water swivel, inlet water pipe can change direction, with the screw to fix the inlet water pipe to ensure there is no water leak. 6. hydraulic oil radiator installed at the top near the hydraulic tank, it can cool the hydraulic oil well, also can prevent accidental collision (if installed below, it is easily crushed during transportation)
