Quick Details
-
Model Number:
-
as-25 k30h as-25 f30h as18
-
Brand Name:
-
FRY
-
temperature:
-
-28--+70
-
impact:
-
<5g
-
barometric pressure:
-
72.5-106KPa
-
Level of proection:
-
IP67
Quick Details
-
Port Size:
-
Standard or non-standard
-
Warranty:
-
1 year
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
as-25 k30h as-25 f30h as18
-
Brand Name:
-
FRY
-
temperature:
-
-28--+70
-
impact:
-
<5g
-
barometric pressure:
-
72.5-106KPa
-
Level of proection:
-
IP67
Product Example:
AS25/K30Z AS base code, Rated output torque of 250Nm, single-phase power supply, total travel for 30seconds,direct connect installation, integrated proportional modulating type.
AS, BS quarter travel direct-connected elecrric actuator dimensional drawing
|
type |
A |
B |
C |
E |
E1 |
F |
G |
D1 |
D2 |
D3 |
D4 |
D5 |
J |
K |
H |
H1 |
|
AS-10/25 |
211 |
284 |
325 |
200 |
167 |
155 |
67 |
Φ70f8 |
Φ102 |
Φ28H8 |
M10 |
Φ125 |
80 |
8N9 |
3 |
6.5 |
|
BS-60 |
228 |
337 |
425 |
205 |
171 |
176 |
71 |
Φ100f8 |
Φ140 |
Φ35H9 |
M16 |
Φ210 |
129 |
10N9 |
4 |
0.5 |

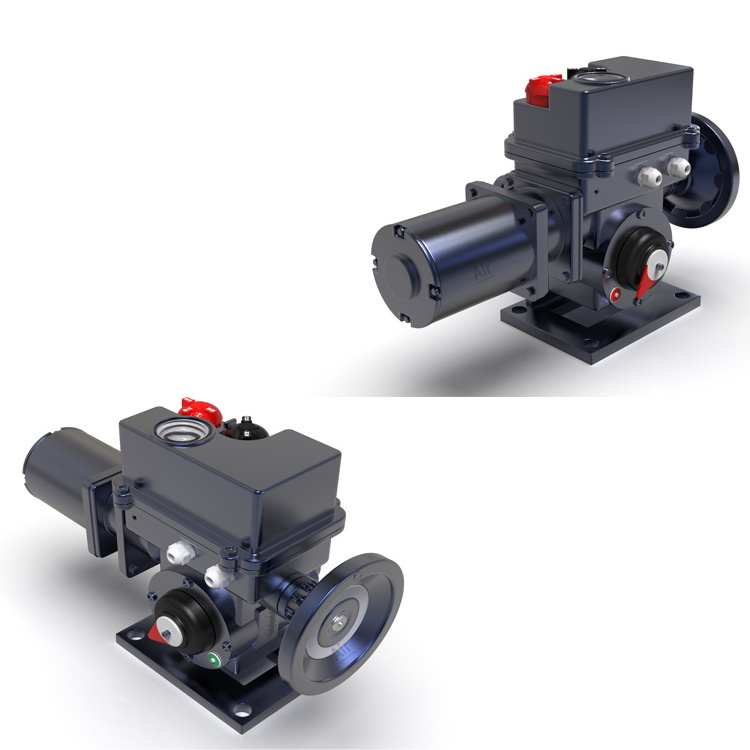

AS, BS foot-mounting quarter travel elecrric actuator dimensional drawing
Shipment Term:
1. Orders processed timely after the payment verification .
2. T erms of Deliver : FOB / CFR / CIF / EXW etc.
3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .
Payment Term:
1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.
2. Advance payment should be made within 3 days of order .
Our company provides you with the following services free of charge:
1. All-round electric actuator and valve technology selection service
2. High-quality post-product maintenance and technical analysis services
3. Accept other related cooperation.
